Oracle 19c rac的搭建
基于18c的rac进行删除再搭建:
http://blog.itpub.net/26736162/viewspace-2220931/
hostnamectl set-hostname raclhr-19c-n1 hostnamectl set-hostname raclhr-19c-n2 #Public IP 192.168.59.52 raclhr-19c-n1 192.168.59.53 raclhr-19c-n2 #Private IP 192.168.2.52 raclhr-19c-n1-priv 192.168.2.53 raclhr-19c-n2-priv #Virtual IP 192.168.59.54 raclhr-19c-n1-vip 192.168.59.55 raclhr-19c-n2-vip #Scan IP 192.168.59.56 raclhr-19c-scan 192.168.59.57 raclhr-19c-scan 192.168.59.58 raclhr-19c-scan mkdir -p /u01/app/19.3.0/grid mkdir -p /u01/app/grid mkdir -p /u01/app/oracle mkdir -p /u01/app/oracle/product/19.3.0/dbhome_1 chown -R grid:oinstall /u01 chown -R oracle:oinstall /u01/app/oracle chmod -R 775 /u01/ mkdir -p /u01/app/oraInventory chown -R grid:oinstall /u01/app/oraInventory chmod -R 775 /u01/app/oraInventory export ORACLE_BASE=/u01/app/grid export ORACLE_HOME=/u01/app/19.3.0/grid export GRID_BASE=$ORACLE_BASE export GRID_HOME=$ORACLE_HOME export PATH=$PATH:$ORACLE_HOME/bin yum install bc gcc gcc-c++ binutils make gdb cmake glibc ksh \ elfutils-libelf elfutils-libelf-devel fontconfig-devel glibc-devel \ libaio libaio-devel libXrender libXrender-devel libX11 libXau sysstat \ libXi libXtst libgcc librdmacm-devel libstdc++ libstdc++-devel libxcb \ net-tools nfs-utils compat-libcap1 compat-libstdc++ smartmontools targetcli \ python python-configshell python-rtslib python-six unixODBC unixODBC-devel grid用户： unzip /soft/LINUX.X64_193000_grid_home.zip -d /u01/app/19.3.0/grid oracle用户： unzip /soft/LINUX.X64_193000_db_home.zip -d /u01/app/oracle/product/19.3.0/dbhome_1 $ORACLE_HOME/runcluvfy.sh stage -pre crsinst -n "raclhr-19c-n1,raclhr-19c-n2" -verbose /u01/app/19.3.0/grid/oui/prov/resources/scripts/sshUserSetup.sh -user grid -hosts "raclhr-19c-n1 raclhr-19c-n2" -advanced exverify –confirm /u01/app/19.3.0/grid/oui/prov/resources/scripts/sshUserSetup.sh -user oracle -hosts "raclhr-19c-n1 raclhr-19c-n2" -advanced exverify -confirm --19c的mgmtdb可以选择不安装 $GRID_HOME/gridSetup.sh -silent -force -noconfig -waitforcompletion -ignorePrereq \ INVENTORY_LOCATION=/u01/app/oraInventory \ oracle.install.option=CRS_CONFIG \ ORACLE_BASE=/u01/app/grid \ oracle.install.asm.OSDBA=asmdba \ oracle.install.asm.OSOPER=asmoper \ oracle.install.asm.OSASM=asmadmin \ oracle.install.crs.config.scanType=LOCAL_SCAN \ oracle.install.crs.config.gpnp.scanName=raclhr-19c-scan \ oracle.install.crs.config.gpnp.scanPort=1521 \ oracle.install.crs.config.ClusterConfiguration=STANDALONE \ oracle.install.crs.config.configureAsExtendedCluster=false \ oracle.install.crs.config.clusterName=raclhr-cluster \ oracle.install.crs.config.gpnp.configureGNS=false \ oracle.install.crs.config.autoConfigureClusterNodeVIP=false \ oracle.install.crs.config.clusterNodes=raclhr-19c-n1:raclhr-19c-n1-vip:HUB,raclhr-19c-n2:raclhr-19c-n2-vip:HUB \ oracle.install.crs.config.networkInterfaceList=ens33:192.168.59.0:1,ens37:192.168.2.0:5,virbr0:192.168.122.0:3 \ oracle.install.asm.configureGIMRDataDG=true \ oracle.install.crs.config.useIPMI=false \ oracle.install.asm.storageOption=ASM \ oracle.install.asmOnNAS.configureGIMRDataDG=false \ oracle.install.asm.SYSASMPassword=lhr \ oracle.install.asm.diskGroup.name=OCR \ oracle.install.asm.diskGroup.redundancy=EXTERNAL \ oracle.install.asm.diskGroup.AUSize=4 \ oracle.install.asm.diskGroup.disksWithFailureGroupNames=/dev/asm-diskc,,/dev/asm-diskd,,/dev/asm-diske, \ oracle.install.asm.diskGroup.disks=/dev/asm-diskc,/dev/asm-diskd,/dev/asm-diske \ oracle.install.asm.diskGroup.diskDiscoveryString=/dev/asm-* \ oracle.install.asm.configureAFD=false \ oracle.install.crs.configureRHPS=false \ oracle.install.crs.config.ignoreDownNodes=false \ oracle.install.config.managementOption=NONE \ oracle.install.crs.rootconfig.executeRootScript=false /u01/app/19.3.0/grid/gridSetup.sh -executeConfigTools -silent -responseFile /u01/app/19.3.0/grid/install/response/grid_2019-08-23_03-14-44PM.rsp $GRID_HOME/bin/kfod disks=asm st=true ds=true cluster=true $ORACLE_HOME/runcluvfy.sh stage -post crsinst -n "raclhr-19c-n1,raclhr-19c-n2" -verbose $ORACLE_HOME/runInstaller -silent -force -noconfig -ignorePrereq \ oracle.install.option=INSTALL_DB_SWONLY \ UNIX_GROUP_NAME=oinstall \ INVENTORY_LOCATION=/u01/app/oraInventory \ ORACLE_BASE=/u01/app/oracle \ ORACLE_HOME=/u01/app/oracle/product/19.3.0/dbhome_1 \ oracle.install.db.InstallEdition=EE \ oracle.install.db.OSDBA_GROUP=dba \ oracle.install.db.OSOPER_GROUP=oper \ oracle.install.db.OSBACKUPDBA_GROUP=backupdba \ oracle.install.db.OSDGDBA_GROUP=dgdba \ oracle.install.db.OSKMDBA_GROUP=kmdba \ oracle.install.db.OSRACDBA_GROUP=racdba \ oracle.install.db.CLUSTER_NODES=raclhr-19c-n1,raclhr-19c-n2 \ oracle.install.db.config.starterdb.type=GENERAL_PURPOSE create diskgroup DATA external redundancy disk '/dev/asm-diski','/dev/asm-diskj','/dev/asm-diskk' ATTRIBUTE 'compatible.rdbms' = '19.0', 'compatible.asm' = '19.0'; create diskgroup FRA external redundancy disk '/dev/asm-diskl','/dev/asm-diskm','/dev/asm-diskn' ATTRIBUTE 'compatible.rdbms' = '19.0', 'compatible.asm' = '19.0'; srvctl start diskgroup -diskgroup data srvctl start diskgroup -diskgroup fra alter diskgroup all mount; dbca -silent -ignorePreReqs -ignorePrereqFailure -createDatabase -templateName General_Purpose.dbc -responseFile NO_VALUE \ -gdbname rac19c -sid rac19c \ -createAsContainerDatabase TRUE \ -sysPassword lhr -systemPassword lhr -pdbAdminPassword lhr -dbsnmpPassword lhr \ -datafileDestination '+DATA' -recoveryAreaDestination '+FRA' \ -storageType ASM \ -characterset AL32UTF8 \ -sampleSchema true \ -totalMemory 1024 \ -databaseType MULTIPURPOSE \ -emConfiguration none \ -nodeinfo raclhr-19c-n1,raclhr-19c-n2 -------------------- 19c的MGMTDB是可选的 1.完成CDB的创建 create diskgroup MGMT external redundancy disk '/dev/asm-diskf','/dev/asm-diskg','/dev/asm-diskh' ATTRIBUTE 'compatible.rdbms' = '19.0', 'compatible.asm' = '19.0'; /u01/app/19.3.0/grid/bin/dbca -silent -createDatabase -createAsContainerDatabase true -templateName MGMTSeed_Database.dbc -sid -MGMTDB -gdbName _mgmtdb -storageType ASM -diskGroupName MGMT -datafileJarLocation /u01/app/19.3.0/grid/assistants/dbca/templates -characterset AL32UTF8 -autoGeneratePasswords -skipUserTemplateCheck 2.完成pdb的创建 mgmtca -local
其它请参考: https://blog.csdn.net/luis_ora/article/details/90054248
Oracle 19C RAC 静默(silent)安装on RHEL7.x 一、安装准备 1.1.RHEL版本及IP规划 1.1.1.OS版本信息[root@localhost ~]# cat /etc/redhat-release Red Hat Enterprise Linux Server release 7.6 (Maipo) [root@localhost ~]# uname -r 3.10.0-957.el7.x86_641.1.2.IP规划 主机 Public VIP Scanip Private ydb01 192.168.10.91 192.168.10.93 192.168.10.95 172.16.16.91/92 ydb02 192.168.10.92 192.168.10.94 192.168.10.95 172.16.16.93/94 2.硬件检查 1.2.1.硬盘空间检查
/tmp目录大小至少：1GB 安装Grid Infrastracture所需空间：12GB 安装Oracle Database所需空间：7.3GB 此外安装过程中分析、收集、跟踪文件所需空间：10GB 建议总共至少100GB（此处不包含ASM或NFS的空间需求） # df -h1.2.2.内存检查
内存大小：至少8GB Swap大小： 当内存为4GB-16GB时，Swap需要大于等于系统内存。 当内存大于16GB时，Swap等于16GB即可。 # grep MemTotal /proc/meminfo # grep SwapTotal /proc/meminfo1.3.创建用户和组
创建用户和组,用户uid和组gid所有节点需要相同。
1.3.1.添加用户和用户组/usr/sbin/groupadd -g 50001 oinstall /usr/sbin/groupadd -g 50002 dba /usr/sbin/groupadd -g 50003 oper /usr/sbin/groupadd -g 50004 backupdba /usr/sbin/groupadd -g 50005 dgdba /usr/sbin/groupadd -g 50006 kmdba /usr/sbin/groupadd -g 50007 asmdba /usr/sbin/groupadd -g 50008 asmoper /usr/sbin/groupadd -g 50009 asmadmin /usr/sbin/groupadd -g 50010 racdba /usr/sbin/useradd -u 50011 -g oinstall -G dba,asmdba,asmoper,asmadmin,racdba grid /usr/sbin/useradd -u 50012 -g oinstall -G dba,oper,backupdba,dgdba,kmdba,asmdba,racdba oracle echo "oracle" | passwd --stdin oracle echo "oracle" | passwd --stdin grid
常见用户组说明
组 角色 权限 oinstall 安装和升级oracle软件 dba sysdba 创建、删除、修改、启动、关闭数据库，切换日志归档模式，备份恢复数据库 oper sysoper 启动、关闭、修改、备份、恢复数据库，修改归档模式 asmdba sysdba自动存储管理 管理ASM实例 asmoper sysoper自动存储管理 启动、停止ASM实例 asmadmin sysasm 挂载、卸载磁盘组，管理其他存储设备 backupdba sysbackup 启动关闭和执行备份恢复（12c） dgdba sysdg 管理Data Guard（12c） kmdba syskm 加密管理相关操作 racdba rac管理 1.3.2.创建安装目录# mkdir /opt/oracle # mkdir /opt/oracle/dbbase # mkdir /opt/oracle/gbase # mkdir /opt/oracle/ghome # mkdir /opt/oracle/oraInventory # chown -R grid:oinstall /opt/oracle # chown -R oracle:oinstall /opt/oracle/dbbase # chmod -R g+w /opt/oracle1.3.3.
vi /etc/fstab tmpfs /dev/shm tmpfs defaults,size=10g 0 0 mount -o remount /dev/shm [root@ydb01 ~]# df -h Filesystem Size Used Avail Use% Mounted on /dev/sda2 268G 16G 253G 6% / devtmpfs 7.9G 0 7.9G 0% /dev tmpfs 10G 0 10G 0% /dev/shm tmpfs 7.9G 13M 7.9G 1% /run tmpfs 7.9G 0 7.9G 0% /sys/fs/cgroup tmpfs 1.6G 12K 1.6G 1% /run/user/42 tmpfs 1.6G 0 1.6G 0% /run/user/0 [root@ydb01 ~]#1.3.4.修改用户环境变量
vi /home/oracle/.bash_profile
export ORACLE_BASE=/opt/oracle/dbbase
export ORACLE_HOME=$ORACLE_BASE/19c/db_1
export ORACLE_SID=emrep
export PATH=$ORACLE_HOME/bin:$PATH
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:$LD_LIBRARY_PATH
export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:$ORACLE_HOME/oracm/lib
export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:/lib:/usr/lib:/usr/local/lib
umask 0022
# export DISPLAY=0.0.0.0:0.0
export NLS_LANG=AMERICAN_AMERICA.AL32UTF8
export LC_ALL=en_US.UTF-8
vi /home/grid/.bash_profile
export ORACLE_BASE=/opt/oracle/gbase
export ORACLE_HOME=/opt/oracle/ghome
export GI_HOME=$ORACLE_HOME
export PATH=$ORACLE_HOME/bin:$PATH
export ORACLE_SID=+ASM1
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:$LD_LIBRARY_PATH
export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:$ORACLE_HOME/oracm/lib
export LD_LIBRARY_PATH=${LD_LIBRARY_PATH}:/lib:/usr/lib:/usr/local/lib
umask 0022
# export DISPLAY=0.0.0.0:0.0
export NLS_LANG=AMERICAN_AMERICA.AL32UTF8
export LC_ALL=en_US.UTF-8
1.4.主机名与hosts
1.4.1.修改主机名
# hostname # hostnamectl --static set-hostname ydb011.4.2.添加Hosts解析
# vi /etc/hosts #Public 192.168.10.91 ydb01.localdomain ydb01 192.168.10.92 ydb02.localdomain ydb02 #Virtual 192.168.10.93 ydb01-vip.localdomain ydb01-vip 192.168.10.94 ydb01-vip.localdomain ydb02-vip #Private 172.16.16.91 ydb01-priv1.localdomain ydb01-priv1 172.16.16.92 ydb01-priv2.localdomain ydb01-priv2 172.16.16.93 ydb02-priv1.localdomain ydb02-priv1 172.16.16.94 ydb02-priv2.localdomain ydb02-priv2 #Scanip 192.168.10.95 ydb-scan.localdomain ydb-scan1.4.3.关闭ZEROCONF
echo "NOZEROCONF=yes" >>/etc/sysconfig/network
- 1
vi /etc/security/limits.conf #for oracle 19c rac @Yong @20190509 grid soft nproc 16384 grid hard nproc 65536 grid soft nofile 32768 grid hard nofile 65536 grid soft stack 32768 grid hard stack 65536 grid soft memlock -1 grid hard memlock -1 oracle soft nproc 16384 oracle hard nproc 65536 oracle soft nofile 32768 oracle hard nofile 65536 oracle soft stack 32768 oracle hard stack 65536 oracle soft memlock -1 oracle hard memlock -1 vi /etc/pam.d/login #for oracle 19c rac @Yong @20190509 session required pam_limits.so1.6.防火墙与Selinux 1.6.1.关闭selinux
sed -i "s/SELINUX=enforcing/SELINUX=disabled/" /etc/selinux/config
systemctl stop firewalld systemctl disable firewalld1.7.设置OS内核参数
vi /etc/sysctl.conf #for oracle 19c rac @Yong @20190509 ####fs setting fs.aio-max-nr = 4194304 fs.file-max = 6815744 ####kernel setting kernel.shmall = 4194304 kernel.shmmax = 16106127360 kernel.shmmni = 4096 kernel.sem = 250 32000 100 128 kernel.panic_on_oops = 1 kernel.panic = 10 #### Net Setting net.ipv4.ip_local_port_range = 9000 65500 net.core.rmem_default = 262144 net.core.rmem_max = 4194304 net.core.wmem_default = 262144 net.core.wmem_max = 4194304 ##TCP Cache Setting net.ipv4.tcp_moderate_rcvbuf=1 net.ipv4.tcp_rmem = 4096 87380 4194304 net.ipv4.tcp_wmem = 4096 16384 4194304 net.ipv4.conf.ens36.rp_filter = 2 net.ipv4.conf.ens35.rp_filter = 2 net.ipv4.conf.ens34.rp_filter = 1 ####Memory Setting vm.vfs_cache_pressure=200 vm.swappiness=10 vm.min_free_kbytes=102400 #vm.nr_hugepages=101.8.安装必要的rpm包 1.8.1.配置本地yum源
[root@localhost ~]# df -h Filesystem Size Used Avail Use% Mounted on /dev/sda2 268G 4.3G 264G 2% / devtmpfs 7.9G 0 7.9G 0% /dev tmpfs 7.9G 0 7.9G 0% /dev/shm tmpfs 7.9G 13M 7.9G 1% /run tmpfs 7.9G 0 7.9G 0% /sys/fs/cgroup tmpfs 1.6G 56K 1.6G 1% /run/user/0 /dev/sr0 4.2G 4.2G 0 100% /run/media/root/RHEL-7.6 Server.x86_64 vi /etc/yum.repos.d/rhel-iso.repo [ISO-DVD] name=Red Hat Enterprise Linux $releasever - $basearch - Source baseurl=file:///run/media/root/RHEL-7.6\ Server.x86_64/ enabled=1 gpgcheck=0
如果没有光驱可以将RHEL的安装ISO文件上传到服务器上，然后通过下列命令挂载ISO
mkdir /mnt/rhel76iso mount -o loop -t iso9660 /root/rhel-server-7.6-x86_64-dvd.iso /mnt/rhel76iso vi /etc/yum.repos.d/rhel-iso.repo [ISO-DVD] name=Red Hat Enterprise Linux $releasever - $basearch - Source baseurl=file:///mnt/rhel76iso enabled=1 gpgcheck=01.8.2.安装rpm包
yum install bc gcc gcc-c++ binutils make gdb cmake glibc ksh \ elfutils-libelf elfutils-libelf-devel fontconfig-devel glibc-devel \ libaio libaio-devel libXrender libXrender-devel libX11 libXau sysstat \ libXi libXtst libgcc librdmacm-devel libstdc++ libstdc++-devel libxcb \ net-tools nfs-utils compat-libcap1 compat-libstdc++ smartmontools targetcli \ python python-configshell python-rtslib python-six unixODBC unixODBC-devel
由于RHEL7 缺失compat-libstdc+±33包，需要单独下载安装
wget ftp://ftp.pbone.net/mirror/ftp5.gwdg.de/pub/opensuse/repositories/home:/matthewdva:/build:/RedHat:/RHEL-7/complete/x86_64/compat-libstdc++-33-3.2.3-71.el7.x86_64.rpm yum localinstall compat-libstdc++-33-3.2.3-71.el7.x86_64.rpm1.9. ASM磁盘初始化
如果不部署mgmtdb,3块5G的磁盘用于OCR和voting disk即可，如果部署mgmtdb mgmtdb独立磁盘的情况下，normal冗余需要53G+存储，external冗余需要27G+存储 mgmtdb与ocr及vote disk在同一磁盘组的情况下，normal的磁盘需要56G+存储
本次安装不部署mgmtdb，规划四块存储，3块5G和1块50G,采用udev映射
1.9.1.初始化磁盘[root@ydb01 ~]# echo -e "n\np\n1\n\n\nw" | fdisk /dev/sdb [root@ydb01 ~]# echo -e "n\np\n1\n\n\nw" | fdisk /dev/sdc [root@ydb01 ~]# echo -e "n\np\n1\n\n\nw" | fdisk /dev/sdd [root@ydb01 ~]# echo -e "n\np\n1\n\n\nw" | fdisk /dev/sde1.9.2. udev映射
vi /etc/scsi_id.config options=-g [root@ydb01 ~]# /usr/lib/udev/scsi_id -g -u -d /dev/sdb1 36000c29a5fe67df9fac43441beb4280f [root@ydb01 ~]# /usr/lib/udev/scsi_id -g -u -d /dev/sdc1 36000c29474a249ab2c6f9b2977d040b3 [root@ydb01 ~]# /usr/lib/udev/scsi_id -g -u -d /dev/sdd 36000c2925df7736e997e8e6a89865539 [root@ydb01 ~]# /usr/lib/udev/scsi_id -g -u -d /dev/sdb1 36000c29a5fe67df9fac43441beb4280f [root@ydb01 ~]# /usr/lib/udev/scsi_id -g -u -d /dev/sdc1 36000c29474a249ab2c6f9b2977d040b3 [root@ydb01 ~]# /usr/lib/udev/scsi_id -g -u -d /dev/sdd 36000c2925df7736e997e8e6a89865539 vi /etc/udev/rules.d/99-oracle-asmdevices.rules KERNEL=="sd?1", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$parent", RESULT=="36000c29a5fe67df9fac43441beb4280f", SYMLINK+="asmdisks/asmdisk01", OWNER="grid", GROUP="asmadmin", MODE="0660" KERNEL=="sd?1", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$parent", RESULT=="36000c29474a249ab2c6f9b2977d040b3", SYMLINK+="asmdisks/asmdisk02", OWNER="grid", GROUP="asmadmin", MODE="0660" KERNEL=="sd?1", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$parent", RESULT=="36000c2925df7736e997e8e6a89865539", SYMLINK+="asmdisks/asmdisk03", OWNER="grid", GROUP="asmadmin", MODE="0660" KERNEL=="sd?1", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$parent", RESULT=="36000c2930898d85d2050c12f7eb96ef9", SYMLINK+="asmdisks/asmdisk04", OWNER="grid", GROUP="asmadmin", MODE="0660" [root@ydb01 ~]# partprobe [root@ydb01 ~]# /sbin/partprobe /dev/sdb1 [root@ydb01 ~]# /sbin/partprobe /dev/sdc1 [root@ydb01 ~]# /sbin/partprobe /dev/sdd1 [root@ydb01 ~]# /sbin/partprobe /dev/sde1 [root@ydb01 ~]# ls -alrth /dev/asmdisks/* lrwxrwxrwx 1 root root 7 May 9 16:10 /dev/asmdisks/asmdisk01 -> ../sdb1 lrwxrwxrwx 1 root root 7 May 9 16:10 /dev/asmdisks/asmdisk02 -> ../sdc1 lrwxrwxrwx 1 root root 7 May 9 16:10 /dev/asmdisks/asmdisk03 -> ../sdd1 lrwxrwxrwx 1 root root 7 May 9 16:10 /dev/asmdisks/asmdisk04 -> ../sde11.10.其他优化 1.10.1.关闭THP及NUMA
vi /etc/default/grub 在GRUB_CMDLINE_LINUX添加下列选项，用于关闭THP和NUMA transparent_hugepage=never numa=off 编译并重启主机 On BIOS: ~]# grub2-mkconfig -o /boot/grub2/grub.cfg On UEFI: ~]# grub2-mkconfig -o /boot/efi/EFI/redhat/grub.cfg1.10.2.NTP配置
如果使用CTSS来同步集群间的时间则可以关闭时间同步
systemctl stop chronyd systemctl disable chronyd mv /etc/chrony.conf /etc/chrony.conf.bak1.10.3.禁用avahi
systemctl stop avahi-dnsconfd systemctl stop avahi-daemon systemctl disable avahi-dnsconfd systemctl disable avahi-daemon二. 安装部署Grid 2.1.解压软件
[grid@ydb01 ~]$ cd /opt/software/ [grid@ydb01 software]$ ls -alrth total 5.6G -rwxrwxr-x 1 oracle oinstall 2.7G May 9 11:46 LINUX.X64_193000_grid_home.zip -rwxrwxr-x 1 oracle oinstall 2.9G May 9 11:48 LINUX.X64_193000_db_home.zip drwxr-xr-x. 5 root root 46 May 9 16:33 .. drwxrwxr-x 2 oracle oinstall 80 May 9 16:45 . [grid@ydb01 software]$ unzip LINUX.X64_193000_grid_home.zip -d $ORACLE_HOME2.2.配置互信
$ORACLE_HOME/oui/prov/resources/scripts/sshUserSetup.sh -user grid -hosts "ydb01 ydb02" -advanced -noPromptPassphrase [grid@ydb01 ghome]$ ssh ydb02 date Thu May 9 05:26:35 EDT 2019 [grid@ydb01 ghome]$ ssh ydb02-priv1 date Thu May 9 05:26:38 EDT 2019 [grid@ydb01 ghome]$ ssh ydb02-priv2 date Thu May 9 05:26:41 EDT 2019 [grid@ydb01 ghome]$ ssh ydb01 date Thu May 9 17:25:59 CST 2019 [grid@ydb01 ghome]$ ssh ydb01-priv1 date Thu May 9 17:26:01 CST 2019 [grid@ydb01 ghome]$ ssh ydb01-priv2 date Thu May 9 17:26:04 CST 20192.3.安装前检查
$ORACLE_HOME/runcluvfy.sh stage -pre crsinst -n "ydb01,ydb02" -verbose
..............
..............
..............
Failures were encountered during execution of CVU verification request "stage -pre crsinst".
Verifying Package: cvuqdisk-1.0.10-1 ...FAILED
ydb02: PRVG-11550 : Package "cvuqdisk" is missing on node "ydb02"
ydb01: PRVG-11550 : Package "cvuqdisk" is missing on node "ydb01"
Verifying Time zone consistency ...FAILED
PRVF-5479 : Time zone is not the same on all cluster nodes.
Found time zone "CST-8CDT" on nodes "ydb01".
Found time zone "EST5EDT" on nodes "ydb02".
Verifying resolv.conf Integrity ...FAILED
ydb02: PRVF-5636 : The DNS response time for an unreachable node exceeded
"15000" ms on following nodes: ydb01,ydb02
ydb02: PRVG-10048 : Name "ydb02" was not resolved to an address of the
specified type by name servers "192.168.194.2".
ydb01: PRVF-5636 : The DNS response time for an unreachable node exceeded
"15000" ms on following nodes: ydb01,ydb02
ydb01: PRVG-10048 : Name "ydb01" was not resolved to an address of the
specified type by name servers "192.168.194.2".
Verifying RPM Package Manager database ...INFORMATION
PRVG-11250 : The check "RPM Package Manager database" was not performed because
it needs 'root' user privileges.
Verifying /dev/shm mounted as temporary file system ...FAILED
ydb02: PRVE-0421 : No entry exists in /etc/fstab for mounting /dev/shm
ydb01: PRVE-0421 : No entry exists in /etc/fstab for mounting /dev/shm
CVU operation performed: stage -pre crsinst
Date: May 9, 2019 5:29:53 PM
CVU home: /opt/oracle/ghome/
User: grid
根据检查结果修正操作系统即可
2.4.Grid软件安装安装前需要在两节点上安装cvuqdisk-1.0.10-1.x86_64,软件在￥ORACLE_HOME//cv/rpm/下
${ORACLE_HOME}/gridSetup.sh -ignorePrereq -waitforcompletion -silent \
-responseFile ${ORACLE_HOME}/install/response/gridsetup.rsp \
INVENTORY_LOCATION=/opt/oracle/oraInventory \
SELECTED_LANGUAGES=en,en_GB \
oracle.install.option=CRS_CONFIG \
ORACLE_BASE=/opt/oracle/gbase \
oracle.install.asm.OSDBA=asmdba \
oracle.install.asm.OSASM=asmadmin \
oracle.install.asm.OSOPER=asmoper \
oracle.install.crs.config.scanType=LOCAL_SCAN \
oracle.install.crs.config.gpnp.scanName=ydb-scan \
oracle.install.crs.config.gpnp.scanPort=1521 \
oracle.install.crs.config.ClusterConfiguration=STANDALONE \
oracle.install.crs.config.configureAsExtendedCluster=false \
oracle.install.crs.config.clusterName=ora19c-cluster \
oracle.install.crs.config.gpnp.configureGNS=false \
oracle.install.crs.config.autoConfigureClusterNodeVIP=false \
oracle.install.crs.config.clusterNodes=ydb01:ydb01-vip:HUB,ydb02:ydb02-vip:HUB \
oracle.install.crs.config.networkInterfaceList=ens34:192.168.10.0:1,ens35:172.16.16.0:5,ens36:172.16.16.0:5 \
oracle.install.asm.configureGIMRDataDG=false \
oracle.install.crs.config.useIPMI=false \
oracle.install.asm.storageOption=ASM \
oracle.install.asmOnNAS.configureGIMRDataDG=false \
oracle.install.asm.SYSASMPassword=Oracle_2019 \
oracle.install.asm.diskGroup.name=OCRDG \
oracle.install.asm.diskGroup.redundancy=NORMAL \
oracle.install.asm.diskGroup.AUSize=4 \
oracle.install.asm.diskGroup.disksWithFailureGroupNames=/dev/asmdisks/asmdisk01,,/dev/asmdisks/asmdisk02,,/dev/asmdisks/asmdisk03, \
oracle.install.asm.diskGroup.disks=/dev/asmdisks/asmdisk01,/dev/asmdisks/asmdisk02,/dev/asmdisks/asmdisk03 \
oracle.install.asm.diskGroup.diskDiscoveryString=/dev/asmdisks/* \
oracle.install.asm.configureAFD=false \
oracle.install.asm.monitorPassword=Oracle_2019 \
oracle.install.crs.configureRHPS=false \
oracle.install.crs.config.ignoreDownNodes=false \
oracle.install.config.managementOption=NONE \
oracle.install.config.omsPort=0 \
oracle.install.crs.rootconfig.executeRootScript=false \
安装日志如下，需要root用户执行下列脚本
Launching Oracle Grid Infrastructure Setup Wizard...
[WARNING] [INS-32047] The location (/opt/oracle/oraInventory) specified for the central inventory is not empty.
ACTION: It is recommended to provide an empty location for the inventory.
[WARNING] [INS-13013] Target environment does not meet some mandatory requirements.
CAUSE: Some of the mandatory prerequisites are not met. See logs for details. /tmp/GridSetupActions2019-05-09_05-57-03PM/gridSetupActions2019-05-09_05-57-03PM.log
ACTION: Identify the list of failed prerequisite checks from the log: /tmp/GridSetupActions2019-05-09_05-57-03PM/gridSetupActions2019-05-09_05-57-03PM.log. Then either from the log file or from installation manual find the appropriate configuration to meet the prerequisites and fix it manually.
The response file for this session can be found at:
/opt/oracle/ghome/install/response/grid_2019-05-09_05-57-03PM.rsp
You can find the log of this install session at:
/tmp/GridSetupActions2019-05-09_05-57-03PM/gridSetupActions2019-05-09_05-57-03PM.log

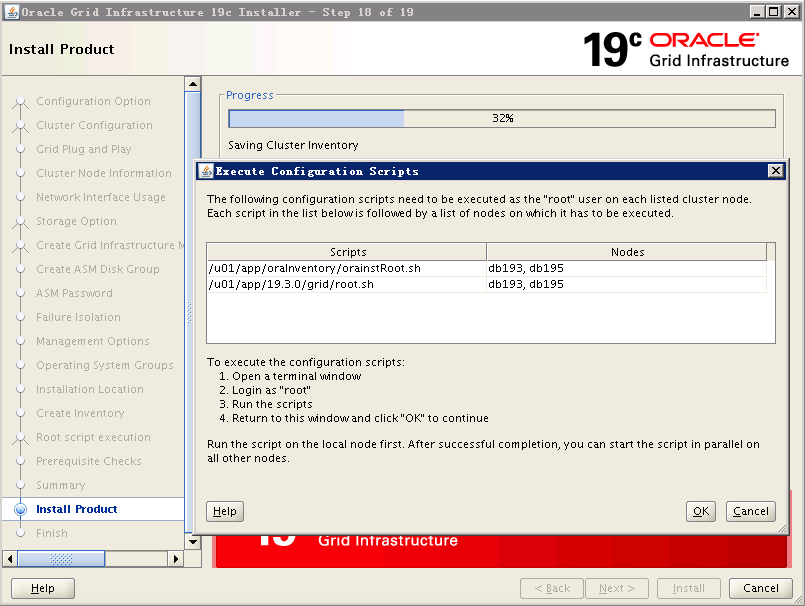

As a root user, execute the following script(s):
1. /opt/oracle/oraInventory/orainstRoot.sh
2. /opt/oracle/ghome/root.sh
Execute /opt/oracle/oraInventory/orainstRoot.sh on the following nodes:
[ydb01, ydb02]
Execute /opt/oracle/ghome/root.sh on the following nodes:
[ydb01, ydb02]
Run the script on the local node first. After successful completion, you can start the script in parallel on all other nodes.
Successfully Setup Software with warning(s).
As install user, execute the following command to complete the configuration.
/opt/oracle/ghome/gridSetup.sh -executeConfigTools -responseFile /opt/oracle/ghome/install/response/gridsetup.rsp [-silent]
Moved the install session logs to:
/opt/oracle/oraInventory/logs/GridSetupActions2019-05-09_05-57-03PM
2.5.运行root.sh脚本
节点1
[root@ydb01 rpm]# /opt/oracle/oraInventory/orainstRoot.sh Changing permissions of /opt/oracle/oraInventory. Adding read,write permissions for group. Removing read,write,execute permissions for world. Changing groupname of /opt/oracle/oraInventory to oinstall. The execution of the script is complete. [root@ydb01 rpm]# /opt/oracle/ghome/root.sh Check /opt/oracle/ghome/install/root_ydb01_2019-05-09_18-08-42-494250060.log for the output of root script [root@ydb01 rpm]#
日志如下
[root@ydb01 ~]# tail -1000f /opt/oracle/ghome/install/root_ydb01_2019-05-09_18-08-42-494250060.log
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= grid
ORACLE_HOME= /opt/oracle/ghome
Copying dbhome to /usr/local/bin ...
Copying oraenv to /usr/local/bin ...
Copying coraenv to /usr/local/bin ...
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /opt/oracle/ghome/crs/install/crsconfig_params
The log of current session can be found at:
/opt/oracle/gbase/crsdata/ydb01/crsconfig/rootcrs_ydb01_2019-05-09_06-08-59PM.log
2019/05/09 18:09:11 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2019/05/09 18:09:11 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2019/05/09 18:09:11 CLSRSC-363: User ignored prerequisites during installation
2019/05/09 18:09:11 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2019/05/09 18:09:14 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2019/05/09 18:09:15 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2019/05/09 18:09:15 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2019/05/09 18:09:15 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2019/05/09 18:09:40 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2019/05/09 18:09:43 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2019/05/09 18:09:45 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2019/05/09 18:09:57 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2019/05/09 18:09:57 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2019/05/09 18:10:04 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2019/05/09 18:10:04 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2019/05/09 18:10:55 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2019/05/09 18:11:02 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2019/05/09 18:12:07 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2019/05/09 18:12:13 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
ASM has been created and started successfully.
[DBT-30001] Disk groups created successfully. Check /opt/oracle/gbase/cfgtoollogs/asmca/asmca-190509PM061247.log for details.
2019/05/09 18:13:46 CLSRSC-482: Running command: '/opt/oracle/ghome/bin/ocrconfig -upgrade grid oinstall'
CRS-4256: Updating the profile
Successful addition of voting disk 017fc3cc7d164fb5bf872733c61934dd.
Successful addition of voting disk 6a40f886828b4f36bfedfadafd0274a1.
Successful addition of voting disk 9f457e5961804fbabf20c7a7a2cc3304.
Successfully replaced voting disk group with +OCRDG.
CRS-4256: Updating the profile
CRS-4266: Voting file(s) successfully replaced
## STATE File Universal Id File Name Disk group
-- ----- ----------------- --------- ---------
1. ONLINE 017fc3cc7d164fb5bf872733c61934dd (/dev/asmdisks/asmdisk03) [OCRDG]
2. ONLINE 6a40f886828b4f36bfedfadafd0274a1 (/dev/asmdisks/asmdisk01) [OCRDG]
3. ONLINE 9f457e5961804fbabf20c7a7a2cc3304 (/dev/asmdisks/asmdisk02) [OCRDG]
Located 3 voting disk(s).
2019/05/09 18:15:27 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2019/05/09 18:16:37 CLSRSC-343: Successfully started Oracle Clusterware stack
2019/05/09 18:16:37 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2019/05/09 18:18:35 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2019/05/09 18:19:13 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
节点2
[root@ydb02 ~]# /opt/oracle/oraInventory/orainstRoot.sh Changing permissions of /opt/oracle/oraInventory. Adding read,write permissions for group. Removing read,write,execute permissions for world. Changing groupname of /opt/oracle/oraInventory to oinstall. The execution of the script is complete. [root@ydb02 ~]# [root@ydb02 ~]# /opt/oracle/ghome/root.sh Check /opt/oracle/ghome/install/root_ydb02_2019-05-09_18-21-00-812198655.log for the output of root script
日志如下
[root@ydb02 ~]# tail -1000f /opt/oracle/ghome/install/root_ydb02_2019-05-09_18-21-00-812198655.log
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= grid
ORACLE_HOME= /opt/oracle/ghome
Copying dbhome to /usr/local/bin ...
Copying oraenv to /usr/local/bin ...
Copying coraenv to /usr/local/bin ...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /opt/oracle/ghome/crs/install/crsconfig_params
The log of current session can be found at:
/opt/oracle/gbase/crsdata/ydb02/crsconfig/rootcrs_ydb02_2019-05-09_06-21-38PM.log
2019/05/09 18:21:44 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2019/05/09 18:21:45 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2019/05/09 18:21:45 CLSRSC-363: User ignored prerequisites during installation
2019/05/09 18:21:45 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2019/05/09 18:21:46 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2019/05/09 18:21:46 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2019/05/09 18:21:47 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2019/05/09 18:21:47 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2019/05/09 18:21:51 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2019/05/09 18:21:51 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2019/05/09 18:22:01 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2019/05/09 18:22:01 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2019/05/09 18:22:04 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2019/05/09 18:22:05 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2019/05/09 18:22:19 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2019/05/09 18:22:54 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2019/05/09 18:22:56 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2019/05/09 18:23:57 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2019/05/09 18:23:59 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
2019/05/09 18:24:11 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2019/05/09 18:25:51 CLSRSC-343: Successfully started Oracle Clusterware stack
2019/05/09 18:25:51 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2019/05/09 18:26:30 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2019/05/09 18:26:41 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
2.6.集群ConfigTools
在节点1执行
[grid@ydb01 ~]$ ${ORACLE_HOME}/gridSetup.sh -silent -executeConfigTools -waitforcompletion \
> -responseFile ${ORACLE_HOME}/install/response/gridsetup.rsp \
> INVENTORY_LOCATION=/opt/oracle/oraInventory \
> SELECTED_LANGUAGES=en,en_GB \
> oracle.install.option=CRS_CONFIG \
> ORACLE_BASE=/opt/oracle/gbase \
> oracle.install.asm.OSDBA=asmdba \
> oracle.install.asm.OSASM=asmadmin \
> oracle.install.asm.OSOPER=asmoper \
> oracle.install.crs.config.scanType=LOCAL_SCAN \
> oracle.install.crs.config.gpnp.scanName=ydb-scan \
> oracle.install.crs.config.gpnp.scanPort=1521 \
> oracle.install.crs.config.ClusterConfiguration=STANDALONE \
> oracle.install.crs.config.configureAsExtendedCluster=false \
> oracle.install.crs.config.clusterName=ora19c-cluster \
> oracle.install.crs.config.gpnp.configureGNS=false \
> oracle.install.crs.config.autoConfigureClusterNodeVIP=false \
> oracle.install.crs.config.clusterNodes=ydb01:ydb01-vip:HUB,ydb02:ydb02-vip:HUB \
> oracle.install.crs.config.networkInterfaceList=ens34:192.168.10.0:1,ens35:172.16.16.0:5,ens36:172.16.16.0:5 \
> oracle.install.asm.configureGIMRDataDG=false \
> oracle.install.crs.config.useIPMI=false \
> oracle.install.asm.storageOption=ASM \
> oracle.install.asmOnNAS.configureGIMRDataDG=false \
> oracle.install.asm.SYSASMPassword=Oracle_2019 \

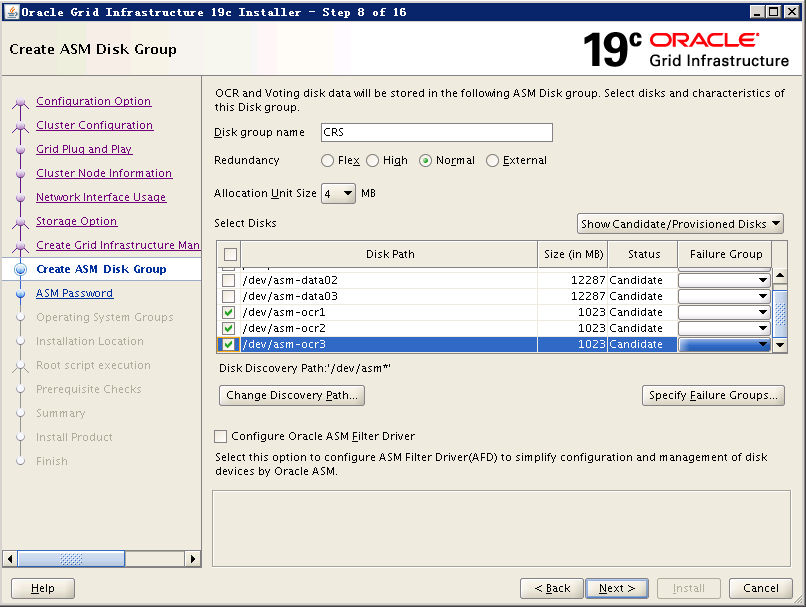

> oracle.install.asm.diskGroup.name=OCRDG \
> oracle.install.asm.diskGroup.redundancy=NORMAL \
> oracle.install.asm.diskGroup.AUSize=4 \
> oracle.install.asm.diskGroup.disksWithFailureGroupNames=/dev/asmdisks/asmdisk01,,/dev/asmdisks/asmdisk02,,/dev/asmdisks/asmdisk03, \
> oracle.install.asm.diskGroup.disks=/dev/asmdisks/asmdisk01,/dev/asmdisks/asmdisk02,/dev/asmdisks/asmdisk03 \
> oracle.install.asm.diskGroup.diskDiscoveryString=/dev/asmdisks/* \
> oracle.install.asm.configureAFD=false \
> oracle.install.asm.monitorPassword=Oracle_2019 \
> oracle.install.crs.configureRHPS=false \
> oracle.install.crs.config.ignoreDownNodes=false \
> oracle.install.config.managementOption=NONE \
> oracle.install.config.omsPort=0 \
> oracle.install.crs.rootconfig.executeRootScript=false \
>
Launching Oracle Grid Infrastructure Setup Wizard...
You can find the logs of this session at:
/opt/oracle/oraInventory/logs/GridSetupActions2019-05-09_06-31-24PM
You can find the log of this install session at:
/opt/oracle/oraInventory/logs/UpdateNodeList2019-05-09_06-31-24PM.log

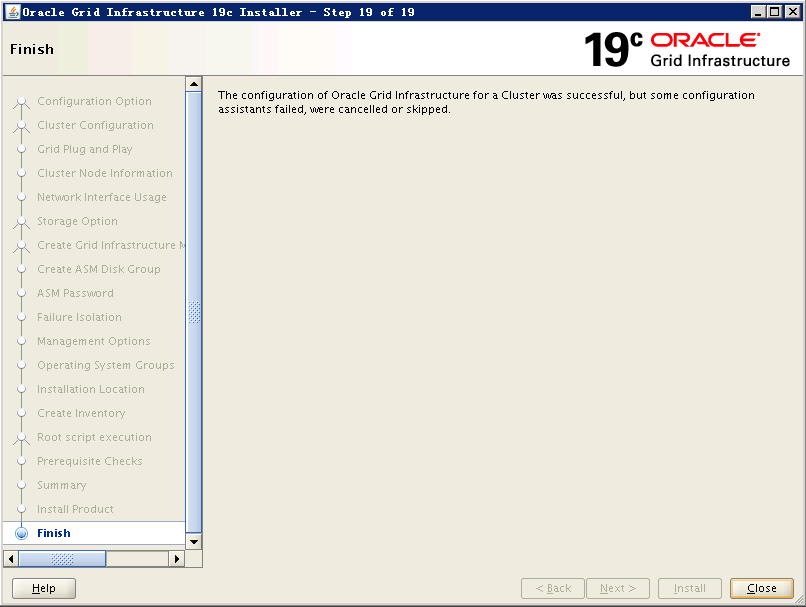

Configuration failed.
[WARNING] [INS-43080] Some of the configuration assistants failed, were cancelled or skipped.
ACTION: Refer to the logs or contact Oracle Support Services.
[grid@ydb01 ~]$
集群状态如下
[grid@ydb01 ~]$ crsctl query crs activeversion
Oracle Clusterware active version on the cluster is [19.0.0.0.0]
[grid@ydb01 ~]$ crsctl check crs
CRS-4638: Oracle High Availability Services is online
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
[grid@ydb01 ~]$ crsctl status res -t
--------------------------------------------------------------------------------
Name Target State Server State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
ONLINE ONLINE ydb01 STABLE
ONLINE ONLINE ydb02 STABLE
ora.chad
ONLINE ONLINE ydb01 STABLE
ONLINE ONLINE ydb02 STABLE
ora.net1.network
ONLINE ONLINE ydb01 STABLE
ONLINE ONLINE ydb02 STABLE
ora.ons
ONLINE ONLINE ydb01 STABLE
ONLINE ONLINE ydb02 STABLE
ora.proxy_advm
OFFLINE OFFLINE ydb01 STABLE
OFFLINE OFFLINE ydb02 STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
1 ONLINE ONLINE ydb01 STABLE
2 ONLINE ONLINE ydb02 STABLE
3 OFFLINE OFFLINE STABLE
ora.LISTENER_SCAN1.lsnr
1 ONLINE ONLINE ydb01 STABLE
ora.OCRDG.dg(ora.asmgroup)
1 ONLINE ONLINE ydb01 STABLE
2 ONLINE ONLINE ydb02 STABLE
3 OFFLINE OFFLINE STABLE
ora.asm(ora.asmgroup)
1 ONLINE ONLINE ydb01 Started,STABLE
2 ONLINE ONLINE ydb02 Started,STABLE
3 OFFLINE OFFLINE STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
1 ONLINE ONLINE ydb01 STABLE
2 ONLINE ONLINE ydb02 STABLE
3 OFFLINE OFFLINE STABLE
ora.cvu
1 ONLINE ONLINE ydb01 STABLE
ora.qosmserver
1 ONLINE ONLINE ydb01 STABLE
ora.scan1.vip
1 ONLINE ONLINE ydb01 STABLE
ora.ydb01.vip
1 ONLINE ONLINE ydb01 STABLE
ora.ydb02.vip
1 ONLINE ONLINE ydb02 STABLE
--------------------------------------------------------------------------------
[grid@ydb01 ~]$
2.7.安装后检查
[grid@ydb01 ~]$ $ORACLE_HOME/runcluvfy.sh stage -post crsinst -n "ydb01,ydb02" -verbose
..............
..............
..............
Post-check for cluster services setup was unsuccessful.
Checks did not pass for the following nodes:
ydb02,ydb01
Failures were encountered during execution of CVU verification request "stage -post crsinst".
Verifying Single Client Access Name (SCAN) ...FAILED
PRVG-11372 : Number of SCAN IP addresses that SCAN "ydb-scan" resolved to did
not match the number of SCAN VIP resources
Verifying DNS/NIS name service 'ydb-scan' ...FAILED
PRVG-1101 : SCAN name "ydb-scan" failed to resolve
CVU operation performed: stage -post crsinst
Date: May 9, 2019 6:37:30 PM
CVU home: /opt/oracle/ghome/
User: grid
[grid@ydb01 ~]$
三.安装部署database
3.1.解压软件
mkdir -p $ORACLE_HOME unzip LINUX.X64_193000_db_home.zip -d $ORACLE_HOME3.2.配置互信
$ORACLE_HOME/oui/prov/resources/scripts/sshUserSetup.sh -user oracle -hosts "ydb01 ydb02" -advanced -noPromptPassphrase [oracle@ydb01 scripts]$ ssh ydb02 date Thu May 9 20:34:44 CST 2019 [oracle@ydb01 scripts]$ ssh ydb02-priv1 date Thu May 9 20:34:51 CST 2019 [oracle@ydb01 scripts]$ ssh ydb02-priv2 date Thu May 9 20:34:58 CST 2019 [oracle@ydb01 scripts]$ ssh ydb01 date Thu May 9 20:35:02 CST 2019 [oracle@ydb01 scripts]$ ssh ydb01-priv1 date Thu May 9 20:35:11 CST 2019 [oracle@ydb01 scripts]$ ssh ydb01-priv2 date Thu May 9 20:35:17 CST 20193.3.安装前检查
[oracle@ydb01 ~]$ /opt/oracle/ghome/runcluvfy.sh stage -pre dbinst -n "ydb01,ydb02" -verbose
......................
......................
......................
Failures were encountered during execution of CVU verification request "stage -pre dbinst".
Verifying resolv.conf Integrity ...FAILED
ydb02: PRVF-5636 : The DNS response time for an unreachable node exceeded
"15000" ms on following nodes: ydb01,ydb02
ydb01: PRVF-5636 : The DNS response time for an unreachable node exceeded
"15000" ms on following nodes: ydb01,ydb02
Verifying Single Client Access Name (SCAN) ...FAILED
PRVG-11372 : Number of SCAN IP addresses that SCAN "ydb-scan" resolved to did
not match the number of SCAN VIP resources
Verifying DNS/NIS name service 'ydb-scan' ...FAILED
PRVG-1101 : SCAN name "ydb-scan" failed to resolve
Verifying Maximum locked memory check ...FAILED
ydb02: PRVE-0042 : Maximum locked memory "HARD" limit when automatic memory
management is enabled is less than the recommended value in the file
"/etc/security/limits.conf" [Expected = "3145728", Retrieved="-1"] on
node "ydb02"
ydb01: PRVE-0042 : Maximum locked memory "HARD" limit when automatic memory
management is enabled is less than the recommended value in the file
"/etc/security/limits.conf" [Expected = "3145728", Retrieved="-1"] on
node "ydb01"
CVU operation performed: stage -pre dbinst
Date: May 9, 2019 8:41:25 PM
CVU home: /opt/oracle/ghome/
User: oracle
3.4.安装database软件
[oracle@ydb01 ~]$ ${ORACLE_HOME}/runInstaller -ignorePrereq -waitforcompletion -silent \
> -responseFile ${ORACLE_HOME}/install/response/db_install.rsp \

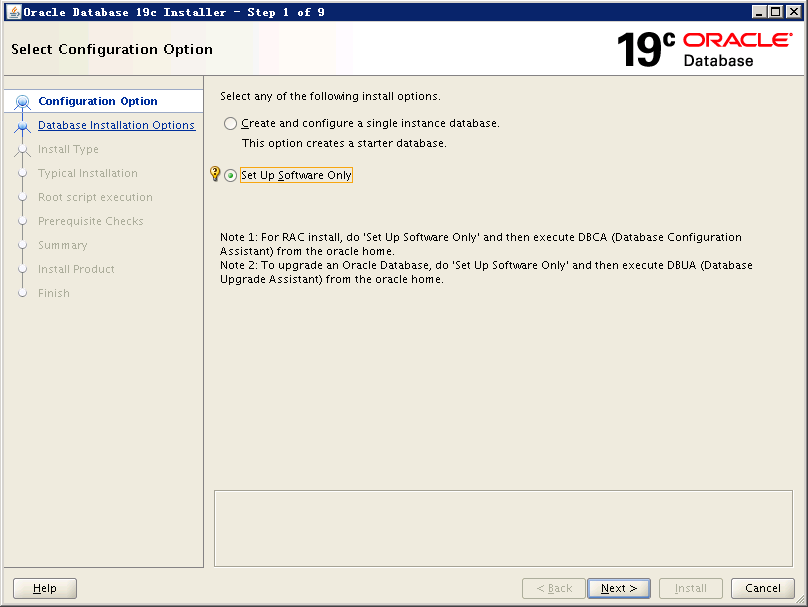

> oracle.install.option=INSTALL_DB_SWONLY \
> ORACLE_HOSTNAME=/opt/oracle/oraInventory \
> UNIX_GROUP_NAME=oinstall \
> INVENTORY_LOCATION=/opt/oracle/oraInventory \
> SELECTED_LANGUAGES=en,en_GB \
> ORACLE_HOME=/opt/oracle/dbbase/19c/db_1 \
> ORACLE_BASE=/opt/oracle/dbbase \

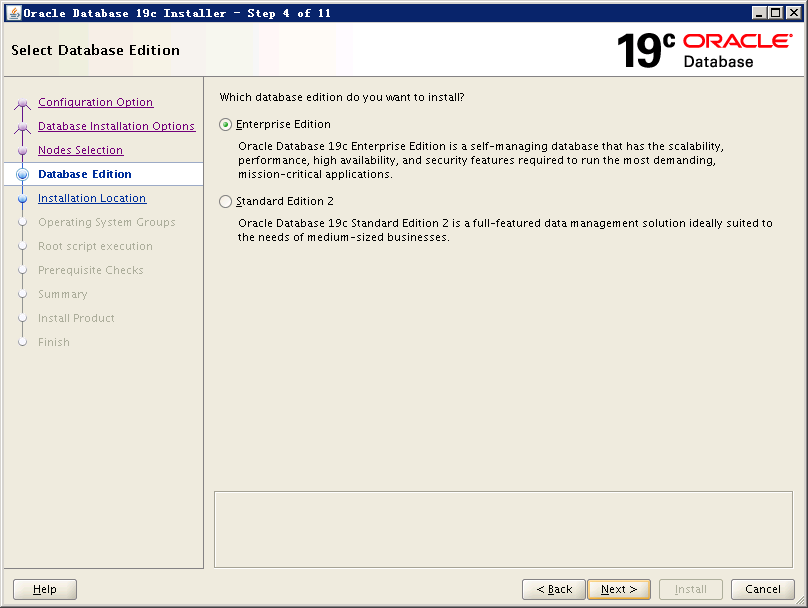

> oracle.install.db.InstallEdition=EE \
> oracle.install.db.OSDBA_GROUP=dba \
> oracle.install.db.OSOPER_GROUP=oper \
> oracle.install.db.OSBACKUPDBA_GROUP=backupdba \
> oracle.install.db.OSDGDBA_GROUP=dgdba \
> oracle.install.db.OSKMDBA_GROUP=kmdba \
> oracle.install.db.OSRACDBA_GROUP=racdba\

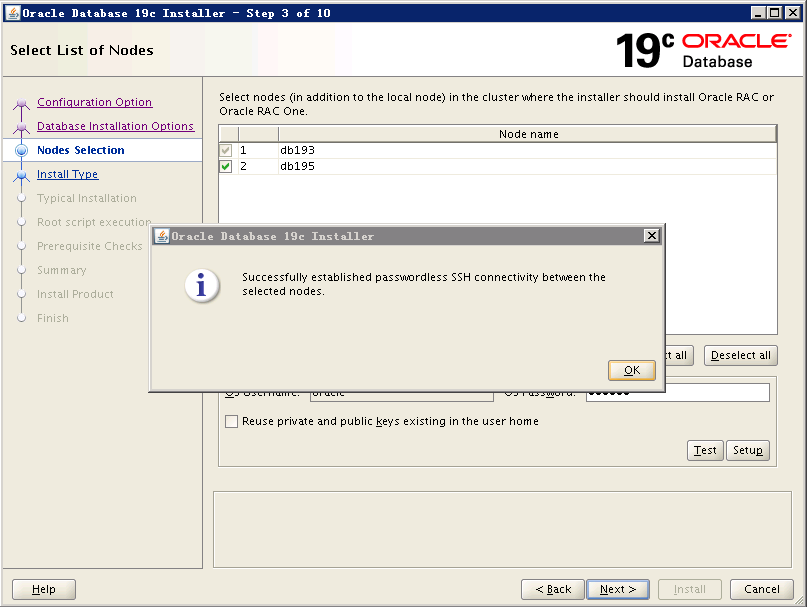

> oracle.install.db.CLUSTER_NODES=ydb01,ydb02 \
> oracle.install.db.isRACOneInstall=false \
> oracle.install.db.rac.serverpoolCardinality=0 \
> oracle.install.db.config.starterdb.type=GENERAL_PURPOSE \
> oracle.install.db.ConfigureAsContainerDB=false \
> SECURITY_UPDATES_VIA_MYORACLESUPPORT=false \
> DECLINE_SECURITY_UPDATES=true \
>
Launching Oracle Database Setup Wizard...
[WARNING] [INS-13013] Target environment does not meet some mandatory requirements.
CAUSE: Some of the mandatory prerequisites are not met. See logs for details. /opt/oracle/oraInventory/logs/InstallActions2019-05-09_09-00-49PM/installActions2019-05-09_09-00-49PM.log
ACTION: Identify the list of failed prerequisite checks from the log: /opt/oracle/oraInventory/logs/InstallActions2019-05-09_09-00-49PM/installActions2019-05-09_09-00-49PM.log. Then either from the log file or from installation manual find the appropriate configuration to meet the prerequisites and fix it manually.
The response file for this session can be found at:
/opt/oracle/dbbase/19c/db_1/install/response/db_2019-05-09_09-00-49PM.rsp
You can find the log of this install session at:
/opt/oracle/oraInventory/logs/InstallActions2019-05-09_09-00-49PM/installActions2019-05-09_09-00-49PM.log
As a root user, execute the following script(s):
1. /opt/oracle/dbbase/19c/db_1/root.sh
Execute /opt/oracle/dbbase/19c/db_1/root.sh on the following nodes:
[ydb01, ydb02]
Successfully Setup Software with warning(s).
[oracle@ydb01 ~]$
四.创建数据库
4.1.普通数据库
dbca -silent -createDatabase \ -templateName General_Purpose.dbc \ -gdbname emrep -responseFile NO_VALUE \ -characterSet AL32UTF8 \ -sysPassword Oracle_2019 \ -systemPassword Oracle_2019 \ -createAsContainerDatabase false \ -databaseType MULTIPURPOSE \ -automaticMemoryManagement false \ -totalMemory 1024 \ -redoLogFileSize 50 \ -emConfiguration NONE \ -ignorePreReqs \ -nodelist ydb01,ydb02 \ -storageType ASM \ -diskGroupName +DATADG \ -asmsnmpPassword Oracle_2019 \ -recoveryAreaDestination NONE \4.2.可插拔数据库
dbca -silent -createDatabase \ -templateName General_Purpose.dbc \ -gdbname emrep -responseFile NO_VALUE \ -characterSet AL32UTF8 \ -sysPassword Oracle_2019 \ -systemPassword Oracle_2019 \ -createAsContainerDatabase true \ -numberOfPDBs 1 \ -pdbName yong \ -pdbAdminPassword Oracle_2019 \ -databaseType MULTIPURPOSE \ -automaticMemoryManagement false \ -totalMemory 1024 \ -redoLogFileSize 50 \ -emConfiguration NONE \ -ignorePreReqs \ -nodelist ydb01,ydb02 \ -storageType ASM \ -diskGroupName +DATADG \ -asmsnmpPassword Oracle_2019 \ -recoveryAreaDestination NONE \
Linux平台 Oracle 19c RAC安装
一、 实施前期准备工作
- 1.1 服务器安装操作系统
- 1.2 Oracle安装介质
- 1.3 共享存储规划
- 1.4 网络规范分配
二、 安装前期准备工作
- 2.1 各节点系统时间校对
- 2.2 各节点关闭防火墙和SELinux
- 2.3 各节点检查系统依赖包安装情况
- 2.4 各节点配置/etc/hosts
- 2.5 各节点创建需要的用户和组
- 2.6 各节点创建安装目录
- 2.7 各节点系统配置文件修改
- 2.8 各节点设置用户的环境变量
Linux平台 Oracle 19c RAC安装指导： Part1： Linux平台 Oracle 19c RAC安装Part1：准备工作 Part2： Linux平台 Oracle 19c RAC安装Part2：GI配置 Part3： Linux平台 Oracle 19c RAC安装Part3：DB配置
本文安装环境： OEL 7.6 + Oracle 19.3 GI & RAC
一、实施前期准备工作 1.1 服务器安装操作系统配置完全相同的两台服务器，安装相同版本的Linux操作系统。留存系统光盘或者镜像文件。 我这里是OEL7.6，系统目录大小均一致。对应OEL7.6的系统镜像文件放在服务器上，供后面配置本地yum使用。
1.2 Oracle安装介质Oracle 19.3 版本2个zip包(总大小6G+,注意空间)： LINUX.X64_193000_grid_home.zip MD5: LINUX.X64_193000_db_home.zip MD5: 这个自己去Oracle官网下载，然后只需要上传到节点1即可。
1.3 共享存储规划从存储中划分出两台主机可以同时看到的共享LUN，3个1G的盘用作OCR和Voting Disk，其余分了3个12G的盘规划做用做数据盘和FRA。 注：19c安装GI时，可以选择是否配置GIMR，且默认不配置，我这里选择不配置，所以无需再给GIMR分配对应空间。
--OEL7使用udev需要给磁盘创建分区，这里我使用fdisk 将对应盘创建一个主分区，分区号为2（这里只是为了区分）: sdb sdc sdd sde sdf sdg sdb2 sdc2 sdd2 sde2 sdf2 sdg21G 1G 1G 12G 12G 12G --OEL7中udev需绑定对应磁盘的分区for i in b c d e f g;doecho "KERNEL==\"sd?2\", SUBSYSTEM==\"block\", PROGRAM==\"/usr/lib/udev/scsi_id -g -u -d /dev/\$parent\", RESULT==\"`/usr/lib/udev/scsi_id -g -u -d /dev/sd\$i`\", SYMLINK+=\"asm-disk$i\", OWNER=\"grid\", GROUP=\"asmadmin\", MODE=\"0660\"" done --vi /etc/udev/rules.d/99-oracle-asmdevices.rules KERNEL=="sd?2", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/$parent", RESULT=="1ATA_VBOX_HARDDISK_VB208b8d32-df9af9d6", SYMLINK+="asm-ocr1", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd?2", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/$parent", RESULT=="1ATA_VBOX_HARDDISK_VBe51f4d0a-1b73c589", SYMLINK+="asm-ocr2", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd?2", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/$parent", RESULT=="1ATA_VBOX_HARDDISK_VBc63b1aa3-1e290288", SYMLINK+="asm-ocr3", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd?2", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/$parent", RESULT=="1ATA_VBOX_HARDDISK_VB53ee20b6-40c4b9a3", SYMLINK+="asm-data01", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd?2", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/$parent", RESULT=="1ATA_VBOX_HARDDISK_VB3822afbf-62d8a84d", SYMLINK+="asm-data02", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd?2", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/$parent", RESULT=="1ATA_VBOX_HARDDISK_VBfbb7943a-5ec216e5", SYMLINK+="asm-data03", OWNER="grid", GROUP="asmadmin", MODE="0660"--udevadm配置重载生效： [root@db193 rules.d]# udevadm control --reload[root@db193 rules.d]# udevadm trigger--确认udev已绑定成功: [root@db193 rules.d]# ls -l /dev/asm*lrwxrwxrwx. 1 root root 4 Jul 30 23:45 /dev/asm-data01 -> sde2 lrwxrwxrwx. 1 root root 4 Jul 30 23:45 /dev/asm-data02 -> sdf2 lrwxrwxrwx. 1 root root 4 Jul 30 23:45 /dev/asm-data03 -> sdg2 lrwxrwxrwx. 1 root root 4 Jul 30 23:45 /dev/asm-ocr1 -> sdb2 lrwxrwxrwx. 1 root root 4 Jul 30 23:45 /dev/asm-ocr2 -> sdc2 lrwxrwxrwx. 1 root root 4 Jul 30 23:45 /dev/asm-ocr3 -> sdd2 --第二个节点db195最开始直接使用udevadm操作发现不行，此时需先partprobe，再udevadm触发即可成功 --使用partprobe将磁盘分区表变化信息通知内核，请求操作系统重新加载分区表 [root@db195 ~]# partprobe /dev/sdb[root@db195 ~]# partprobe /dev/sdc[root@db195 ~]# partprobe /dev/sdd[root@db195 ~]# partprobe /dev/sde[root@db195 ~]# partprobe /dev/sdf[root@db195 ~]# partprobe /dev/sdg--udevadm配置重载生效： [root@db195 ~]# udevadm control --reload[root@db195 ~]# udevadm trigger--确认udev已绑定成功: [root@db195 ~]# ls -l /dev/asm*lrwxrwxrwx. 1 root root 4 Jul 30 23:49 /dev/asm-data01 -> sde2 lrwxrwxrwx. 1 root root 4 Jul 30 23:49 /dev/asm-data02 -> sdf2 lrwxrwxrwx. 1 root root 4 Jul 30 23:49 /dev/asm-data03 -> sdg2 lrwxrwxrwx. 1 root root 4 Jul 30 23:49 /dev/asm-ocr1 -> sdb2 lrwxrwxrwx. 1 root root 4 Jul 30 23:49 /dev/asm-ocr2 -> sdc2 lrwxrwxrwx. 1 root root 4 Jul 30 23:49 /dev/asm-ocr3 -> sdd2
我这次搭建的实验环境为了精简，没有再去模拟多路径的环境，如果想尽可能的模拟生产环境，可以参考之前18c的配置：
- Linux平台 Oracle 18c RAC安装Part1：准备工作
公有网络 以及 私有网络。 公有网络：这里实验环境是enp0s3是public IP，enp0s8是ASM & Private IP，实际生产需根据实际情况调整规划，一般public是有OS层绑定（bonding），private是使用HAIP。
二、安装前期准备工作 2.1 各节点系统时间校对各节点系统时间校对:
--检验时间和时区确认正确date --关闭chrony服务，移除chrony配置文件（后续使用ctss）systemctl list-unit-files|grep chronyd systemctl status chronyd systemctl disable chronyd systemctl stop chronyd mv /etc/chrony.conf /etc/chrony.conf_bak
这里实验环境，选择不使用NTP和chrony，这样Oracle会自动使用自己的ctss服务。
2.2 各节点关闭防火墙和SELinux各节点关闭防火墙:
systemctl list-unit-files|grep firewalld systemctl status firewalld systemctl disable firewalld systemctl stop firewalld
各节点关闭SELinux:
getenforce cat /etc/selinux/config手工修改/etc/selinux/config SELINUX=disabled，或使用下面命令： sed -i '/^SELINUX=.*/ s//SELINUX=disabled/' /etc/selinux/configsetenforce 0
最后核实各节点已经关闭SELinux即可。
2.3 各节点检查系统依赖包安装情况
yum install -y oracle-database-preinstall-18c-1.0-1.el7.x86_64
在OEL7.6中还是oracle-database-preinstall-18c的名字，并没有对应19c的，但实际测试，在依赖包方面基本没区别。 如果选用的是其他Linux，比如常用的RHEL，那就需要yum安装官方文档要求的依赖包了。
2.4 各节点配置/etc/hosts编辑/etc/hosts文件：
#public ip192.168.1.193 db193192.168.1.195 db195#virtual ip192.168.1.194 db193-vip192.168.1.196 db195-vip#scan ip192.168.1.197 db19c-scan#private ip10.10.1.193 db193-priv10.10.1.195 db195-priv
修改主机名(建议由SA调整)：
--例如：修改主机名为db193:hostnamectl statushostnamectl set-hostname db193 hostnamectl status2.5 各节点创建需要的用户和组
创建group & user，给oracle、grid设置密码：
groupadd -g 54321 oinstall groupadd -g 54322 dba groupadd -g 54323 oper groupadd -g 54324 backupdba groupadd -g 54325 dgdba groupadd -g 54326 kmdba groupadd -g 54327 asmdba groupadd -g 54328 asmoper groupadd -g 54329 asmadmin groupadd -g 54330 racdba useradd -u 54321 -g oinstall -G dba,asmdba,backupdba,dgdba,kmdba,racdba,oper oracle useradd -u 54322 -g oinstall -G asmadmin,asmdba,asmoper,dba grid echo oracle | passwd --stdin oracleecho oracle | passwd --stdin grid
我这里测试环境设置密码都是oracle，实际生产环境建议设置符合规范的复杂密码。
2.6 各节点创建安装目录各节点创建安装目录(root用户)：
mkdir -p /u01/app/19.3.0/grid mkdir -p /u01/app/grid mkdir -p /u01/app/oracle chown -R grid:oinstall /u01 chown oracle:oinstall /u01/app/oracle chmod -R 775 /u01/2.7 各节点系统配置文件修改
内核参数修改：vi /etc/sysctl.conf 实际上OEL在安装依赖包的时候也同时修改了这些值，以下参数主要是核对或是对RHEL版本作为参考：
# vi /etc/sysctl.conf 增加如下内容： vm.swappiness = 1vm.dirty_background_ratio = 3vm.dirty_ratio = 80vm.dirty_expire_centisecs = 500vm.dirty_writeback_centisecs = 100kernel.shmmni = 4096 kernel.shmall = 1073741824 kernel.shmmax = 4398046511104kernel.sem = 250 32000 100 128net.ipv4.ip_local_port_range = 9000 65500 net.core.rmem_default = 262144net.core.rmem_max = 4194304net.core.wmem_default = 262144net.core.wmem_max = 1048576 fs.aio-max-nr = 1048576fs.file-max = 6815744kernel.panic_on_oops = 1net.ipv4.conf.enp0s8.rp_filter = 2net.ipv4.conf.enp0s9.rp_filter = 2net.ipv4.conf.enp0s10.rp_filter = 2
修改生效：
#sysctl -p /etc/sysctl.conf
注：enp0s9和enp0s10是IPSAN专用的网卡，跟私网一样设置loose mode。（我这里因为没有使用IPSAN，所以没有这两张网卡）
#sysctl -p /etc/sysctl.d/98-oracle.confnet.ipv4.conf.enp0s8.rp_filter = 2net.ipv4.conf.enp0s9.rp_filter = 2net.ipv4.conf.enp0s10.rp_filter = 2
用户shell的限制：vi /etc/security/limits.d/99-grid-oracle-limits.conf
oracle soft nproc 16384oracle hard nproc 16384oracle soft nofile 1024oracle hard nofile 65536oracle soft stack 10240oracle hard stack 32768grid soft nproc 16384grid hard nproc 16384grid soft nofile 1024grid hard nofile 65536grid soft stack 10240grid hard stack 32768
这里需要注意OEL自动配置的 /etc/security/limits.d/oracle-database-server-12cR2-preinstall.conf 并不包含grid用户的，可以手工加上。
vi /etc/profile.d/oracle-grid.sh
#Setting the appropriate ulimits for oracle and grid userif [ $USER = "oracle" ]; then if [ $SHELL = "/bin/ksh" ]; then ulimit -u 16384 ulimit -n 65536 else ulimit -u 16384 -n 65536 fifiif [ $USER = "grid" ]; then if [ $SHELL = "/bin/ksh" ]; then ulimit -u 16384 ulimit -n 65536 else ulimit -u 16384 -n 65536 fifi
这个OEL中也没有自动配置，需要手工配置。
2.8 各节点设置用户的环境变量第1个节点grid用户：
export ORACLE_SID=+ASM1;export ORACLE_BASE=/u01/app/grid;export ORACLE_HOME=/u01/app/19.3.0/grid;export PATH=$ORACLE_HOME/bin:$PATH;export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib;
第2个节点grid用户：
export ORACLE_SID=+ASM2;export ORACLE_BASE=/u01/app/grid;export ORACLE_HOME=/u01/app/19.3.0/grid;export PATH=$ORACLE_HOME/bin:$PATH;export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib;
第1个节点oracle用户：
export ORACLE_SID=jydb1;export ORACLE_BASE=/u01/app/oracle;export ORACLE_HOME=/u01/app/oracle/product/19.3.0/db_1;export PATH=$ORACLE_HOME/bin:$PATH;export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib;
第2个节点oracle用户：
export ORACLE_SID=jydb2;export ORACLE_BASE=/u01/app/oracle;export ORACLE_HOME=/u01/app/oracle/product/19.3.0/db_1;export PATH=$ORACLE_HOME/bin:$PATH;export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib;
三、 GI(Grid Infrastructure)安装
- 3.1 解压GI的安装包
- 3.2 安装配置Xmanager软件
- 3.3 共享存储LUN的赋权
- 3.4 使用Xmanager图形化界面配置GI
- 3.5 验证crsctl的状态
- 3.6 测试集群的FAILED OVER功能
Linux平台 Oracle 19c RAC安装指导： Part1： Linux平台 Oracle 19c RAC安装Part1：准备工作 Part2： Linux平台 Oracle 19c RAC安装Part2：GI配置 Part3： Linux平台 Oracle 19c RAC安装Part3：DB配置
本文安装环境： OEL 7.6 + Oracle 19.3 GI & RAC
三、GI(Grid Infrastructure)安装 3.1 解压GI的安装包su - grid 解压 GRID 到 GRID用户的$ORACLE_HOME下
[grid@db193 grid]$ pwd/u01/app/19.3.0/grid [grid@db193 grid]$ unzip /u01/media/LINUX.X64_193000_grid_home.zip3.2 安装配置Xmanager软件
在自己的Windows系统上成功安装Xmanager Enterprise之后，运行Xstart.exe可执行程序， 配置如下
Session：db193 Host：192.168.1.193 Protocol：SSH User Name：grid Execution Command：/usr/bin/xterm -ls -display $DISPLAY 点击RUN，输入grid用户的密码可以正常弹出命令窗口界面，即配置成功。 当然也可以通过开启Xmanager - Passive，直接在SecureCRT连接的会话窗口中临时配置DISPLAY变量直接调用图形： export DISPLAY=192.168.1.31:0.0
3.3 共享存储LUN的赋权在《 Linux平台 Oracle 19c RAC安装Part1：准备工作 -> 1.3 共享存储规划》中已完成绑定和权限，这里不需要再次操作。
--只需确认两个节点链接文件(/dev/asm*)对应的sd[b-g]2的权限正确即可： # ls -l /dev/sd?2brw-rw---- 1 root disk 8, 2 Jul 31 09:13 /dev/sda2brw-rw---- 1 grid asmadmin 8, 18 Jul 31 18:06 /dev/sdb2brw-rw---- 1 grid asmadmin 8, 34 Jul 31 18:06 /dev/sdc2brw-rw---- 1 grid asmadmin 8, 50 Jul 31 18:06 /dev/sdd2brw-rw---- 1 grid asmadmin 8, 66 Jul 31 17:10 /dev/sde2brw-rw---- 1 grid asmadmin 8, 82 Jul 31 17:10 /dev/sdf2brw-rw---- 1 grid asmadmin 8, 98 Jul 31 17:10 /dev/sdg23.4 使用Xmanager图形化界面配置GI
Xmanager通过grid用户登录，进入$ORACLE_HOME目录，运行gridSetup配置GI
$ cd $ORACLE_HOME$ ./gridSetup.sh

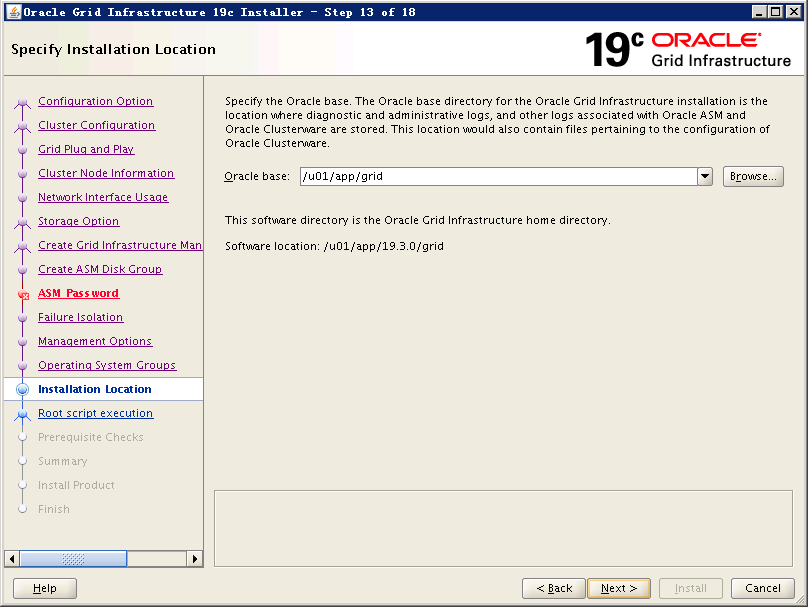

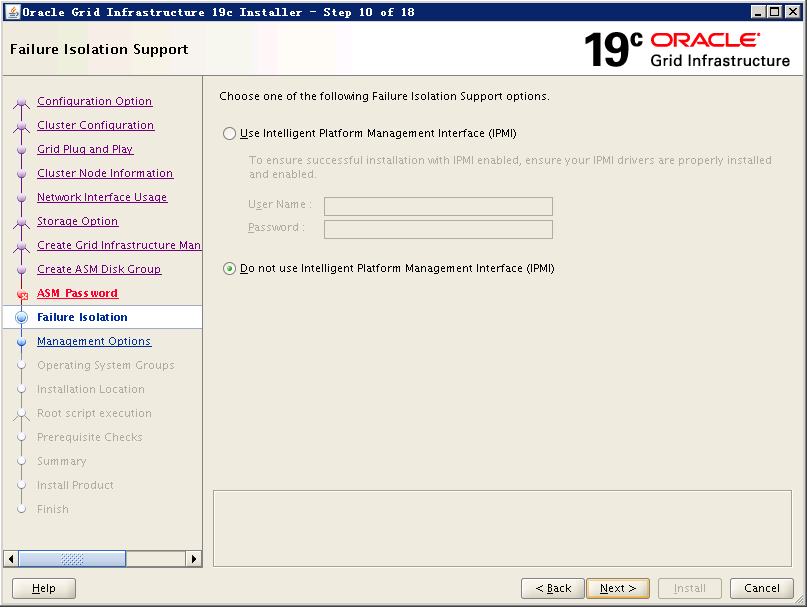

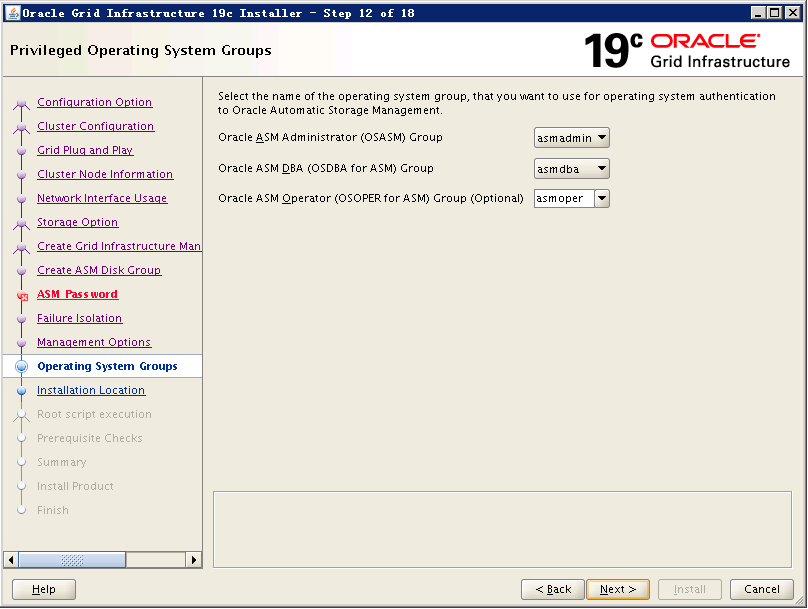

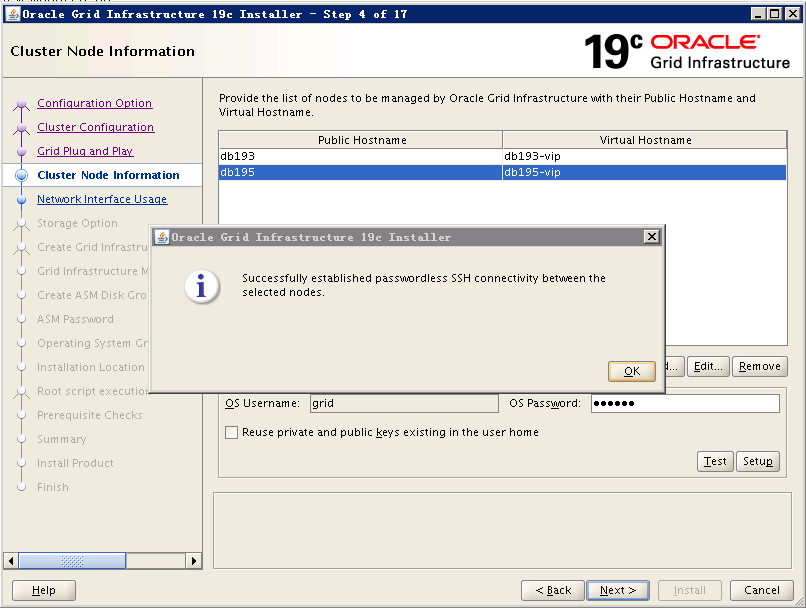

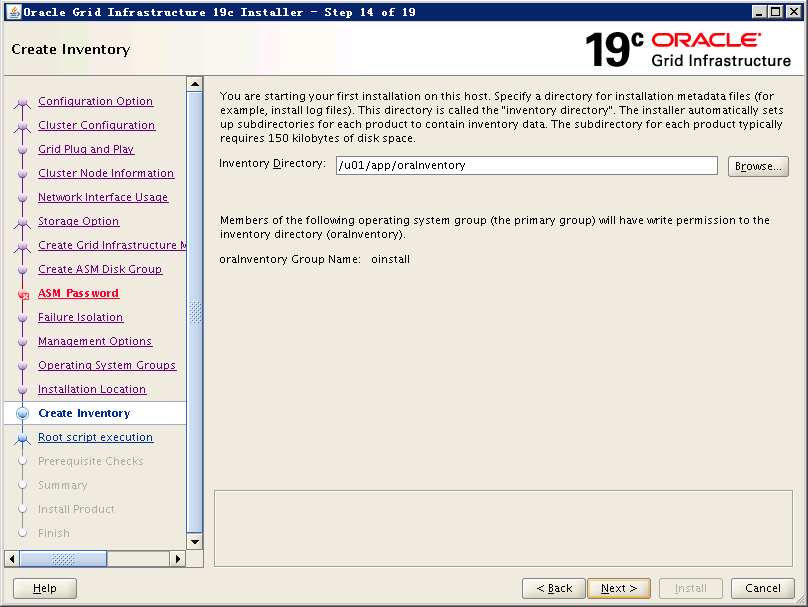

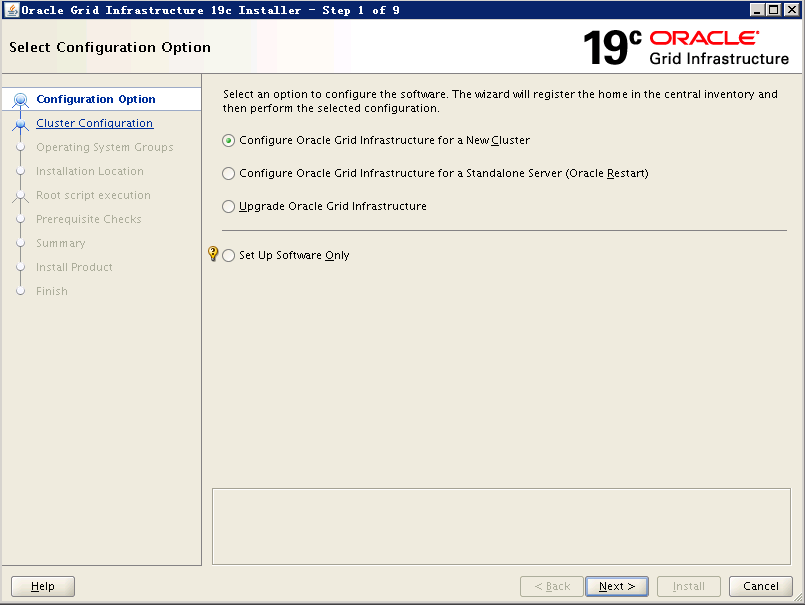

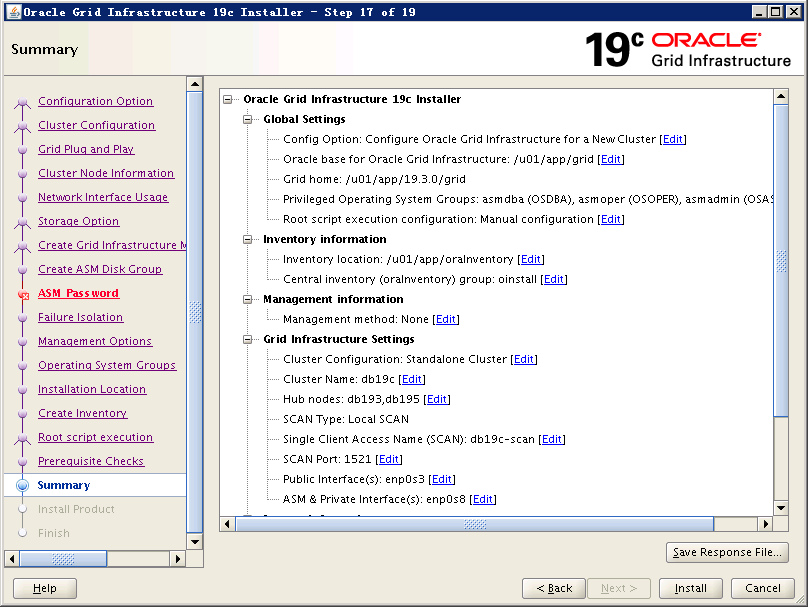

其实从12cR2开始，GI的配置就跟之前有一些变化，19c也一样，下面来看下GI配置的整个图形化安装的过程截图：

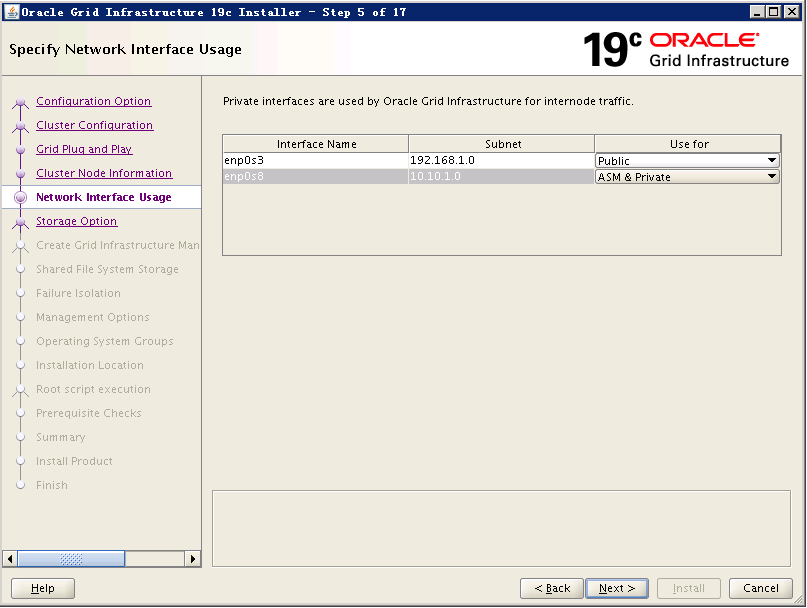

注：这里Public网卡这里用的enp0s3，ASM&Private这里用的enp0s8。

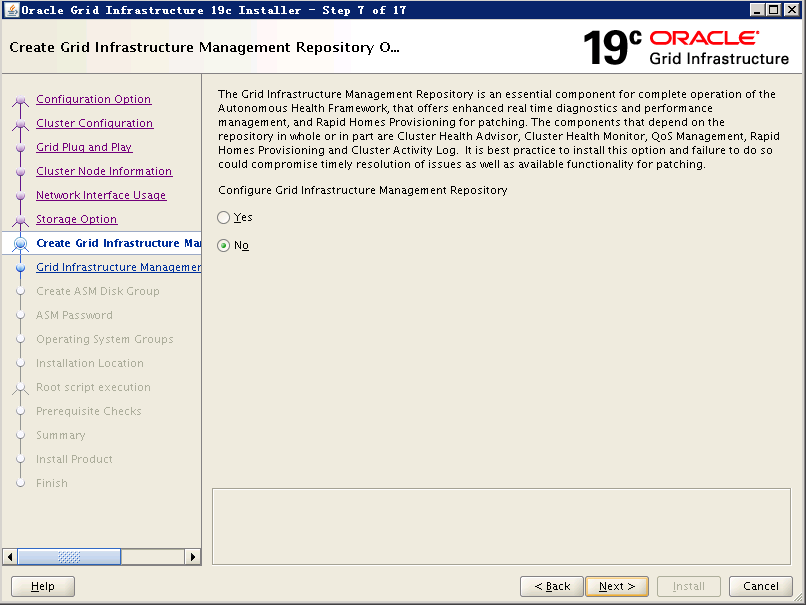

注：这里有一个新的存储GIMR的，之前12c、18c版本都是选择是外部冗余的一个40G大小的盘（当初给很多刚接触安装12cRAC的DBA造成了不适），而在19c安装中可以看到默认就是不选择的，恢复了11g时代的清爽感，这点我个人觉得很赞。

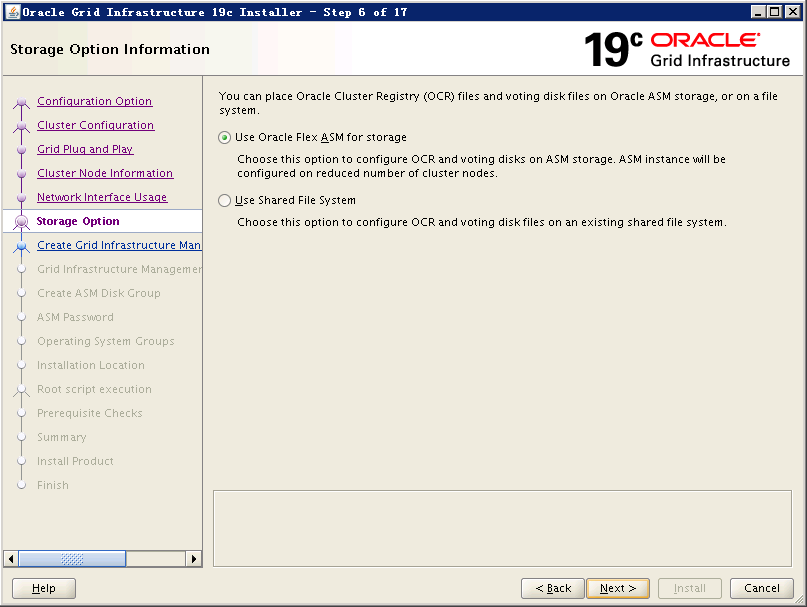

注：这里跟之前区别不大，我依然是选择3块1G的盘，Normal冗余作为OCR和voting disk。

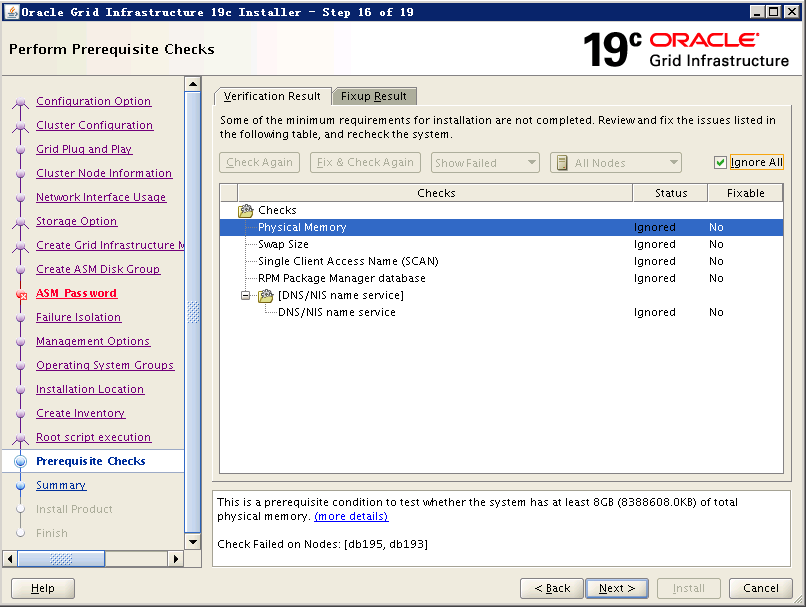

注：这里检查出来的问题都需要认真核对，确认确实可以忽略才可以点击“Ignore All”，如果这里检测出缺少某些RPM包，需要使用yum安装好。我这里是自己的测试环境，分的配置较低，所以有内存和swap检测不通过，实际生产环境不应出现。

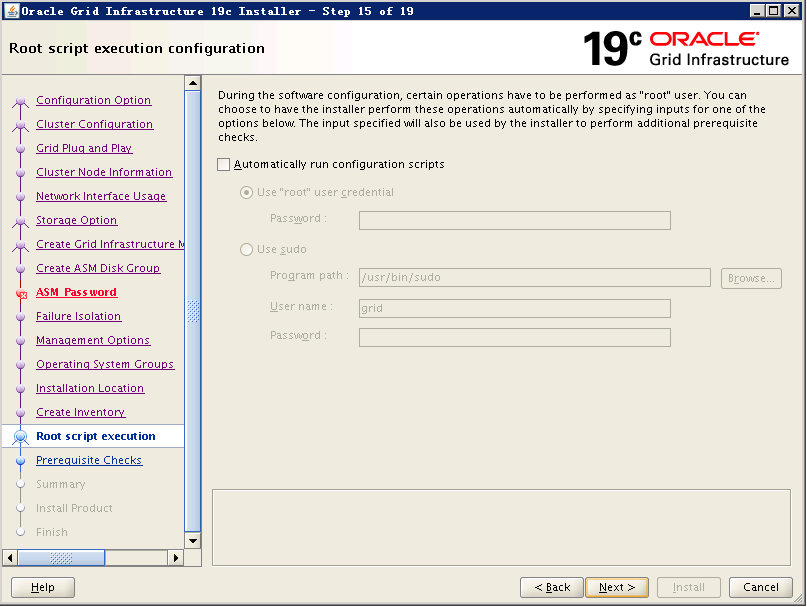

注：执行root脚本，确保先在一节点执行完毕后，再在其他节点执行。
第一个节点root执行脚本：
[root@db193 ~]# /u01/app/oraInventory/orainstRoot.shChanging permissions of /u01/app/oraInventory. Adding read,write permissions for group. Removing read,write,execute permissions for world. Changing groupname of /u01/app/oraInventory to oinstall. The execution of the script is complete. [root@db193 ~]# /u01/app/19.3.0/grid/root.shPerforming root user operation. The following environment variables are set as: ORACLE_OWNER= grid ORACLE_HOME= /u01/app/19.3.0/grid Enter the full pathname of the local bin directory: [/usr/local/bin]: Copying dbhome to /usr/local/bin ... Copying oraenv to /usr/local/bin ... Copying coraenv to /usr/local/bin ... Creating /etc/oratab file... Entries will be added to the /etc/oratab file as needed byDatabase Configuration Assistant when a database is created Finished running generic part of root script. Now product-specific root actions will be performed. Relinking oracle with rac_on optionUsing configuration parameter file: /u01/app/19.3.0/grid/crs/install/crsconfig_params The log of current session can be found at: /u01/app/grid/crsdata/db193/crsconfig/rootcrs_db193_2019-07-31_07-27-23AM.log2019/07/31 07:28:07 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.2019/07/31 07:28:08 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.2019/07/31 07:28:08 CLSRSC-363: User ignored prerequisites during installation2019/07/31 07:28:08 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.2019/07/31 07:28:17 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.2019/07/31 07:28:21 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.2019/07/31 07:28:21 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.2019/07/31 07:28:21 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.2019/07/31 07:31:54 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.2019/07/31 07:32:24 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.2019/07/31 07:32:37 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.2019/07/31 07:33:17 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.2019/07/31 07:33:18 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.2019/07/31 07:33:42 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.2019/07/31 07:33:43 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'2019/07/31 07:34:48 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.2019/07/31 07:35:21 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.2019/07/31 07:35:50 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.2019/07/31 07:36:14 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.ASM has been created and started successfully. [DBT-30001] Disk groups created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-190731AM073727.log for details.2019/07/31 07:40:00 CLSRSC-482: Running command: '/u01/app/19.3.0/grid/bin/ocrconfig -upgrade grid oinstall'CRS-4256: Updating the profile Successful addition of voting disk b789e47e76d74f06bf5f8b5cb4d62b88. Successful addition of voting disk 3bc8119dfafe4fbebf7e1bf11aec8b9a. Successful addition of voting disk bccdf28694a54ffcbf41354c7e4f133d. Successfully replaced voting disk group with +CRS. CRS-4256: Updating the profile CRS-4266: Voting file(s) successfully replaced## STATE File Universal Id File Name Disk group-- ----- ----------------- --------- --------- 1. ONLINE b789e47e76d74f06bf5f8b5cb4d62b88 (/dev/asm-ocr1) [CRS] 2. ONLINE 3bc8119dfafe4fbebf7e1bf11aec8b9a (/dev/asm-ocr2) [CRS] 3. ONLINE bccdf28694a54ffcbf41354c7e4f133d (/dev/asm-ocr3) [CRS] Located 3 voting disk(s).2019/07/31 07:48:20 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.2019/07/31 07:50:48 CLSRSC-343: Successfully started Oracle Clusterware stack2019/07/31 07:50:49 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.2019/07/31 08:04:16 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.2019/07/31 08:08:26 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded [root@db193 ~]#
执行成功后，在第二个节点root执行脚本：
[root@db195 ~]# /u01/app/oraInventory/orainstRoot.shChanging permissions of /u01/app/oraInventory. Adding read,write permissions for group. Removing read,write,execute permissions for world. Changing groupname of /u01/app/oraInventory to oinstall. The execution of the script is complete. [root@db195 ~]# /u01/app/19.3.0/grid/root.shPerforming root user operation. The following environment variables are set as: ORACLE_OWNER= grid ORACLE_HOME= /u01/app/19.3.0/grid Enter the full pathname of the local bin directory: [/usr/local/bin]: Copying dbhome to /usr/local/bin ... Copying oraenv to /usr/local/bin ... Copying coraenv to /usr/local/bin ... Creating /etc/oratab file... Entries will be added to the /etc/oratab file as needed byDatabase Configuration Assistant when a database is created Finished running generic part of root script. Now product-specific root actions will be performed. Relinking oracle with rac_on optionUsing configuration parameter file: /u01/app/19.3.0/grid/crs/install/crsconfig_params The log of current session can be found at: /u01/app/grid/crsdata/db195/crsconfig/rootcrs_db195_2019-07-31_08-10-55AM.log2019/07/31 08:11:34 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.2019/07/31 08:11:34 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.2019/07/31 08:11:34 CLSRSC-363: User ignored prerequisites during installation2019/07/31 08:11:34 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.2019/07/31 08:11:44 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.2019/07/31 08:11:44 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.2019/07/31 08:11:45 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.2019/07/31 08:11:51 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.2019/07/31 08:12:03 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.2019/07/31 08:12:04 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.2019/07/31 08:12:32 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.2019/07/31 08:12:33 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.2019/07/31 08:12:56 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.2019/07/31 08:12:59 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'2019/07/31 08:13:59 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.2019/07/31 08:14:31 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.2019/07/31 08:14:42 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.2019/07/31 08:14:51 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.2019/07/31 08:14:58 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.2019/07/31 08:15:32 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.2019/07/31 08:17:41 CLSRSC-343: Successfully started Oracle Clusterware stack2019/07/31 08:17:42 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.2019/07/31 08:22:03 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.2019/07/31 08:23:05 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded [root@db195 ~]#
这段时间从打印的日志来看，虽然耗时也比以前11g时代长，但实际相比12c的上一个版本18c来说却缩短了不少。
root脚本成功执行完后继续安装:
注：最后这个报错提示，查看日志发现是因为使用了一个scan ip的提示，可以忽略。
至此GI配置完成。
crsctl stat res -t查看集群资源状态信息，看到19c实际相对18c来说，有做很多的精简，更趋于稳定性因素考虑~
[grid@db193 ~]$ crsctl stat res -t --------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Local Resources --------------------------------------------------------------------------------ora.LISTENER.lsnr ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLEora.chad ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLEora.net1.network ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLEora.ons ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLE --------------------------------------------------------------------------------Cluster Resources --------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLEora.CRS.dg(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLEora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE db193 STABLEora.asm(ora.asmgroup) 1 ONLINE ONLINE db193 Started,STABLE 2 ONLINE ONLINE db195 Started,STABLE 3 OFFLINE OFFLINE STABLEora.asmnet1.asmnetwork(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLEora.cvu 1 ONLINE ONLINE db193 STABLEora.db193.vip 1 ONLINE ONLINE db193 STABLEora.db195.vip 1 ONLINE ONLINE db195 STABLEora.qosmserver 1 ONLINE ONLINE db193 STABLEora.scan1.vip 1 ONLINE ONLINE db193 STABLE --------------------------------------------------------------------------------
crsctl stat res -t -init
[grid@db193 ~]$ crsctl stat res -t -init --------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Cluster Resources --------------------------------------------------------------------------------ora.asm 1 ONLINE ONLINE db193 Started,STABLEora.cluster_interconnect.haip 1 ONLINE ONLINE db193 STABLEora.crf 1 ONLINE ONLINE db193 STABLEora.crsd 1 ONLINE ONLINE db193 STABLEora.cssd 1 ONLINE ONLINE db193 STABLEora.cssdmonitor 1 ONLINE ONLINE db193 STABLEora.ctssd 1 ONLINE ONLINE db193 ACTIVE:0,STABLEora.diskmon 1 OFFLINE OFFLINE STABLEora.evmd 1 ONLINE ONLINE db193 STABLEora.gipcd 1 ONLINE ONLINE db193 STABLEora.gpnpd 1 ONLINE ONLINE db193 STABLEora.mdnsd 1 ONLINE ONLINE db193 STABLEora.storage 1 ONLINE ONLINE db193 STABLE --------------------------------------------------------------------------------3.6 测试集群的FAILED OVER功能
节点2被重启，查看节点1状态：
[grid@db193 ~]$ crsctl stat res -t --------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Local Resources --------------------------------------------------------------------------------ora.LISTENER.lsnr ONLINE ONLINE db193 STABLEora.chad ONLINE ONLINE db193 STABLEora.net1.network ONLINE ONLINE db193 STABLEora.ons ONLINE ONLINE db193 STABLE --------------------------------------------------------------------------------Cluster Resources --------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE OFFLINE STABLE 3 OFFLINE OFFLINE STABLEora.CRS.dg(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE OFFLINE STABLE 3 OFFLINE OFFLINE STABLEora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE db193 STABLEora.asm(ora.asmgroup) 1 ONLINE ONLINE db193 Started,STABLE 2 ONLINE OFFLINE STABLE 3 OFFLINE OFFLINE STABLEora.asmnet1.asmnetwork(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE OFFLINE STABLE 3 OFFLINE OFFLINE STABLEora.cvu 1 ONLINE ONLINE db193 STABLEora.db193.vip 1 ONLINE ONLINE db193 STABLEora.db195.vip 1 ONLINE INTERMEDIATE db193 FAILED OVER,STABLEora.qosmserver 1 ONLINE ONLINE db193 STABLEora.scan1.vip 1 ONLINE ONLINE db193 STABLE --------------------------------------------------------------------------------
节点1被重启，查看节点2状态：
[grid@db195 ~]$ crsctl stat res -t --------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Local Resources --------------------------------------------------------------------------------ora.LISTENER.lsnr ONLINE ONLINE db195 STABLEora.chad ONLINE ONLINE db195 STABLEora.net1.network ONLINE ONLINE db195 STABLEora.ons ONLINE ONLINE db195 STABLE --------------------------------------------------------------------------------Cluster Resources --------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup) 1 ONLINE OFFLINE STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLEora.CRS.dg(ora.asmgroup) 1 ONLINE OFFLINE STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLEora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE db195 STABLEora.asm(ora.asmgroup) 1 ONLINE OFFLINE STABLE 2 ONLINE ONLINE db195 Started,STABLE 3 OFFLINE OFFLINE STABLEora.asmnet1.asmnetwork(ora.asmgroup) 1 ONLINE OFFLINE STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLEora.cvu 1 ONLINE ONLINE db195 STABLEora.db193.vip 1 ONLINE INTERMEDIATE db195 FAILED OVER,STABLEora.db195.vip 1 ONLINE ONLINE db195 STABLEora.qosmserver 1 ONLINE ONLINE db195 STABLEora.scan1.vip 1 ONLINE ONLINE db195 STABLE --------------------------------------------------------------------------------
附：集群日志位置：
--如果忘记，可以使用adrci查看日志位置[grid@db195 trace]$ pwd /u01/app/grid/diag/crs/db195/crs/trace [grid@db195 trace]$ tail -20f alert.log 2019-07-31 09:13:53.813 [CRSD(9156)]CRS-8500: Oracle Clusterware CRSD process is starting with operating system process ID 91562019-07-31 09:14:05.943 [CRSD(9156)]CRS-1012: The OCR service started on node db195.2019-07-31 09:14:06.585 [CRSD(9156)]CRS-1201: CRSD started on node db195.2019-07-31 09:14:15.787 [ORAAGENT(9824)]CRS-8500: Oracle Clusterware ORAAGENT process is starting with operating system process ID 98242019-07-31 09:14:16.576 [ORAROOTAGENT(9856)]CRS-8500: Oracle Clusterware ORAROOTAGENT process is starting with operating system process ID 98562019-07-31 09:14:28.516 [ORAAGENT(10272)]CRS-8500: Oracle Clusterware ORAAGENT process is starting with operating system process ID 102722019-07-31 09:21:07.409 [OCTSSD(8378)]CRS-2407: The new Cluster Time Synchronization Service reference node is host db195.2019-07-31 09:21:10.569 [OCSSD(7062)]CRS-1625: Node db193, number 1, was shut down2019-07-31 09:21:10.948 [OCSSD(7062)]CRS-1601: CSSD Reconfiguration complete. Active nodes are db195 .2019-07-31 09:21:11.055 [CRSD(9156)]CRS-5504: Node down event reported for node 'db193'.2019-07-31 09:21:11.292 [CRSD(9156)]CRS-2773: Server 'db193' has been removed from pool 'Free'.2019-07-31 09:22:25.944 [OLOGGERD(21377)]CRS-8500: Oracle Clusterware OLOGGERD process is starting with operating system process ID 213772019-07-31 09:23:41.207 [OCSSD(7062)]CRS-1601: CSSD Reconfiguration complete. Active nodes are db193 db195 . [grid@db195 trace]$ tail -5f ocssd.trc 2019-07-31 09:35:40.732 : CSSD:527664896: [ INFO] clssgmDiscEndpcl: initiating gipcDestroy 0x275532019-07-31 09:35:40.732 : CSSD:527664896: [ INFO] clssgmDiscEndpcl: completed gipcDestroy 0x275532019-07-31 09:35:42.136 : CSSD:527664896: [ INFO] : Processing member data change type 1, size 4 for group HB+ASM, memberID 17:2:22019-07-31 09:35:42.136 : CSSD:527664896: [ INFO] : Sending member data change to GMP for group HB+ASM, memberID 17:2:22019-07-31 09:35:42.138 : CSSD:1010091776: [ INFO] clssgmpcMemberDataUpdt: grockName HB+ASM memberID 17:2:2, datatype 1 datasize 4
至此，19c的GI配置已全部完成。
Linux平台 Oracle 19c RAC安装Part3：DB配置
四、 DB(Database)配置
- 4.1 解压DB的安装包
- 4.2 DB软件配置
- 4.3 ASMCA创建磁盘组
- 4.4 DBCA建库
- 4.5 验证crsctl的状态
Linux平台 Oracle 19c RAC安装指导： Part1： Linux平台 Oracle 19c RAC安装Part1：准备工作 Part2： Linux平台 Oracle 19c RAC安装Part2：GI配置 Part3： Linux平台 Oracle 19c RAC安装Part3：DB配置
本文安装环境： OEL 7.6 + Oracle 19.3 GI & RAC
四、DB(Database)安装 4.1 解压DB的安装包oracle用户登录，在$ORACLE_HOME下解压db包（19c的db也是像18c一样直接解压到$ORACLE_HOME下，免安装）：
[oracle@db193 ~]$ mkdir -p /u01/app/oracle/product/19.3.0/db_1 [oracle@db193 ~]$ cd $ORACLE_HOME [oracle@db193 db_1]$ pwd/u01/app/oracle/product/19.3.0/db_1 [oracle@db193 db_1]$ ls [oracle@db193 db_1]$ unzip /u01/media/LINUX.X64_193000_db_home.zip4.2 DB软件配置
打开Xmanager软件，Oracle用户登录，配置数据库软件。
[oracle@db193 db_1]$ pwd/u01/app/oracle/product/19.3.0/db_1 [oracle@db193 db_1]$ export DISPLAY=192.168.1.31:0.0[oracle@db193 db_1]$ ./runInstaller

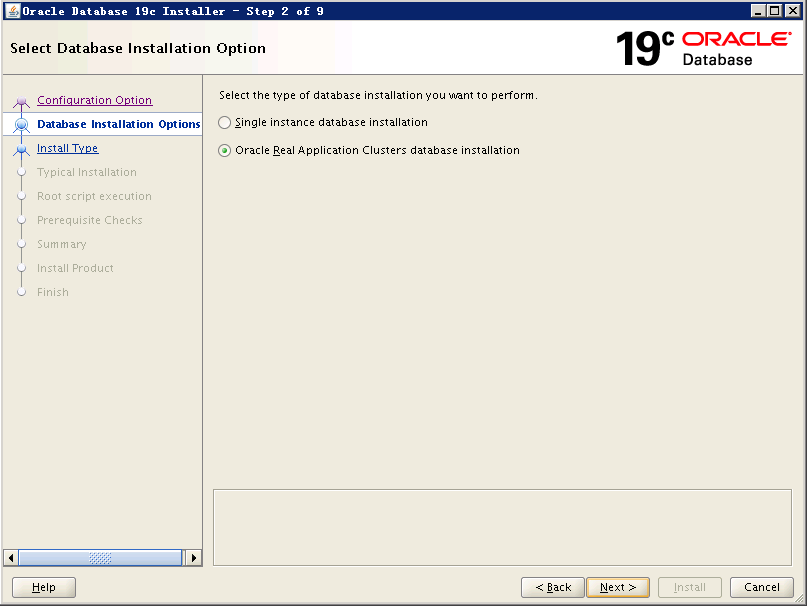

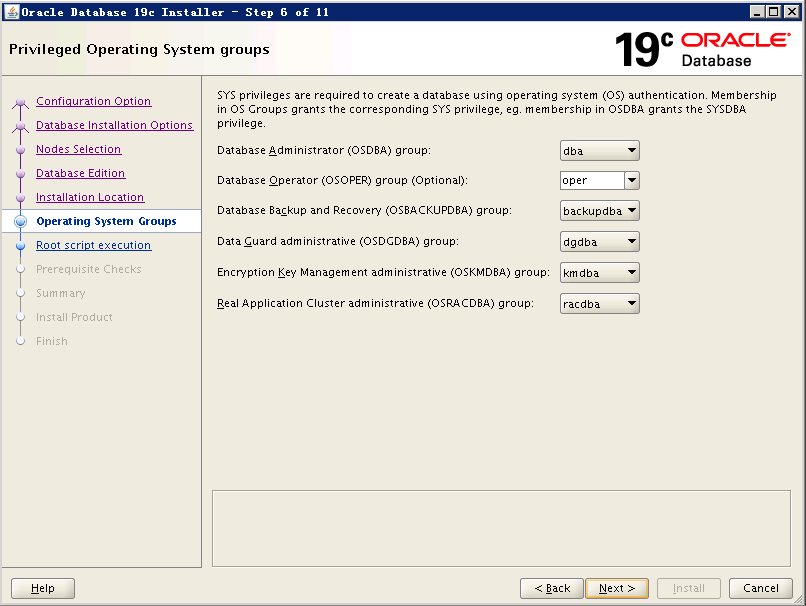

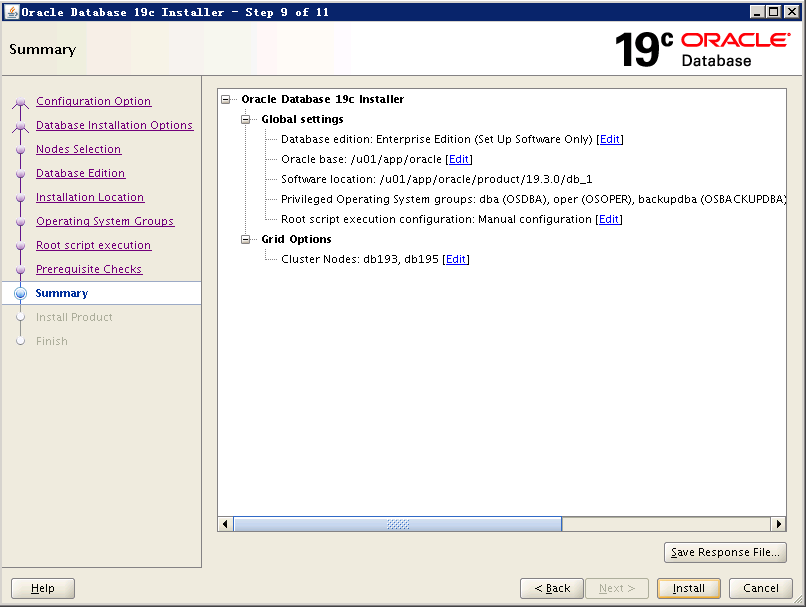

下面截取DB软件配置的过程如下：
注：这里选择只安装软件，数据库后面创建好ASM磁盘组后再运行dbca创建。
注：配置好ssh等价性。
注：可以进行修复的，按提示执行脚本修复。

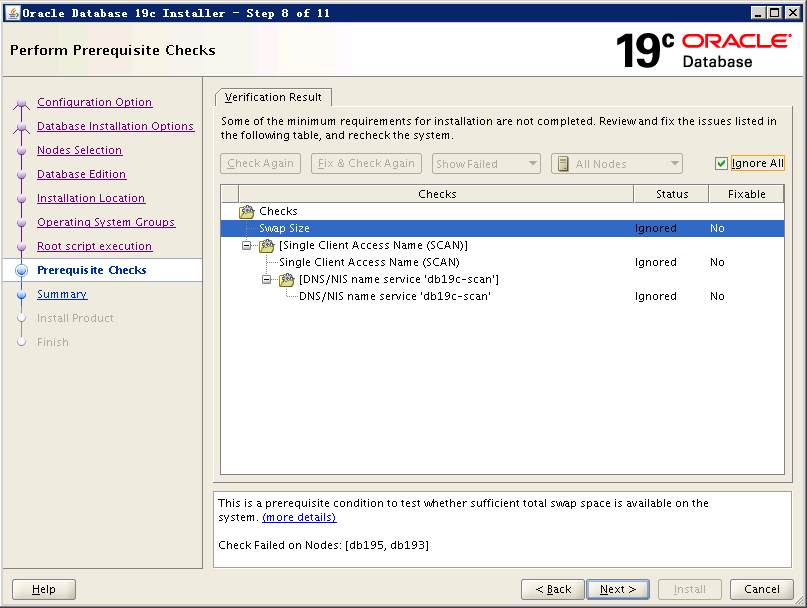

我这里还有swap的问题，因为是测试环境资源有限，可以忽略，如果生产环境，强烈建议调整符合要求。
如果还有其他的检查项未通过，则无论是生产还是测试环境，都不建议忽略，而应该整改符合要求为止。

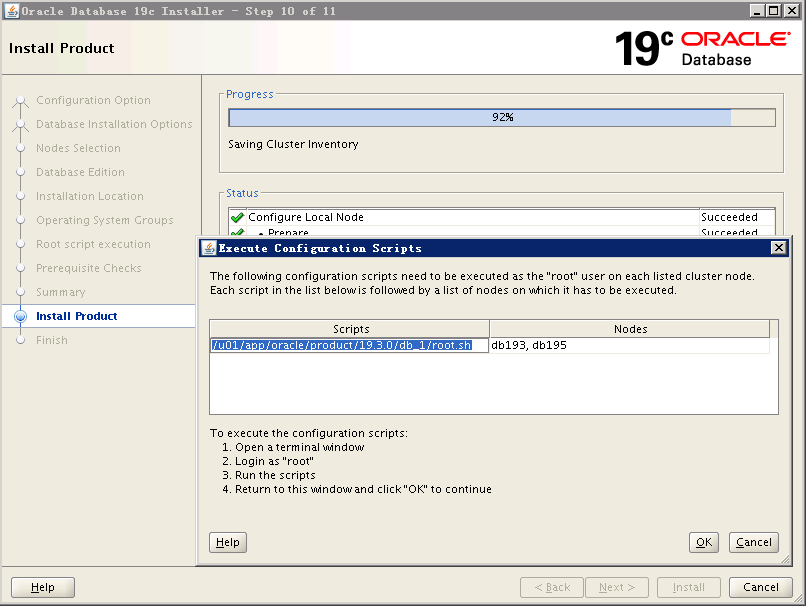

注：最后root用户按安装提示执行1个脚本，需要在各节点分别执行。

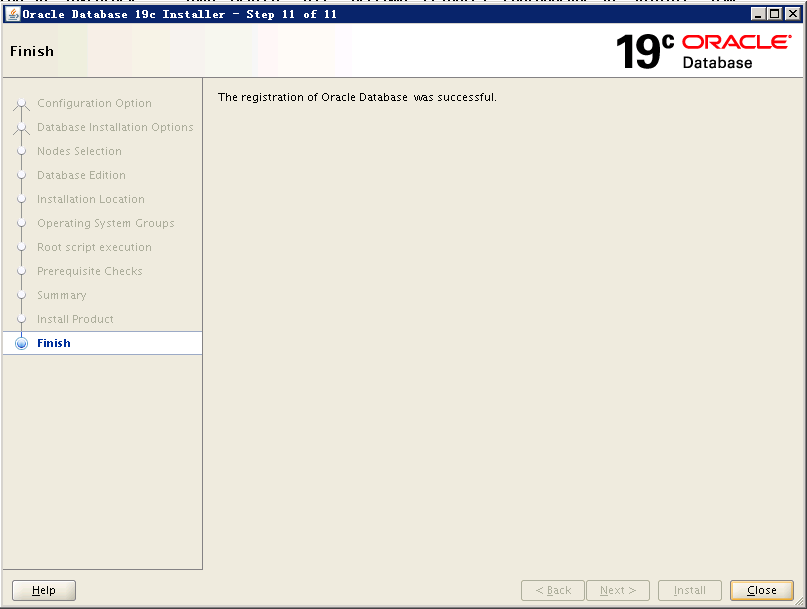

至此，已完成DB软件的配置。
打开Xmanager软件，grid用户登录，asmca创建ASM磁盘组
[grid@db193 ~]$ export DISPLAY=192.168.1.31:0.0[grid@db193 ~]$ asmca

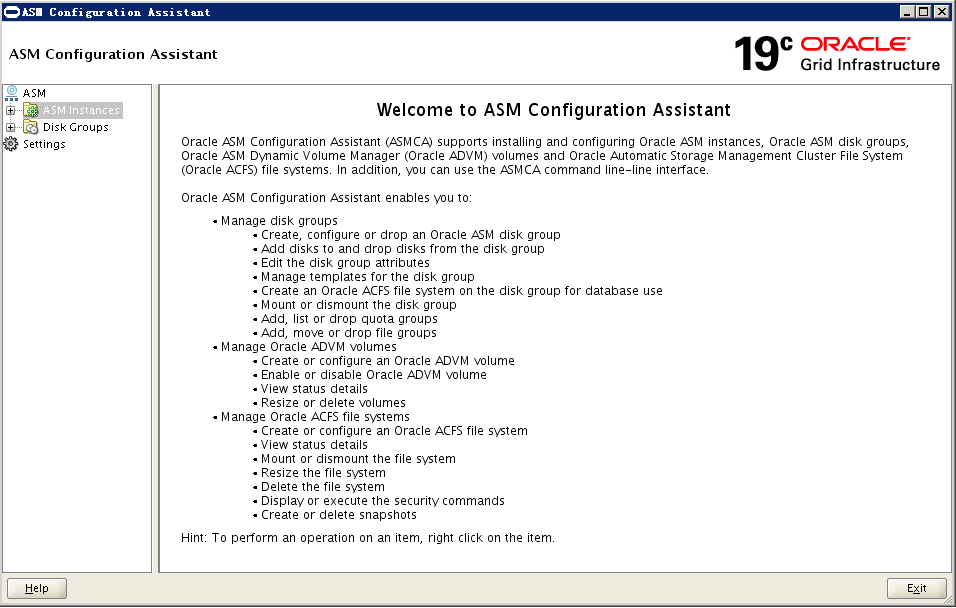

使用asmca调用创建磁盘组的图形界面,首先映入眼帘的是鲜艳的19c配色图：
然后正式进入asmca的界面：

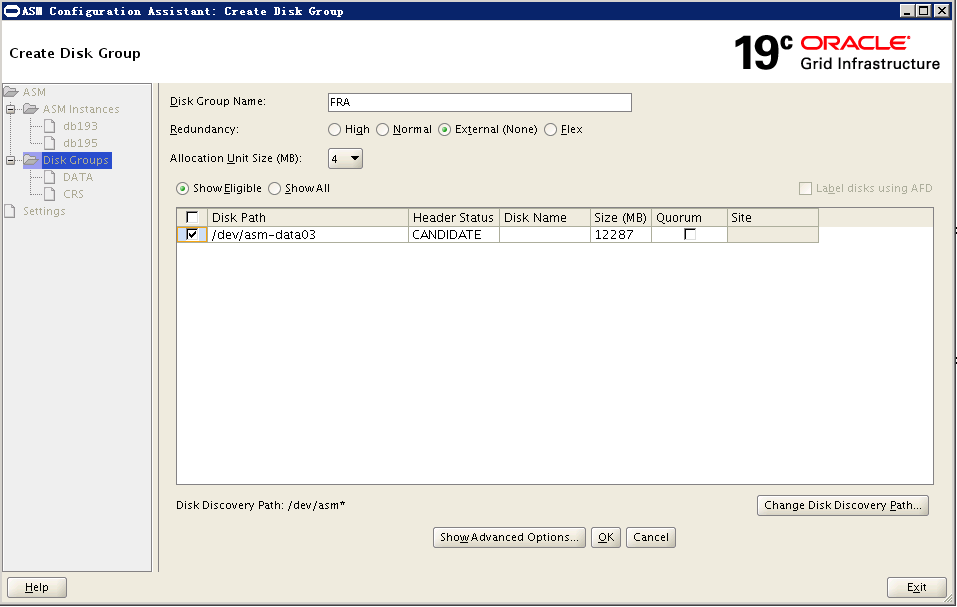

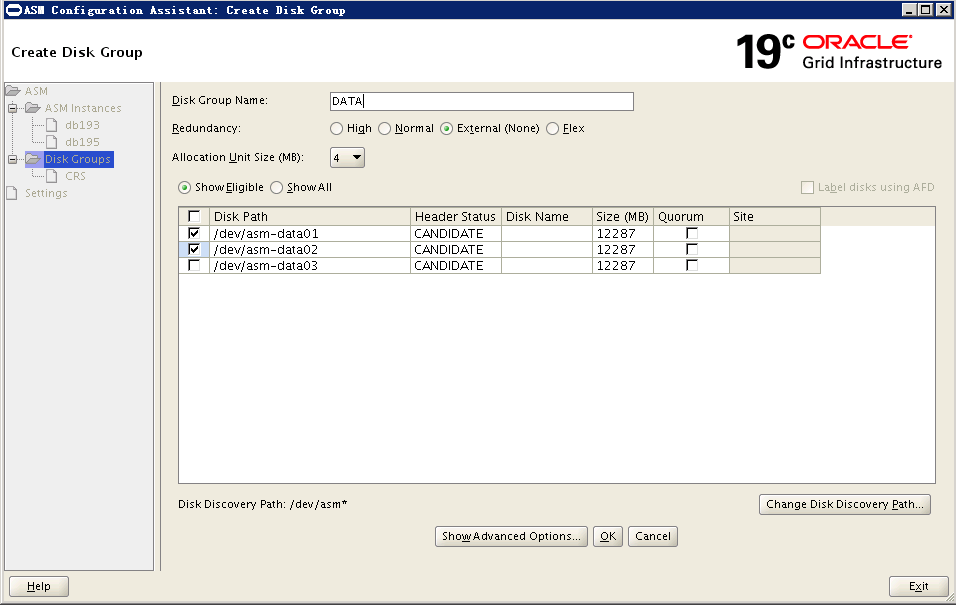

这里我先创建一个DATA磁盘组，一个FRA磁盘组，冗余选择external(生产如果选择external，底层存储必须已经做了RAID)。

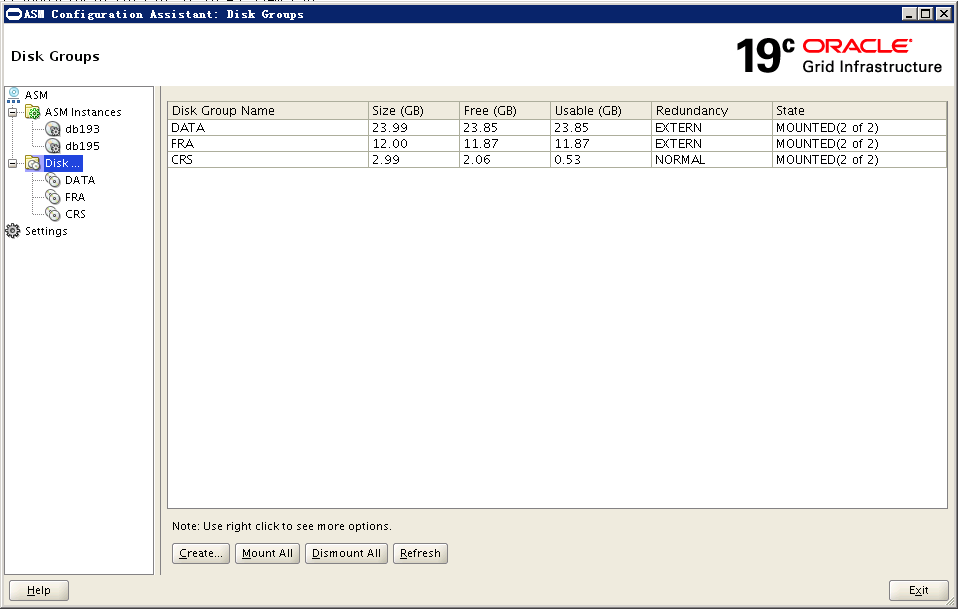

这里看到新创建的DATA和FRA磁盘组已经创建完成并成功mount。
打开Xmanager软件，oracle用户登录，dbca图形创建数据库。

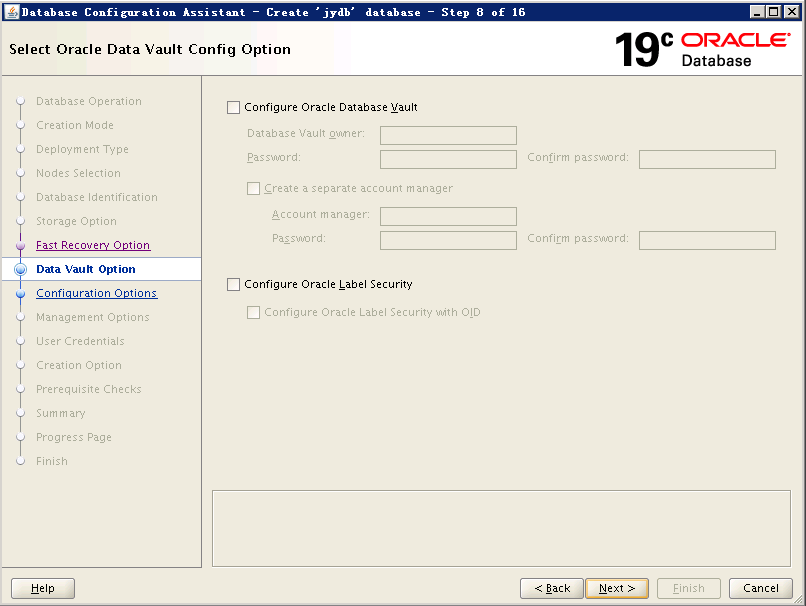

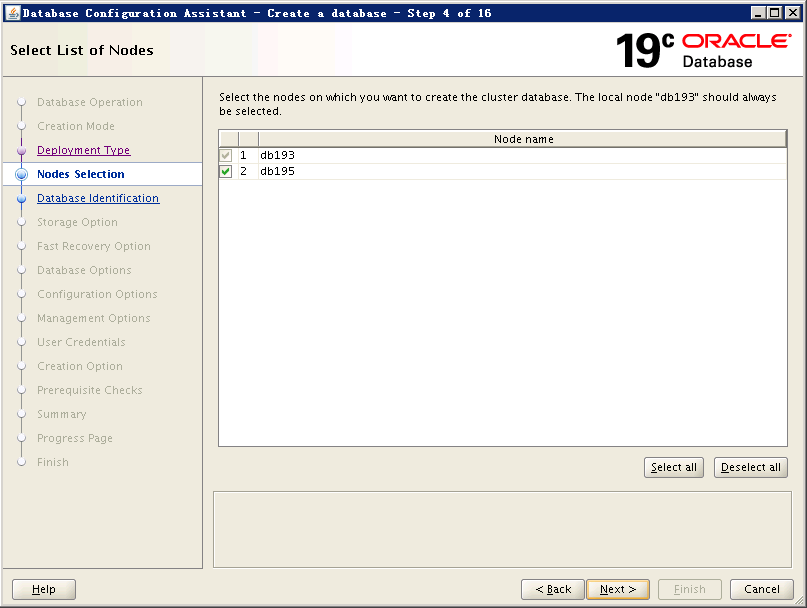

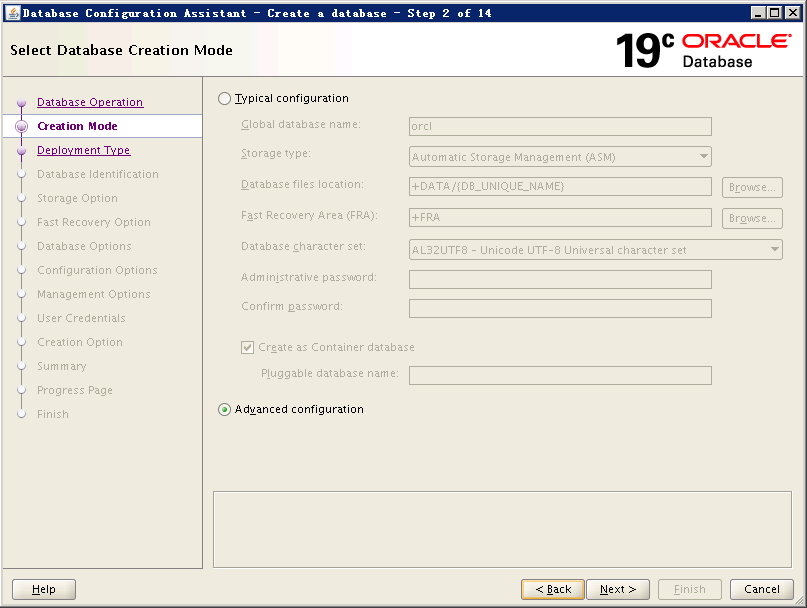

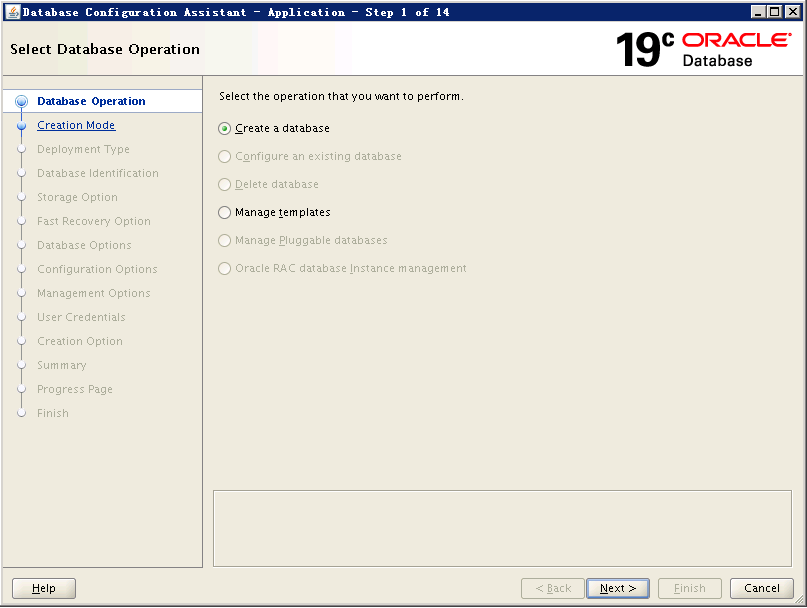

下面是DBCA建库的过程截图：

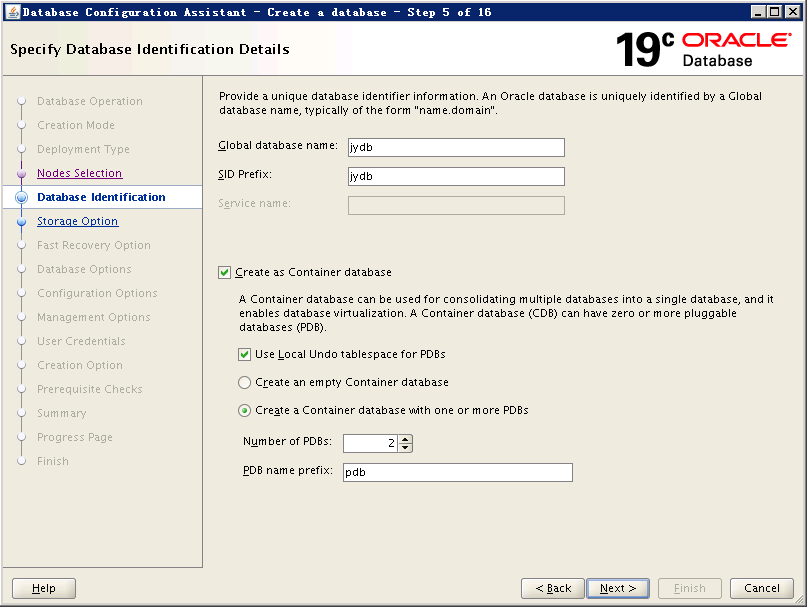

注：这里选择是否启用CDB，并定义CDB和PDB的名称。我选择启用CDB，CDB名称为jydb，并自动创建2个PDB，前缀名就叫pdb。

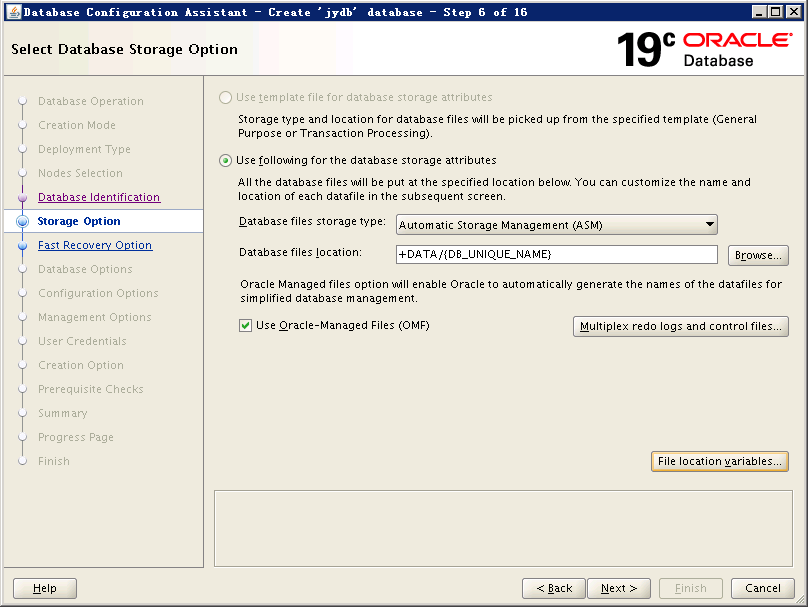

注：这里我选择使用OMF，默认也是使用OMF。

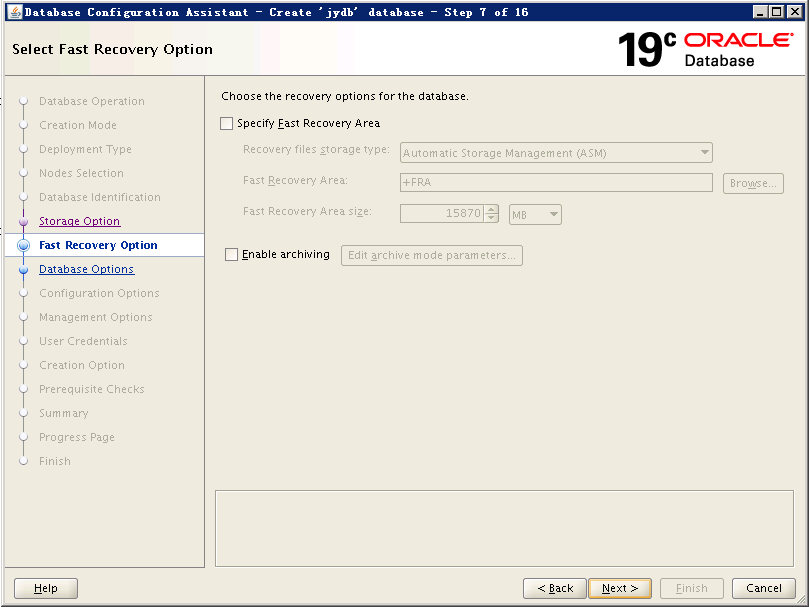

注：这里我暂时没有启用FRA，后续调整开归档时将归档文件放在+FRA磁盘组中。

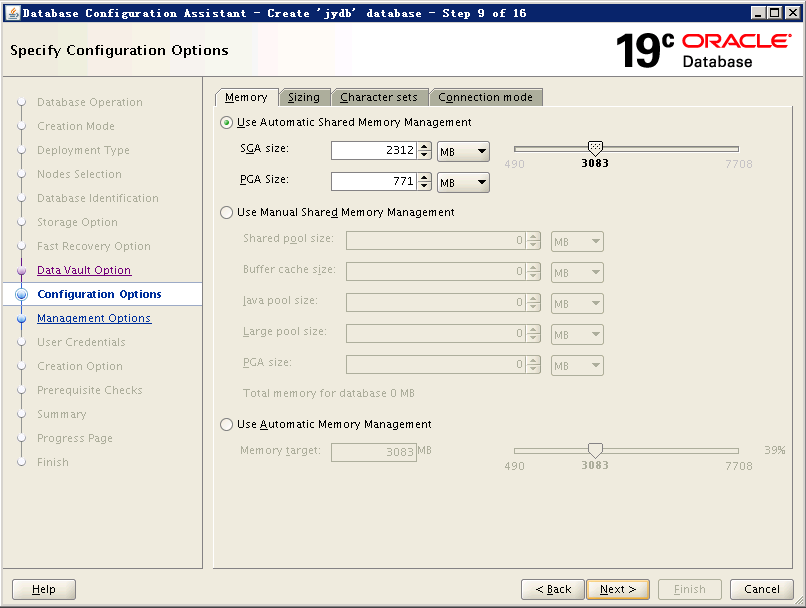

注：这里选择内存分配具体值，选择数据库的字符集，我这里没选择，字符集默认是AL32UTF8。需要根据实际情况修改。

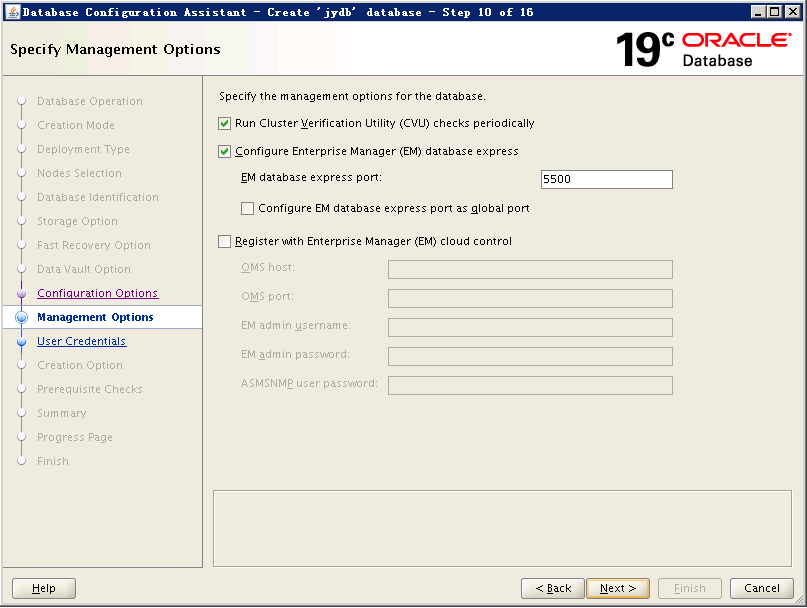

注：这里可以选择是否配置EM，我这里选择配置，如果你不需要，可以选择不配置。CVU一般也不配置，我这里学习目的选择配置。

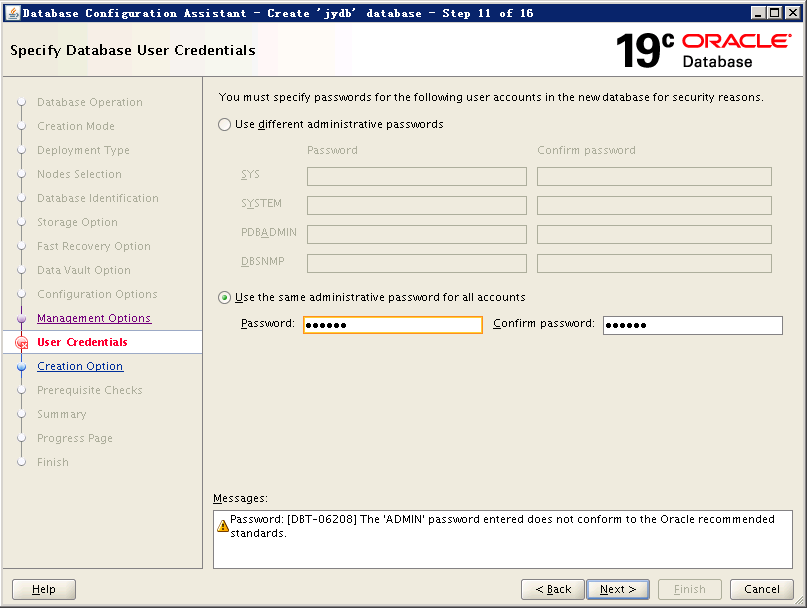

注：这里设置密码，我实验环境直接oracle，不符合规范，生产环境建议设置复杂密码。

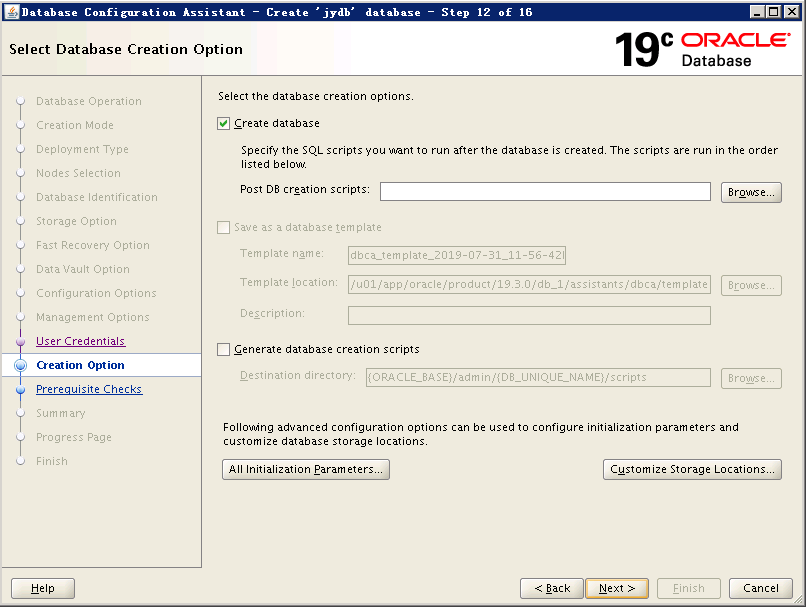

注：这里可以选择将创建数据库的脚本保存下来，根据你的需求，可选可不选。

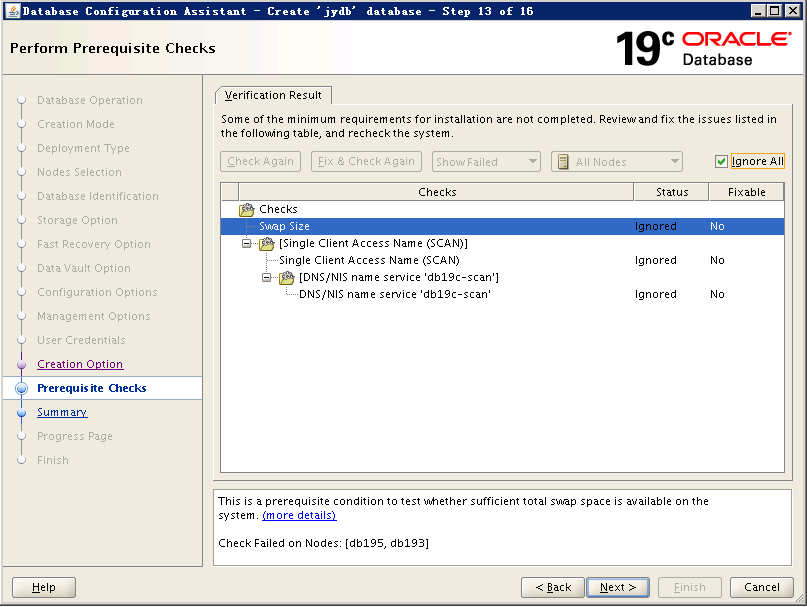

注：这里如果还有其他的检查未通过，则不能忽略。我这里是因为使用一个scan，对应报错可以忽略。

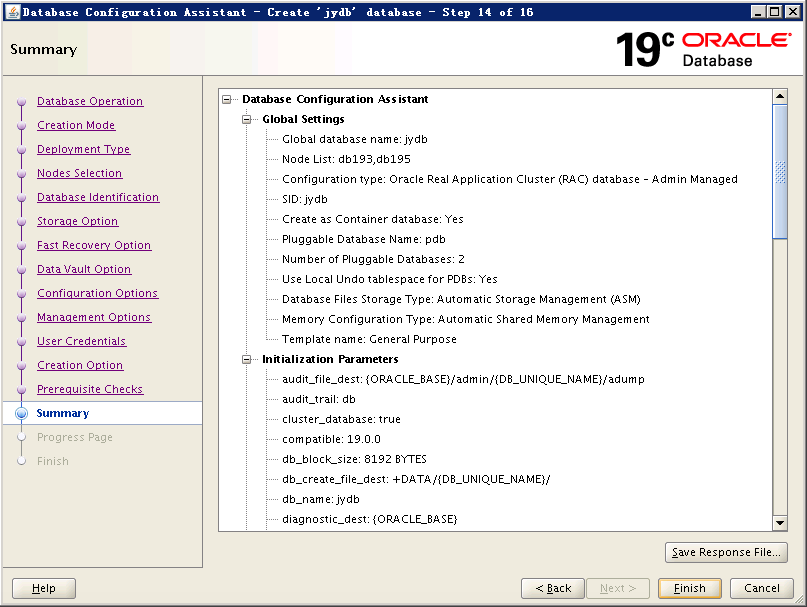

注：这里是安装信息的概览，建议认真核实，如果有不对的还可以退回去改。确认无误后开始创建数据库。

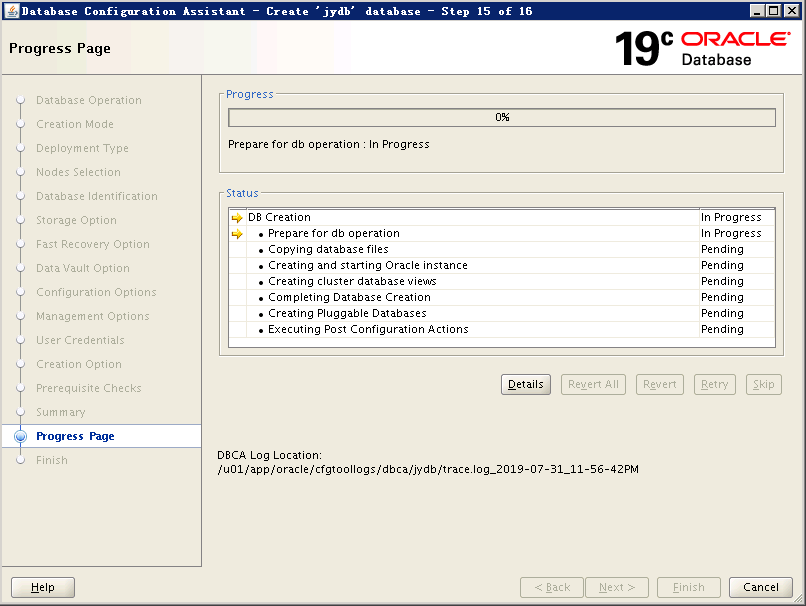

注：19c建库的时间还是和18c一样，长到让人崩溃，感觉以后DBA安装过程中可以提前下几个电影来边等边看了。
INFO: Aug 01, 2019 4:42:58 AM oracle.assistants.common.base.driver.AssistantConfigDriver updateExitStatus INFO: Total time taken for DBCA operation in mm:ss is 286:16

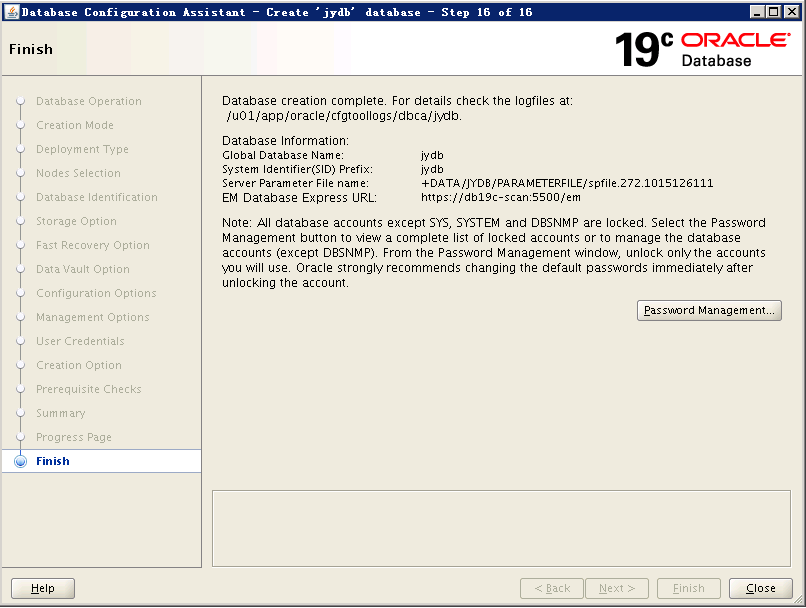

至此，Oracle 19.3 RAC数据库已经创建成功，目前如果你的企业想上12c系列的数据库，推荐直接选择19c（12c的最终版本12.2.0.3），19c相对18c来说更趋于稳定，Oracle的支持周期也更长。
grid用户登录，crsctl stat res -t 查看集群资源的状态，发现各节点的DB资源已经正常Open。
[grid@db193 ~]$ crsctl stat res -t--------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Local Resources--------------------------------------------------------------------------------ora.LISTENER.lsnr ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLE ora.chad ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLE ora.net1.network ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLE ora.ons ONLINE ONLINE db193 STABLE ONLINE ONLINE db195 STABLE--------------------------------------------------------------------------------Cluster Resources--------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLE ora.CRS.dg(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLE ora.DATA.dg(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 ONLINE OFFLINE STABLE ora.FRA.dg(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 ONLINE OFFLINE STABLE ora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE db193 STABLE ora.asm(ora.asmgroup) 1 ONLINE ONLINE db193 Started,STABLE 2 ONLINE ONLINE db195 Started,STABLE 3 OFFLINE OFFLINE STABLE ora.asmnet1.asmnetwork(ora.asmgroup) 1 ONLINE ONLINE db193 STABLE 2 ONLINE ONLINE db195 STABLE 3 OFFLINE OFFLINE STABLE ora.cvu 1 ONLINE ONLINE db193 STABLE ora.db193.vip 1 ONLINE ONLINE db193 STABLE ora.db195.vip 1 ONLINE ONLINE db195 STABLE ora.jydb.db 1 ONLINE ONLINE db193 Open,HOME=/u01/app/o racle/product/19.3.0 /db_1,STABLE 2 ONLINE ONLINE db195 Open,HOME=/u01/app/o racle/product/19.3.0 /db_1,STABLE ora.qosmserver 1 ONLINE ONLINE db193 STABLE ora.scan1.vip 1 ONLINE ONLINE db193 STABLE--------------------------------------------------------------------------------
oracle用户登录，sqlplus / as sysdba
[oracle@db193 ~]$ sqlplus / as sysdba SQL*Plus: Release 19.0.0.0.0 - Production on Thu Aug 1 06:49:29 2019 Version 19.3.0.0.0 Copyright (c) 1982, 2019, Oracle. All rights reserved. Connected to: Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production Version 19.3.0.0.0SQL> select inst_id, name, open_mode from gv$database; INST_ID NAME OPEN_MODE ---------- --------- -------------------- 1 JYDB READ WRITE 2 JYDB READ WRITESQL> show con_idCON_ID ------------------------------ 1SQL> show con_nameCON_NAME ------------------------------CDB$ROOTSQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 PDB1 READ WRITE NO 4 PDB2 READ WRITE NOSQL> alter session set container = pdb2;Session altered.SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 4 PDB2 READ WRITE NOSQL> select name from v$datafile;NAME -------------------------------------------------------------------------------- +DATA/JYDB/8F00F4E12A9F708DE053C101A8C0395D/DATAFILE/system.280.1015129671 +DATA/JYDB/8F00F4E12A9F708DE053C101A8C0395D/DATAFILE/sysaux.281.1015129671 +DATA/JYDB/8F00F4E12A9F708DE053C101A8C0395D/DATAFILE/undotbs1.279.1015129669 +DATA/JYDB/8F00F4E12A9F708DE053C101A8C0395D/DATAFILE/undo_2.283.1015129973 +DATA/JYDB/8F00F4E12A9F708DE053C101A8C0395D/DATAFILE/users.284.1015130015SQL>
可以看到所有的资源均正常，至此，整个在OEL 7.6 上安装 Oracle 19.3 GI & RAC 的工作已经全部结束。
About Me
........................................................................................................................
● 本文作者：小麦苗，部分内容整理自网络，若有侵权请联系小麦苗删除
● 本文在itpub、博客园、CSDN和个人微 信公众号（ xiaomaimiaolhr）上有同步更新
● 本文itpub地址： http://blog.itpub.net/26736162
● 本文博客园地址： http://www.cnblogs.com/lhrbest
● 本文CSDN地址： https://blog.csdn.net/lihuarongaini
● 本文pdf版、个人简介及小麦苗云盘地址： http://blog.itpub.net/26736162/viewspace-1624453/
● 数据库笔试面试题库及解答： http://blog.itpub.net/26736162/viewspace-2134706/
● DBA宝典今日头条号地址： http://www.toutiao.com/c/user/6401772890/#mid=1564638659405826
........................................................................................................................
● QQ群号： 230161599 、618766405
● 微 信群：可加我微 信，我拉大家进群，非诚勿扰
● 联系我请加QQ好友 （ 646634621 ），注明添加缘由
● 于 2019-08-01 06:00 ~ 2019-08-31 24:00 在西安完成
● 最新修改时间：2019-08-01 06:00 ~ 2019-08-31 24:00
● 文章内容来源于小麦苗的学习笔记，部分整理自网络，若有侵权或不当之处还请谅解
● 版权所有，欢迎分享本文，转载请保留出处
........................................................................................................................
● 小麦苗的微店： https://weidian.com/s/793741433?wfr=c&ifr=shopdetail
● 小麦苗出版的数据库类丛书： http://blog.itpub.net/26736162/viewspace-2142121/
● 小麦苗OCP、OCM、高可用网络班： http://blog.itpub.net/26736162/viewspace-2148098/
● 小麦苗腾讯课堂主页： https://lhr.ke.qq.com/
........................................................................................................................
使用 微 信客户端扫描下面的二维码来关注小麦苗的微 信公众号（ xiaomaimiaolhr）及QQ群（DBA宝典）、添加小麦苗微 信， 学习最实用的数据库技术。
........................................................................................................................
