(NO.00004)iOS实现打砖块游戏(十三):伸缩自如,我是如意金箍棒(下)!

大熊猫猪·侯佩原创或翻译作品.欢迎转载,转载请注明出处. 如果觉得写的不好请告诉我,如果觉得不错请多多支持点赞.谢谢! hopy ;)

准备缩短反弹棒素材

和上一篇类似,我们如法炮制一张缩短后反弹棒的素材.

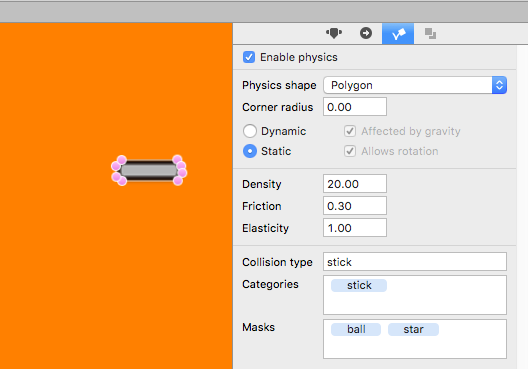

打开SpriteBuilder,新建StickShorter.ccb文件,按下图绘制其sprite帧和物理对象:

注意,在Ai中缩小和放大原来反弹棒的图片时,只要沿X轴一个方向放大即可,否则在Y轴方向也会变大,这就不是我们想要的了.

创建缩短道具星

我们用红色的星星表示缩短道具,所以spawStar中是这样写的:

case brkColorRed:
            star = [Star starWithType:starTypeStickShorter]; break;

在GameScene.m中,在星星与反弹棒碰撞的代码中,加入如下代码:

case starTypeStickShorter: @synchronized(self){
                [self scheduleBlock:^(CCTimer *timer){
                    [Star doStickShorterWork:self.stickInGameScene];
                } delay:0];
            } break;

好了,最后我们回到Star.m中添加doStickShorterWork方法:

+(void)doStickShorterWork:(Stick *)stick{
    GameScene *gameScene = [GameScene sharedGameScene]; CCPhysicsNode *physicsWorld = (CCPhysicsNode*)stick.parent; @synchronized(gameScene){
        if ([stick.name isEqualToString:@"stickShorter"]) {
            return; }

        if ([stick.name isEqualToString:@"stickLonger"]) {
            Stick *stickNormal = [Stick stickNormal]; stickNormal.position = stick.position; [stick removeFromParent]; //[physicsWorld removeChild:stick cleanup:YES]; [physicsWorld addChild:stickNormal]; gameScene.stickInGameScene = stickNormal; return; }
    }

    CGPoint position = stick.position; __block Stick *stickShorter; @synchronized(gameScene){
        stickShorter = [Stick stickShorter]; [stick removeFromParent]; //[physicsWorld removeChild:stick cleanup:YES]; stickShorter.position = position; [physicsWorld addChild:stickShorter]; stickShorter.visible = NO; gameScene.stickInGameScene = stickShorter; CCSprite *stickNode = (CCSprite*)[CCBReader load:@"Elements/StickNode"]; stickNode.position = stickShorter.position; [gameScene addChild:stickNode z:50]; CCActionScaleTo *shorterAction = [CCActionScaleTo actionWithDuration:0.4f scaleX:0.5f scaleY:1.0f]; CCActionCallBlock *blk = [CCActionCallBlock actionWithBlock:^{
            [stickNode removeFromParent]; stickShorter.visible = YES; }]; CCActionSequence *seq = [CCActionSequence actions:shorterAction,blk,nil]; [stickNode runAction:seq]; }

    [stickShorter scheduleBlock:^(CCTimer *timer){
        @synchronized(gameScene){
            Stick *stickNormal = [Stick stickNormal]; stickNormal.position = stickShorter.position; [stickShorter removeFromParent]; [physicsWorld addChild:stickNormal]; gameScene.stickInGameScene = stickNormal; }
    } delay:10]; }

大家可以和变长的对应代码对比下,基本都是一样的.

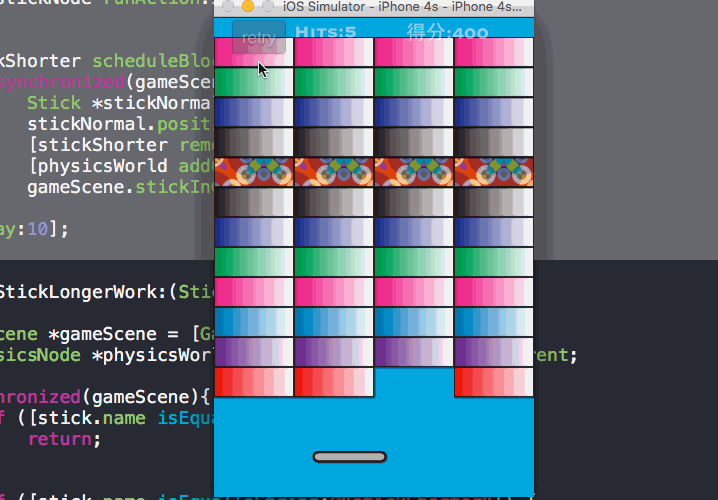

下面编译运行游戏,效果如下:

大家可以在变短和变长中添加更多的特效,脑洞打开吧,童鞋们 ;)
