matlab 全自动汉诺塔

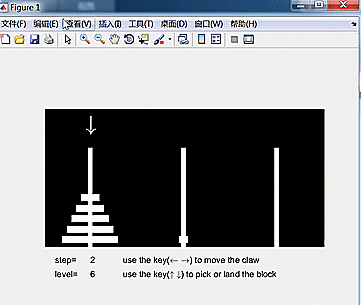

c语言课本上有一段用递归函数解汉诺塔的方法，我将其用matlab写了出来并用之前的汉诺塔程序将其可视化： 游戏效果 完整代码

function hano_auto(level) if nargin < 1 level=6; end
hold on,axis equal axis(0.5+[0,120,0,60]) set(gca,'xtick',[],'ytick',[],'xcolor','w','ycolor','w') set(gca,'color','k') ground=[120.5,1.5;120.5,0.5;0.5,0.5;0.5,1.5]; column_1=[21,1.5;21,44;19,44;19,1.5]; column_2=[61,1.5;61,44;59,44;59,1.5]; column_3=[101,1.5;101,44;99,44;99,1.5]; step=0; arrow=[1];k=1.5;control=1; A=[];B=[];C=[]; A=level:-1:1; block_1=@(l,h)[20+2*l,3*h-1.5;20+2*l,3*h+1.5;20-2*l,3*h+1.5;20-2*l,3*h-1.5]; block_2=@(l,h)[60+2*l,3*h-1.5;60+2*l,3*h+1.5;60-2*l,3*h+1.5;60-2*l,3*h-1.5]; block_3=@(l,h)[100+2*l,3*h-1.5;100+2*l,3*h+1.5;100-2*l,3*h+1.5;100-2*l,3*h-1.5]; block__=@(l,p)[p+2*l,45-1.5;p+2*l,45+1.5;p-2*l,45+1.5;p-2*l,45-1.5]; set(gcf,'tag','co','CloseRequestFcn',@clo); function clo(~,~) control=0; delete(findobj('tag','co')); clf
        close
    end


    function draw(~,~) delete(findobj(gcf,'type','text')) delete(findobj(gcf,'type','patch')) text(5,-4,'step=') text(20,-4,num2str(step)) text(5,-10,'level=') text(20,-10,num2str(level)) text(34,-4,'use the key(\leftarrow \rightarrow) to move the claw') text(34,-10,'use the key(\uparrow \downarrow) to pick or land the block') fill(ground(:,1),ground(:,2),'w','EdgeColor','none') fill(column_1(:,1),column_1(:,2),'w','EdgeColor','none') fill(column_2(:,1),column_2(:,2),'w','EdgeColor','none') fill(column_3(:,1),column_3(:,2),'w','EdgeColor','none') text(40*arrow(1)-20-2,55,'\downarrow','Color','w','Fontsize',25) if length(arrow)==2 p=40*arrow(1)-20; block=block__(arrow(2),p); fill(block(:,1),block(:,2),'w','EdgeColor','none') end for i=1:length(A) block=block_1(A(i),k*i); fill(block(:,1),block(:,2),'w','EdgeColor','none') end for i=1:length(B) block=block_2(B(i),k*i); fill(block(:,1),block(:,2),'w','EdgeColor','none') end for i=1:length(C) block=block_3(C(i),k*i); fill(block(:,1),block(:,2),'w','EdgeColor','none') end if length(C)==level pause(0.2) buttonName1=questdlg('Congratulations! You win','you win','close','restart','next level','close'); if isempty(buttonName1) buttonName1='end'; end if strcmp(buttonName1,'restart') hano_auto(level) end if strcmp(buttonName1,'close') close; end if strcmp(buttonName1,'next level') if level<10 hano_auto(level+1) end if level==10 msgbox('it is already the highest level') end
            end
        end
    end

   function key(event) switch event case 'leftarrow' if arrow(1)-1~=0 arrow(1)=arrow(1)-1;step=step+1; end case 'rightarrow' if arrow(1)-3~=0 arrow(1)=arrow(1)+1;step=step+1; end case 'uparrow' if length(arrow)==1 if (arrow(1)==1)&&(~isempty(A)) arrow=[arrow(1),A(end)]; A(end)=[]; end if (arrow(1)==2)&&(~isempty(B)) arrow=[arrow(1),B(end)]; B(end)=[]; end if (arrow(1)==3)&&(~isempty(C)) arrow=[arrow(1),C(end)]; C(end)=[]; end
           end case 'downarrow' if length(arrow)==2 if (arrow(1)==1) if isempty(A) A=[A,arrow(2)]; arrow(2)=[]; else if A(end)>arrow(2) A=[A,arrow(2)]; arrow(2)=[]; end
                   end
               end if (arrow(1)==2) if isempty(B) B=[B,arrow(2)]; arrow(2)=[]; else if B(end)>arrow(2) B=[B,arrow(2)]; arrow(2)=[]; end
                   end
               end if (arrow(1)==3) if isempty(C) C=[C,arrow(2)]; arrow(2)=[]; else if C(end)>arrow(2) C=[C,arrow(2)]; arrow(2)=[]; end
                   end
               end
           end
   end pause(0.2) if control==1 draw() else pause
   end
   end draw() matrix=[1 2 3]; digui(level,matrix) function digui(n,structdigui) if n==1 move(structdigui(1),structdigui(3)); else digui(n-1,[structdigui(1),structdigui(3),structdigui(2)]) move(structdigui(1),structdigui(3)) digui(n-1,[structdigui(2),structdigui(1),structdigui(3)]) end
    end
    function move(a,b) while arrow(1)~=a if arrow(1)>a key('leftarrow') end if arrow(1)<a key('rightarrow') end
        end key('uparrow') while arrow(1)~=b if arrow(1)>b key('leftarrow') end if arrow(1)<b key('rightarrow') end
        end key('downarrow') end


end
