MATLAB有趣或有用小程序合集

最近编辑时间：2021-5-11 这是一些比较有趣，但是感觉不值得单独发文章的小程序合集： 不定时更新，大家可以闲的没事来淘个宝

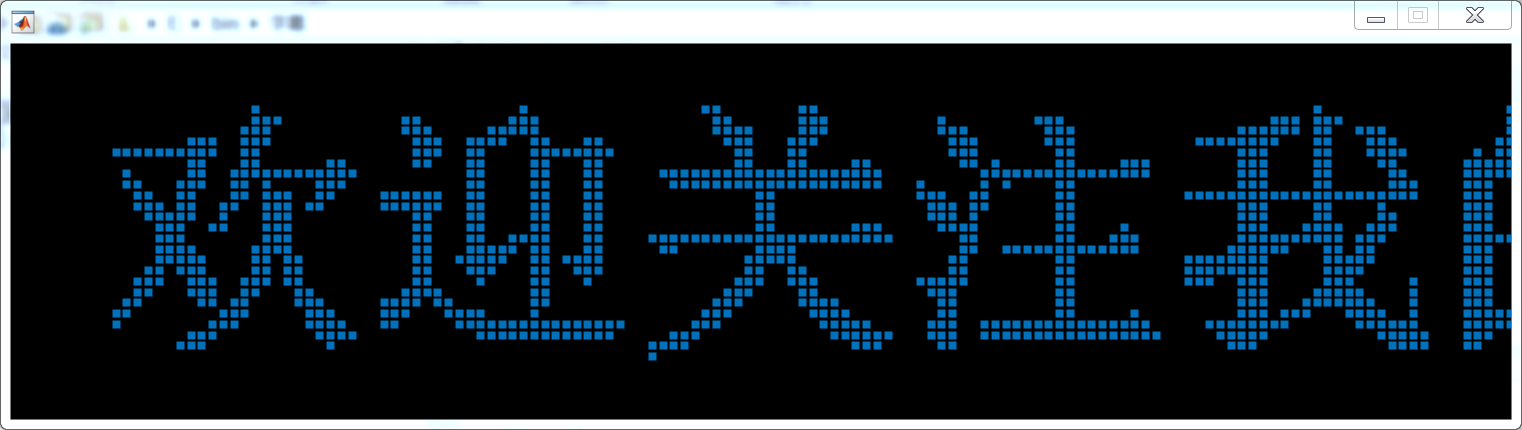

1.字幕画

动图：

代码分为两个m文件 直接运行drawCaption或命令行打出 drawCaption(‘想发的文字’)即可

drawCaption.m

function drawCaption(string) if nargin<1 string='欢迎关注我的CSDN'; end
string=[string,' ']; CaptionMat=zeros(25*length(string),25); for i=1:length(string) CaptionMat(25*(i-1)+1:25*i,:)=getWordMatrix(string(i)); end CaptionMat=[CaptionMat;CaptionMat;CaptionMat]; fig=figure('units','pixels',... 'position',[100 300 1000 250],... 'Numbertitle','off',... 'Color',[0 0 0],... 'resize','off',... 'menubar','none'); ax=axes('Units','pixels',... 'parent',fig,... 'Color',[0 0 0],... 'Position',[0 0 1000 250],... 'XLim',[0 140],... 'YLim',[0-5 25+5],... 'XColor',[0 0 0],... 'YColor',[0 0 0]); hold(ax,'on') [xSet,ySet]=find(CaptionMat~=0); offset=0; drawHdl=scatter(xSet+140-offset,ySet,28,'s','filled'); fps=25; DCtimer=timer('ExecutionMode', 'FixedRate', 'Period',1/fps, 'TimerFcn', @refreshWord); start(DCtimer) function refreshWord(~,~) offset=offset+1; if mod(offset,length(string)*50)==0 offset=offset-length(string)*25; end set(drawHdl,'XData',xSet+140-offset) end
end

getWordMatrix.m

function wordMatrix=getWordMatrix(char) fig=figure('units','pixels',... 'position',[20 20 160 160],... 'Numbertitle','off',... 'Color',[1 1 1],... 'resize','off',... 'visible','off',... 'menubar','none'); ax=axes('Units','pixels',... 'parent',fig,... 'Color',[1 1 1],... 'Position',[0 0 160 160],... 'XLim',[0 16],... 'YLim',[0 16],... 'XColor',[1 1 1],... 'YColor',[1 1 1]); hold(ax,'on') %,'FontWeight','bold text(ax,8,8.5,char,'HorizontalAlignment','center','FontSize',120) if 1 saveas(fig,['.\',char,'.png']); pic=imread(['.\',char,'.png']); delete(['.\',char,'.png']) delete(ax) close [rowMax,colMax,~]=size(pic); picData=pic(:,:,1); picData(picData<125)=1; picData(picData>=125)=0; wordMatrix=zeros(25,25); for i=1:25 rowLim=round([i-1,i]./25.*rowMax); rowLim(rowLim==0)=1; for j=1:25 colLim=round([j-1,j]./25.*colMax); colLim(colLim==0)=1; wordMatrix(i,j)=sum(sum(picData(rowLim(1):rowLim(2),colLim(1):colLim(2)))); end
end wordMatrix(wordMatrix<10)=0; wordMatrix=wordMatrix'; wordMatrix=wordMatrix(:,end:-1:1); wordMatrix(wordMatrix~=0)=1; end
end

2.鱼形曲线

函数来自万能的知乎 代码：

hold on
axis equal
grid on X=0:1:1023; Y=0:1:1023; [gridX,gridY]=meshgrid(X,Y); FishPatternFcn=@(x,y)mod(abs(x.*sin(sqrt(x))+y.*sin(sqrt(y))).*pi./1024,1); contour(gridX,gridY,FishPatternFcn(gridX,gridY),[0.7,0.7])

3.鼠标沙盘

代码：

function getPointer
fg=figure; fg.NumberTitle='off'; fg.MenuBar='none'; fg.Resize='off'; fg.Position=[100 100 500 500]; fg.Name='getPointer'; ax=axes(fg); ax.Position=[0 0 1 1]; ax.XLim=[-1 101]; ax.YLim=[-1 101]; ax.Color=[0 0 0]; hold(ax,'on'); [xSet,ySet]=meshgrid(0:100,0:100); xSet=xSet(:);ySet=ySet(:); oriX=xSet;oriY=ySet; sc=scatter(xSet,ySet,1,'filled','CData',[1 1 1]); set(gcf,'WindowButtonMotionFcn',@whilemovefcn) function whilemovefcn(~,~) xy=get(gca,'CurrentPoint'); x=xy(1,1);y=xy(1,2); nearPos=sqrt((xSet-x).^2+(ySet-y).^2)<5; xySet=[xSet,ySet]; dir=[xSet,ySet]-[x,y]; len=sqrt((xSet-x).^2+(ySet-y).^2); moveDis=5.8./(len+1); newPos=dir.*moveDis+[x,y]; xySet(nearPos,:)=newPos(nearPos,:); set(sc,'XData',xySet(:,1),'YData',xySet(:,2)) xSet=xySet(:,1);ySet=xySet(:,2); end

fps=50; gptimer=timer('ExecutionMode', 'fixedRate', 'Period',1/fps, 'TimerFcn', @gp); start(gptimer) function gp(~,~) dirX=oriX-xSet; dirY=oriY-ySet; xSet=xSet+dirX.*(1/15); ySet=ySet+dirY.*(1/15); set(sc,'XData',xSet,'YData',ySet) end
end

4.地图寻路演示

代码：

function maze
fg=gcf; fg.MenuBar='none'; ax=axes(fg); ax.XLim=[0.5 30.5]; ax.YLim=[0.5 20]; ax.Position=[0 0 1 1]; ax.YDir='reverse'; ax.Toolbar.Visible='off'; ax.DataAspectRatio=[1 1 1]; ax.XColor=[.98 .98 .98]; ax.YColor=[.98 .98 .98]; hold(ax,'on') Map=[1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1; 5 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 1 0 1 0 1 0 0 0 0 0 0 0 1; 1 1 1 1 0 1 0 1 0 1 1 1 0 1 1 1 0 0 0 0 0 0 0 1 1 1 1 1 0 1; 1 0 0 1 0 0 0 1 0 0 0 1 0 0 0 0 0 1 1 1 0 1 0 0 0 0 0 1 0 1; 1 1 0 1 1 1 1 1 0 1 1 1 0 1 0 1 0 0 1 1 1 1 0 1 1 1 1 1 0 1; 1 0 0 0 0 0 0 0 0 0 0 1 0 1 0 1 1 0 1 0 1 0 0 0 0 1 0 0 0 1; 1 1 0 1 1 1 1 1 1 1 0 1 0 1 1 1 0 0 0 0 1 1 1 1 0 1 0 1 1 1; 1 1 0 0 0 0 0 1 0 1 0 1 0 1 0 1 1 0 1 1 1 0 0 0 0 1 0 0 0 1; 1 1 1 1 0 1 1 1 0 1 0 1 0 0 0 1 0 0 1 0 0 0 1 1 0 1 1 1 0 1; 1 0 0 0 0 1 0 0 0 0 0 1 1 1 1 1 1 1 1 0 1 1 1 1 0 1 0 0 0 1; 1 0 1 1 1 1 1 1 1 1 1 1 0 0 1 0 0 0 0 0 0 1 0 1 1 1 0 1 1 1; 1 0 0 1 0 0 0 1 0 0 0 0 0 1 1 1 0 1 1 0 1 1 0 1 0 0 0 0 0 1; 1 1 0 0 0 1 0 0 0 1 0 1 0 1 0 0 0 0 0 0 0 1 0 1 0 1 0 1 0 1; 1 0 0 1 1 1 1 0 1 1 0 1 0 1 1 1 1 1 0 1 1 1 0 1 1 1 1 1 1 1; 1 1 1 1 0 0 0 0 1 0 0 1 0 1 0 1 1 1 0 0 0 1 0 0 0 0 0 0 0 1; 1 1 0 1 1 1 1 1 1 1 1 1 0 1 0 0 0 1 1 1 0 1 1 1 0 1 1 1 0 1; 1 1 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 1 0 0 0 0 0 0 0 1 0 0 0 1; 1 0 0 1 1 1 0 1 1 1 0 1 1 1 0 1 0 1 1 1 1 0 1 1 0 1 0 1 1 1; 1 1 0 0 0 1 0 0 0 1 0 0 0 0 0 1 0 1 1 0 0 0 1 0 0 1 0 0 0 4; 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1]; mazeImage=imagesc(Map); [startPnt.x,startPnt.y]=find(Map==5); [endPnt.x,endPnt.y]=find(Map==4); Dir=[1 0;0 -1;-1 0;0 1]; Path=[startPnt.x,startPnt.y]; breakflag=1; while(breakflag) tailPnt=Path(end,:); flag=0; for i=1:4 if (tailPnt(1)+Dir(i,1)>=1&&tailPnt(1)+Dir(i,1)<=20&&... tailPnt(2)+Dir(i,2)>=1&&tailPnt(2)+Dir(i,2)<=30)&&... (Map(tailPnt(1)+Dir(i,1),tailPnt(2)+Dir(i,2))==0||... Map(tailPnt(1)+Dir(i,1),tailPnt(2)+Dir(i,2))==4) flag=i;break; end
    end if flag==0 Map(tailPnt(1),tailPnt(2))=3; Path(end,:)=[]; else if Map(tailPnt(1)+Dir(flag,1),tailPnt(2)+Dir(flag,2))==4 breakflag=0; else Map(tailPnt(1)+Dir(flag,1),tailPnt(2)+Dir(flag,2))=2; Path=[Path;tailPnt(1)+Dir(flag,1),tailPnt(2)+Dir(flag,2)]; end
    end pause(0.02) delete(mazeImage); mazeImage=imagesc(Map); end



end

5.樱花树

会生成随机形状樱花树

function sakura
hold on,axis equal axis(0.5+[-10,50,0,50]) set(gca,'xtick',[],'ytick',[],'xcolor','w','ycolor','w') set(gca,'color',[0.5020 0.5020 0.5020]) length_trunk=6; width_trunk=4; k1=0.9; k2=0.8; number_branch=15; alp=pi/10; length_branch=k1*length_trunk; width_branch=k2*width_trunk; trunk=[12,0;12,length_trunk]; plot(trunk(:,1),trunk(:,2),'color',[0 0 0],'Linewidth',width_trunk) begins=[trunk(2,:),pi/2,1]; grow=begins; plotdata=[0 0 0 0 0 0 0 0]; plotdata(1,:)=[]; for i=1:number_branch
    control=randi(25,[length(grow(:,1)),1])>=10; ag=grow(:,3); l=length(ag); parta=[length_branch.*k1.^grow(:,4).*cos(ag+ones(l,1)*alp),length_branch.*k1.^grow(:,4).*sin(ag+ones(l,1)*alp),ones(l,1)*alp,ones(l,1)]; partb=[length_branch.*k1.^grow(:,4).*cos(ag-ones(l,1)*alp),length_branch.*k1.^grow(:,4).*sin(ag-ones(l,1)*alp),-ones(l,1)*alp,ones(l,1)]; parta2=[0.8.*length_branch.*k1.^grow(:,4).*cos(ag),0.8.*length_branch.*k1.^grow(:,4).*sin(ag),zeros(l,1),ones(l,1)]; partb2=[0.8.*length_branch.*k1.^grow(:,4).*cos(ag),0.8.*length_branch.*k1.^grow(:,4).*sin(ag),zeros(l,1),ones(l,1)]; parta=control.*parta+(~control).*parta2; partb=control.*partb+(~control).*partb2; parta=parta+grow; partb=partb+grow; congress=[parta;partb]; grow=[grow;grow]; judge=[grow,congress]; judge=unique(judge,'rows'); grow=judge(:,5:end); plotdata=[plotdata;judge]; end for i=1:number_branch
    temp_w=width_branch*0.8^i; temp_branch=plotdata(plotdata(:,4)==i,:); plx=[temp_branch(:,1),temp_branch(:,5)]; ply=[temp_branch(:,2),temp_branch(:,6)]; plx=plx';ply=ply'; plot(plx,ply,'color',[0 0 0]+i*[0.3020 0.3020 0.3020]./number_branch,'Linewidth',temp_w) end

bloom_pos=plotdata(plotdata(:,8)==number_branch+1,[5,6]); scatter(bloom_pos(:,1),bloom_pos(:,2),10,'CData',[0.8549 0.6824 0.6824]) bloom_pos=plotdata(plotdata(:,8)==number_branch,[5,6]); scatter(bloom_pos(:,1),bloom_pos(:,2),8,'CData',[0.7451 0.5961 0.5961].*0.97) end

6.字符画

将图像转为字符画并存到test.txt内 为了显示全可将txt内文本字体大小调小 由于字间距问题图像会被略微拉长

function StringPic sizecol=256; OriPic=imread('图片存储位置'); tempcol=size(OriPic,2); tempmul=sizecol/tempcol; OriPic=imresize(OriPic,tempmul,'nearest'); GraPic=sum(OriPic,3)./3;if any(GraPic>1) GraPic=GraPic./255; end FillChar='$W&@E#8}]=+;;,,.. '; FillChar_Len=length(FillChar); GraPic=floor(GraPic./(1/(FillChar_Len-1)))+1; for i=1:size(GraPic,1) for j=1:size(GraPic,2) StrPic(i,j)=FillChar(GraPic(i,j)); end
end
filename='test.txt'; writematrix(StrPic,filename,'delimiter','tab') end

7.you need MATLAB

function life_is_short_I_choose_Python error('Life is short, you need MATLAB') end

function life_is_short_I_choose_Python
ME = MException('MATLAB:test','Life is short, you need MATLAB');throw(ME) end

上下俩写法效果一样的：

8.图片各通道亮度频数直方图

彩图直方图绘制效果： 灰度图直方图绘制效果：

代码： 使用的时候改变imread中的图片文件路径即可

function HistogramPic pic=imread('test.jpg'); %pic=rgb2gray(pic); FreqNum=zeros(size(pic,3),256); for i=1:size(pic,3) for j=0:255 FreqNum(i,j+1)=sum(sum(pic(:,:,i)==j)); end
end

ax=gca; hold(ax,'on') if size(FreqNum,1)==3 rBar=bar(0:255,FreqNum(1,:)); gBar=bar(0:255,FreqNum(2,:)); bBar=bar(0:255,FreqNum(3,:)); rBar.FaceColor=[0.6350 0.0780 0.1840]; gBar.FaceColor=[0.2400 0.5300 0.0900]; bBar.FaceColor=[0 0.4470 0.7410]; rBar.FaceAlpha=0.5; gBar.FaceAlpha=0.5; bBar.FaceAlpha=0.5; ax.XLabel.String='RGB brightness'; rrange=find(FreqNum(1,:)~=0); rrange=[num2str(rrange(1)-1),' , ',num2str(rrange(end)-1)]; grange=find(FreqNum(2,:)~=0); grange=[num2str(grange(1)-1),' , ',num2str(grange(end)-1)]; brange=find(FreqNum(3,:)~=0); brange=[num2str(brange(1)-1),' , ',num2str(brange(end)-1)]; legend({['R: range[',rrange,']'],... ['G: range[',grange,']'],... ['B: range[',brange,']']},... 'Location','northwest','Color',[0.9412 0.9412 0.9412],... 'FontName','Cambria','LineWidth',0.8,'FontSize',11); else kBar=bar(0:255,FreqNum(1,:)); kBar.FaceColor=[0.50 0.50 0.50]; kBar.FaceAlpha=0.5; ax.XLabel.String='Gray scale'; krange=find(FreqNum(1,:)~=0); krange=[num2str(krange(1)-1),' , ',num2str(krange(end)-1)]; legend(['Gray: range[',krange,']'],... 'Location','northwest','Color',[0.9412 0.9412 0.9412],... 'FontName','Cambria','LineWidth',0.8,'FontSize',11); end
box on
grid on ax.LineWidth = 1; ax.GridLineStyle='--'; ax.XLim=[-5 255]; ax.XTick=[0:45:255,255]; ax.XLabel.FontSize=13; ax.XLabel.FontName='Cambria'; ax.YLabel.String='Frequency number'; ax.YLabel.FontSize=13; ax.YLabel.FontName='Cambria'; end
