MATLAB | 迟到的圣诞树绘制

fig=figure('Units','normalized','Position',[.1,.05,.4,.8]);
ax=axes(fig);
hold(ax,'on');
ax.XTick=[];
ax.YTick=[];
ax.XColor='none';
ax.YColor='none';
ax.XLim=[0,600];
ax.YLim=[0,800];
ax.DataAspectRatio=[1 1 1];
ax.Color=[109,128,205]./255;


drawMist()      % 绘制雾气
drawMandS()     % 绘制星星和月亮
drawMountains() % 绘制山脉和雪地
drawXMasTree()  % 绘制圣诞树

% 雾气绘制函数
function drawMist()
    colMist=[181,137,190]./255;
    a=500;b=(.5:a)'/a;
    c=(-cos(b*2*pi)+1).^.2;
    f=b-.5;r=f'.^2+f.^2;

    % 二维柏林式噪声生成
    alp=abs(ifftn(exp(3i*rand(a))./r.^.8)).*(c*c');
    alp=alp./max(alp,[],'all');

    CMesh=zeros([size(alp),3]);
    CMesh(:,:,1)=colMist(1);
    CMesh(:,:,2)=colMist(2);
    CMesh(:,:,3)=colMist(3);

    % 越向上、雾气越透明
    dy=(500:-1:1)./500.*.8+.2;
    image([0,600],[200,800],CMesh,'AlphaData',alp.*(dy'));
end

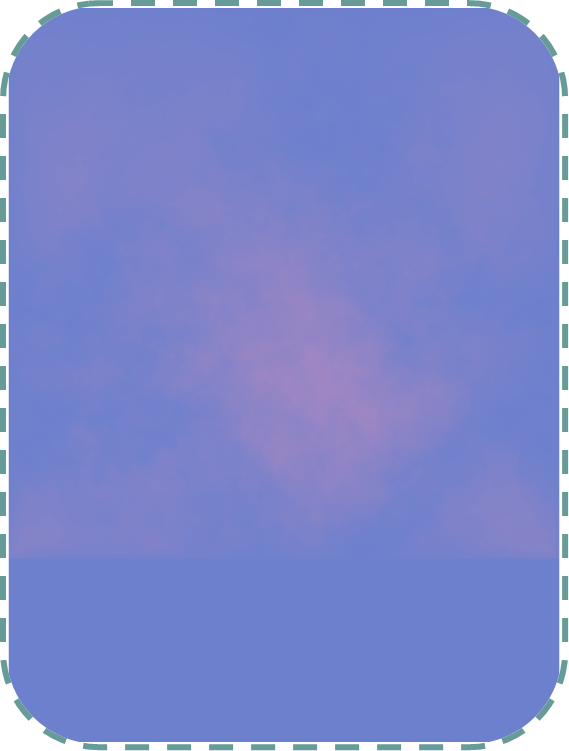

绘制效果：

% 星星月亮绘制函数
function drawMandS()
    % 绘制双层圆形当月亮
    t=0:pi/500:2*pi;
    fill(cos(t).*25+450,sin(t).*25+670,[236,235,253]./255,'EdgeColor','none')
    fill(cos(t).*30+450,sin(t).*30+670,[236,235,253]./255,'EdgeColor','none','FaceAlpha',.3)

    % 绘制散点当星星
    scatter(randi([0,600],[15,1]),randi([200,800],[15,1]),4,'filled',...
            'CData',[1 1 1],'MarkerFaceAlpha',.6);
end

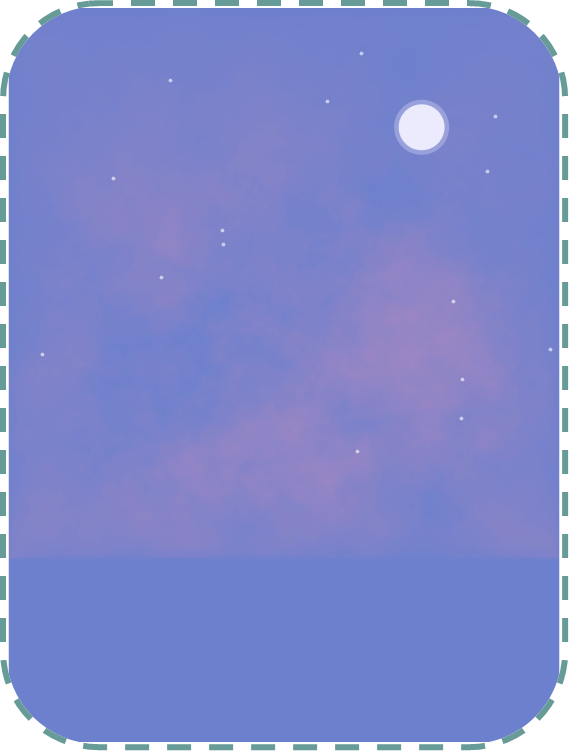

绘制效果：

% 山峰绘制函数
function drawMountains()
    % 绘制山峰- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    colFurther=[240 34 75];  % 远山的颜色
    colCloser=[219 43 60];   % 近山的颜色

    a=800;b=(.5:a)'/a;
    c=(-cos(b*2*pi)+1).^.2;
    f=b-.5;r=f'.^2+f.^2;
    % 8层山
    for i=1:8
        % 每次都生成一次二维柏林式噪声，并取其中一行的数据
        h=abs(ifftn(exp(5i*rand(a))./r.^1.05)).*(c*c').*10;
        nh=(8-i)*30+h(400,:)+180;
        hm=ceil(max(nh));
        CMesh=zeros([hm,800,3]);

        % 颜色矩阵构造，
        tcol=colFurther+(colCloser-colFurther)./8.*(i);
        tcol=hsv2rgb(tcol./[360,100,100]);
        CMesh(:,:,1)=tcol(1);
        CMesh(:,:,2)=tcol(2);
        CMesh(:,:,3)=tcol(3);

        % 用nan数值框出山的轮廓
        alp=ones(hm,800);
        alp((1:hm)'>nh)=nan;

        % 绘制山峰
        image([-50,650],[0,hm],CMesh,'AlphaData',alp.*0.98);
    end


    % 画个雪地- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    nh=h(800,:);
    fill([linspace(0,600,length(nh)),600,0],[nh./1.5+140,0,0],[218,222,234]./255,...
        'EdgeColor','none')

    % 雪地附近雾气- - - - - - - - - - - - - - - - - - - - - - - - - - -
    colMist=[155,172,198]./255.*1.2;
    a=500;b=(.5:a)'/a;
    c=(-cos(b*2*pi)+1).^.2;
    f=b-.5;r=f'.^2+f.^2;

    % 二维柏林式噪声生成
    alp=abs(ifftn(exp(3i*rand(a))./r.^.8)).*(c*c');
    alp=alp./max(alp,[],'all');

    CMesh=zeros([size(alp),3]);
    CMesh(:,:,1)=colMist(1);
    CMesh(:,:,2)=colMist(2);
    CMesh(:,:,3)=colMist(3);

    % 越向上、雾气越透明
    dy=(500:-1:1)./500.*.6+.2;
    image([0,600],[0,300],CMesh,'AlphaData',alp.*(dy'));
end

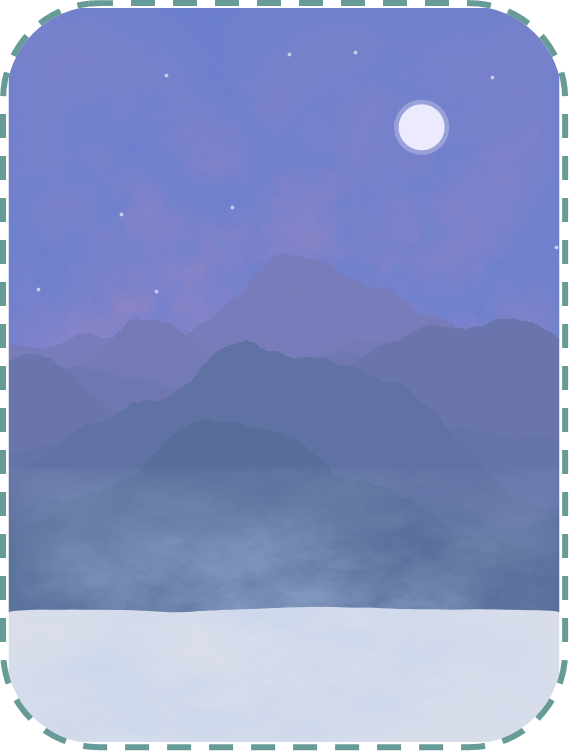

绘制效果：

% 圣诞树绘制函数
function drawXMasTree()

    % 绘制树干- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    c=zeros(1,4,3);
    c(1,1:2,1)=163./255;c(1,1:2,2)=165./255;c(1,1:2,3)=183./255;
    c(1,3:4,1)=85./255 ;c(1,3:4,2)=95./255 ;c(1,3:4,3)=130./255;
    patch([283,317,317,283],[100,100,180,180],c,'FaceColor','interp','EdgeColor','none')
    fill([283:317,317,283],[100+rand(1,35).*10,90,90],[207,217,235]./255,'EdgeColor','none')

    % 绘制树干粗糙花纹- - - - - - - - - - - - - - - - - - - - - - - - -
    a=400;b=(.5:a)'/a;
    c=(-cos(b*2*pi)+1).^.2;
    f=b-.5;r=f'.^2+f.^2;

    alp=abs(ifftn(exp(3i*rand(a))./r.^.8)).*(c*c');
    alp=alp./max(alp,[],'all');
    alp=alp(1:100,:);

    colTrunk=[160,162,177]./255;
    CMesh=zeros([size(alp),3]);
    CMesh(:,:,1)=colTrunk(1);
    CMesh(:,:,2)=colTrunk(2);
    CMesh(:,:,3)=colTrunk(3);

    dy=(100:-1:1)./100.*.8+.2;
    image([283,317],[100,180],CMesh,'AlphaData',alp.*(dy'));

    % 绘制树叶- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    colTree=[64,88,124]./255;
    a=100;b=(.5:a)'/a;
    c=(-cos(b*2*pi)+1).^.2;
    f=b-.5;r=f'.^2+f.^2;

    CMesh=zeros([a,a,3]);
    CMesh(:,:,1)=colTree(1);
    CMesh(:,:,2)=colTree(2);
    CMesh(:,:,3)=colTree(3);

    jList=[1,2,3,5,6,8,10,12,14,16,16,18,18,20,20,24,24,26,26,28,...
           28,30,30,32,32,32,32,34,32,32,30,26,26,20];
    for i=1:34
        % 二维柏林式噪声生成
        alp=abs(ifftn(exp(7i*rand(a))./r.^.9)).*(c*c');
        alp=alp./max(alp,[],'all');
        alp(alp=.5)=.7;
        for j=(1:jList(i))-jList(i)/2
            image([270,330]+j*6+(rand(1)-.5).*6,...
                  [200,260]+400-i*13+(rand(1)-.5).*3,CMesh,'AlphaData',alp);
        end
    end

    % 绘制五角星- - - - - - - - - - - - - - - - - - - - - - - - - - - -
    t=linspace(pi/2,2*pi+pi/2,11);
    l=ones(1,11);l(2:2:11)=.47;
    fill(cos(t).*26.*l+306,sin(t).*26.*l+640,[237,231,183]./255,...
        'EdgeColor','none','FaceAlpha',.9)

    % 绘制其他装饰物- - - - - - - - - - - - - - - - - - - - - - - - - -
    % 绘制彩带
    siny=-abs(sin(linspace(0,2.3*pi,100)))-linspace(0,2,100);
    plot(linspace(200,400,100),siny.*20+300,'Color',[198,137,159]./255,'LineWidth',2)

    siny=-abs(sin([linspace(0,pi,100),linspace(0,pi,40)]))-linspace(0,-5,140);
    plot(linspace(220,380,140),siny.*20+330,'Color',[198,137,159]./255,'LineWidth',2)

    siny=-abs(sin(linspace(0,1.2*pi,100)))-linspace(0,1.6,100);
    plot(linspace(260,350,100),siny.*20+520,'Color',[198,137,159]./255,'LineWidth',2)
    % 绘制装饰圆球
    scatter([-50,20,20,50]+300,[-80,-25,70,-160]+400,50,'filled','CData',[152,173,176]./255);
    scatter([-45,0,20,-60]+300,[110,30,140,-160]+400,50,'filled','CData',[109,133,212]./255);
    scatter([-30,70]+300,[90,-180]+400,50,'filled','CData',[203,202,181]./255);
end

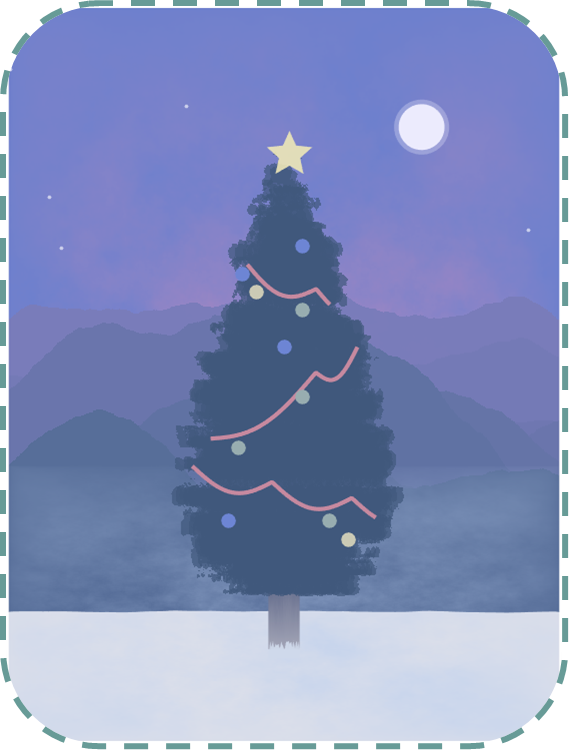

绘制效果：

function XmasTree
fig=figure('Units','normalized','Position',[.1,.05,.4,.8]);
ax=axes(fig);
hold(ax,'on');
ax.XTick=[];
ax.YTick=[];
ax.XColor='none';
ax.YColor='none';
ax.XLim=[0,600];
ax.YLim=[0,800];
ax.DataAspectRatio=[1 1 1];
ax.Color=[109,128,205]./255;


drawMist()      % 绘制雾气
drawMandS()     % 绘制星星和月亮
drawMountains() % 绘制山脉和雪地
drawXMasTree()  % 绘制圣诞树


% =========================================================================
% 雾气绘制函数
    function drawMist()
        colMist=[181,137,190]./255;
        a=500;b=(.5:a)'/a;
        c=(-cos(b*2*pi)+1).^.2;
        f=b-.5;r=f'.^2+f.^2;

        % 二维柏林式噪声生成
        alp=abs(ifftn(exp(3i*rand(a))./r.^.8)).*(c*c');
        alp=alp./max(alp,[],'all');

        CMesh=zeros([size(alp),3]);
        CMesh(:,:,1)=colMist(1);
        CMesh(:,:,2)=colMist(2);
        CMesh(:,:,3)=colMist(3);

        % 越向上、雾气越透明
        dy=(500:-1:1)./500.*.8+.2;
        image([0,600],[200,800],CMesh,'AlphaData',alp.*(dy'));
    end
% -------------------------------------------------------------------------
% 星星月亮绘制函数
    function drawMandS()
        % 绘制双层圆形当月亮
        t=0:pi/500:2*pi;
        fill(cos(t).*25+450,sin(t).*25+670,[236,235,253]./255,'EdgeColor','none')
        fill(cos(t).*30+450,sin(t).*30+670,[236,235,253]./255,'EdgeColor','none','FaceAlpha',.3)

        % 绘制散点当星星
        scatter(randi([0,600],[15,1]),randi([200,800],[15,1]),4,'filled',...
                'CData',[1 1 1],'MarkerFaceAlpha',.6);
    end
% -------------------------------------------------------------------------
% 圣诞树绘制函数
    function drawXMasTree()

        % 绘制树干- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
        c=zeros(1,4,3);
        c(1,1:2,1)=163./255;c(1,1:2,2)=165./255;c(1,1:2,3)=183./255;
        c(1,3:4,1)=85./255 ;c(1,3:4,2)=95./255 ;c(1,3:4,3)=130./255;
        patch([283,317,317,283],[100,100,180,180],c,'FaceColor','interp','EdgeColor','none')
        fill([283:317,317,283],[100+rand(1,35).*10,90,90],[207,217,235]./255,'EdgeColor','none')

        % 绘制树干粗糙花纹- - - - - - - - - - - - - - - - - - - - - - - - -
        a=400;b=(.5:a)'/a;
        c=(-cos(b*2*pi)+1).^.2;
        f=b-.5;r=f'.^2+f.^2;

        alp=abs(ifftn(exp(3i*rand(a))./r.^.8)).*(c*c');
        alp=alp./max(alp,[],'all');
        alp=alp(1:100,:);

        colTrunk=[160,162,177]./255;
        CMesh=zeros([size(alp),3]);
        CMesh(:,:,1)=colTrunk(1);
        CMesh(:,:,2)=colTrunk(2);
        CMesh(:,:,3)=colTrunk(3);

        dy=(100:-1:1)./100.*.8+.2;
        image([283,317],[100,180],CMesh,'AlphaData',alp.*(dy'));

        % 绘制树叶- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
        colTree=[64,88,124]./255;
        a=100;b=(.5:a)'/a;
        c=(-cos(b*2*pi)+1).^.2;
        f=b-.5;r=f'.^2+f.^2;

        CMesh=zeros([a,a,3]);
        CMesh(:,:,1)=colTree(1);
        CMesh(:,:,2)=colTree(2);
        CMesh(:,:,3)=colTree(3);

        jList=[1,2,3,5,6,8,10,12,14,16,16,18,18,20,20,24,24,26,26,28,...
               28,30,30,32,32,32,32,34,32,32,30,26,26,20];
        for i=1:34
            % 二维柏林式噪声生成
            alp=abs(ifftn(exp(7i*rand(a))./r.^.9)).*(c*c');
            alp=alp./max(alp,[],'all');
            alp(alp=.5)=.7;
            for j=(1:jList(i))-jList(i)/2
                image([270,330]+j*6+(rand(1)-.5).*6,...
                      [200,260]+400-i*13+(rand(1)-.5).*3,CMesh,'AlphaData',alp);
            end
        end

        % 绘制五角星- - - - - - - - - - - - - - - - - - - - - - - - - - - -
        t=linspace(pi/2,2*pi+pi/2,11);
        l=ones(1,11);l(2:2:11)=.47;
        fill(cos(t).*26.*l+306,sin(t).*26.*l+640,[237,231,183]./255,...
            'EdgeColor','none','FaceAlpha',.9)

        % 绘制其他装饰物- - - - - - - - - - - - - - - - - - - - - - - - - -
        % 绘制彩带
        siny=-abs(sin(linspace(0,2.3*pi,100)))-linspace(0,2,100);
        plot(linspace(200,400,100),siny.*20+300,'Color',[198,137,159]./255,'LineWidth',2)

        siny=-abs(sin([linspace(0,pi,100),linspace(0,pi,40)]))-linspace(0,-5,140);
        plot(linspace(220,380,140),siny.*20+330,'Color',[198,137,159]./255,'LineWidth',2)

        siny=-abs(sin(linspace(0,1.2*pi,100)))-linspace(0,1.6,100);
        plot(linspace(260,350,100),siny.*20+520,'Color',[198,137,159]./255,'LineWidth',2)
        % 绘制装饰圆球
        scatter([-50,20,20,50]+300,[-80,-25,70,-160]+400,50,'filled','CData',[152,173,176]./255);
        scatter([-45,0,20,-60]+300,[110,30,140,-160]+400,50,'filled','CData',[109,133,212]./255);
        scatter([-30,70]+300,[90,-180]+400,50,'filled','CData',[203,202,181]./255);
    end
% -------------------------------------------------------------------------
% 山峰绘制函数
    function drawMountains()
        % 绘制山峰- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
        colFurther=[240 34 75];  % 远山的颜色
        colCloser=[219 43 60];   % 近山的颜色

        a=800;b=(.5:a)'/a;
        c=(-cos(b*2*pi)+1).^.2;
        f=b-.5;r=f'.^2+f.^2;
        % 8层山
        for i=1:8
            % 每次都生成一次二维柏林式噪声，并取其中一行的数据
            h=abs(ifftn(exp(5i*rand(a))./r.^1.05)).*(c*c').*10;
            nh=(8-i)*30+h(400,:)+180;
            hm=ceil(max(nh));
            CMesh=zeros([hm,800,3]);

            % 颜色矩阵构造，
            tcol=colFurther+(colCloser-colFurther)./8.*(i);
            tcol=hsv2rgb(tcol./[360,100,100]);
            CMesh(:,:,1)=tcol(1);
            CMesh(:,:,2)=tcol(2);
            CMesh(:,:,3)=tcol(3);

            % 用nan数值框出山的轮廓
            alp=ones(hm,800);
            alp((1:hm)'>nh)=nan;

            % 绘制山峰
            image([-50,650],[0,hm],CMesh,'AlphaData',alp.*0.98);
        end


        % 画个雪地- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
        nh=h(800,:);
        fill([linspace(0,600,length(nh)),600,0],[nh./1.5+140,0,0],[218,222,234]./255,...
            'EdgeColor','none')

        % 雪地附近雾气- - - - - - - - - - - - - - - - - - - - - - - - - - -
        colMist=[155,172,198]./255.*1.2;
        a=500;b=(.5:a)'/a;
        c=(-cos(b*2*pi)+1).^.2;
        f=b-.5;r=f'.^2+f.^2;

        % 二维柏林式噪声生成
        alp=abs(ifftn(exp(3i*rand(a))./r.^.8)).*(c*c');
        alp=alp./max(alp,[],'all');

        CMesh=zeros([size(alp),3]);
        CMesh(:,:,1)=colMist(1);
        CMesh(:,:,2)=colMist(2);
        CMesh(:,:,3)=colMist(3);

        % 越向上、雾气越透明
        dy=(500:-1:1)./500.*.6+.2;
        image([0,600],[0,300],CMesh,'AlphaData',alp.*(dy'));
    end
end
