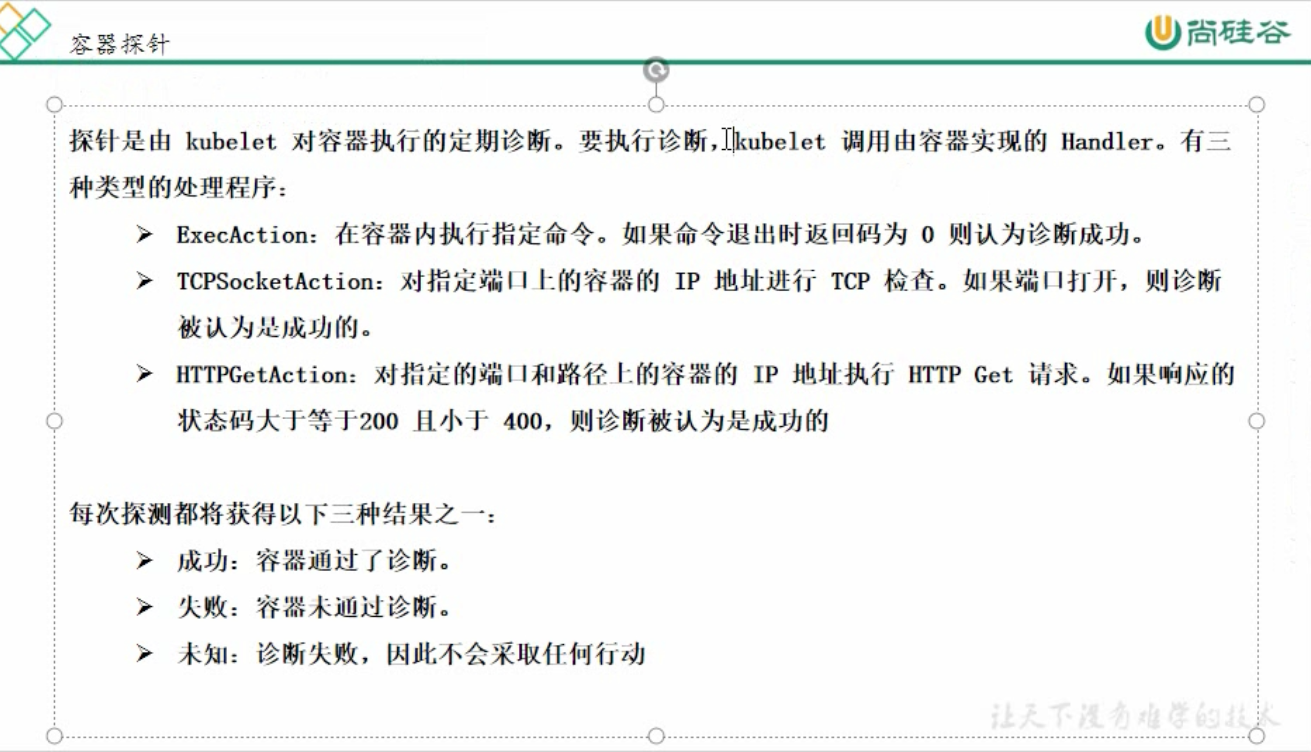

kubernetes视频教程笔记 （12）-容器探针

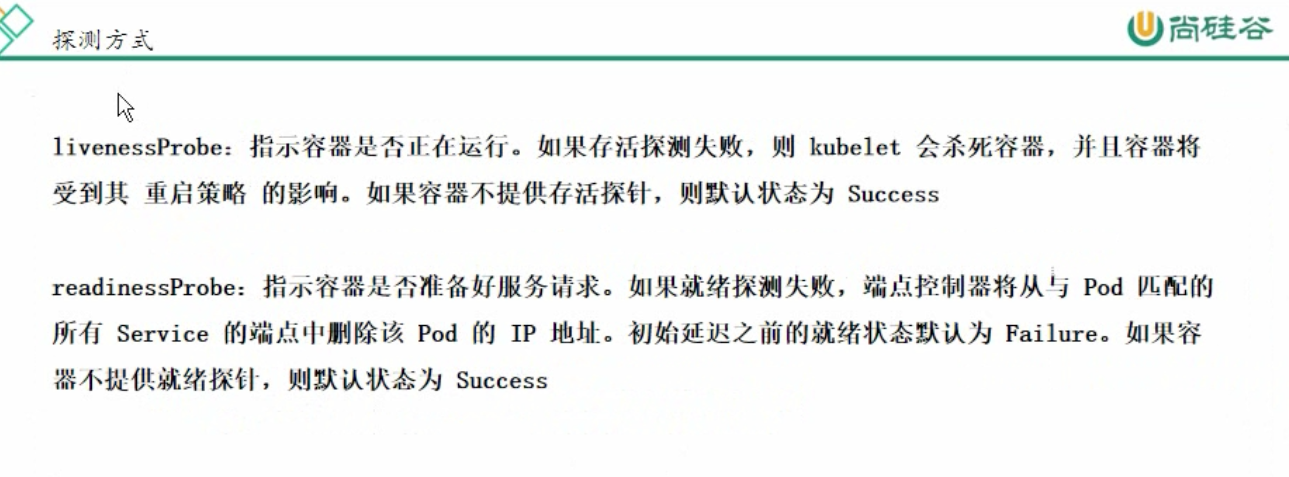

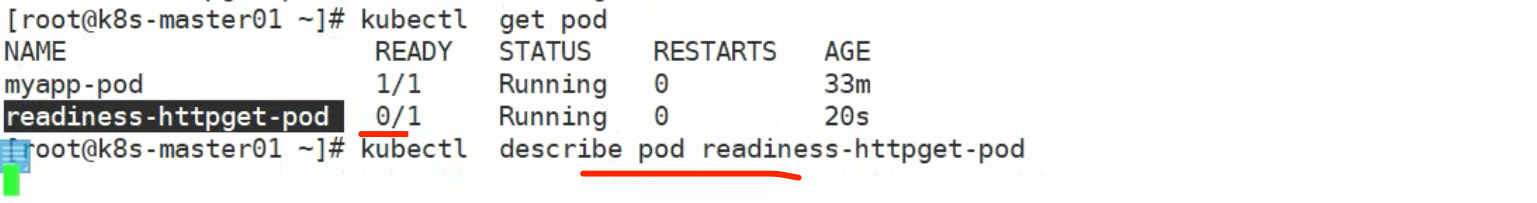

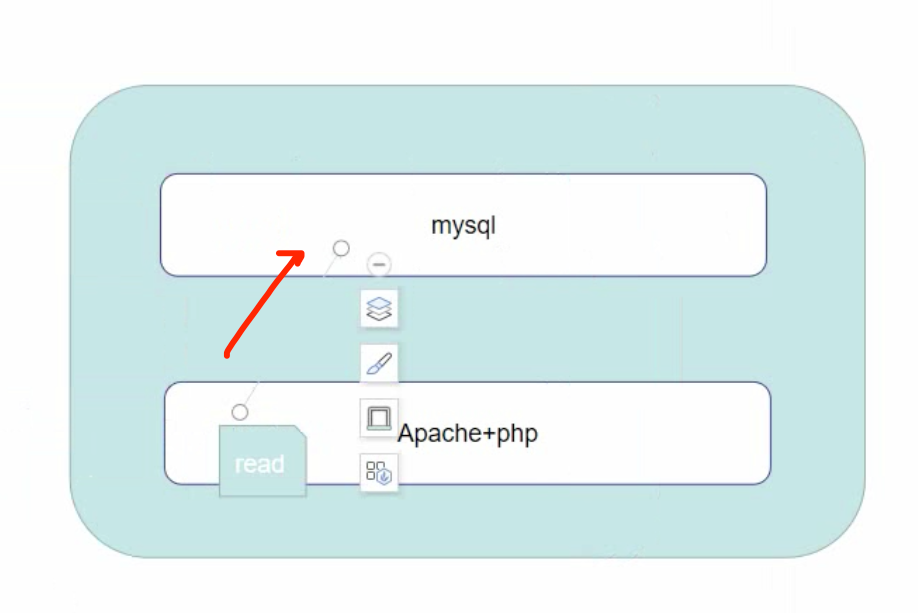

检测探针 - 就绪检测

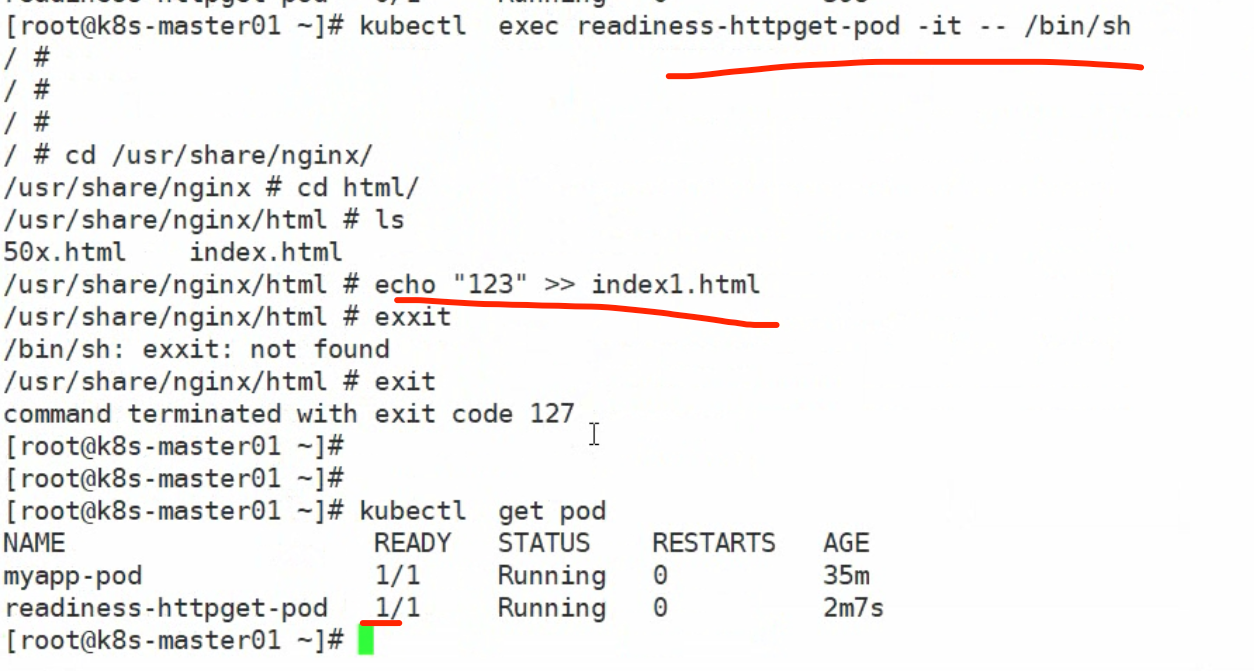

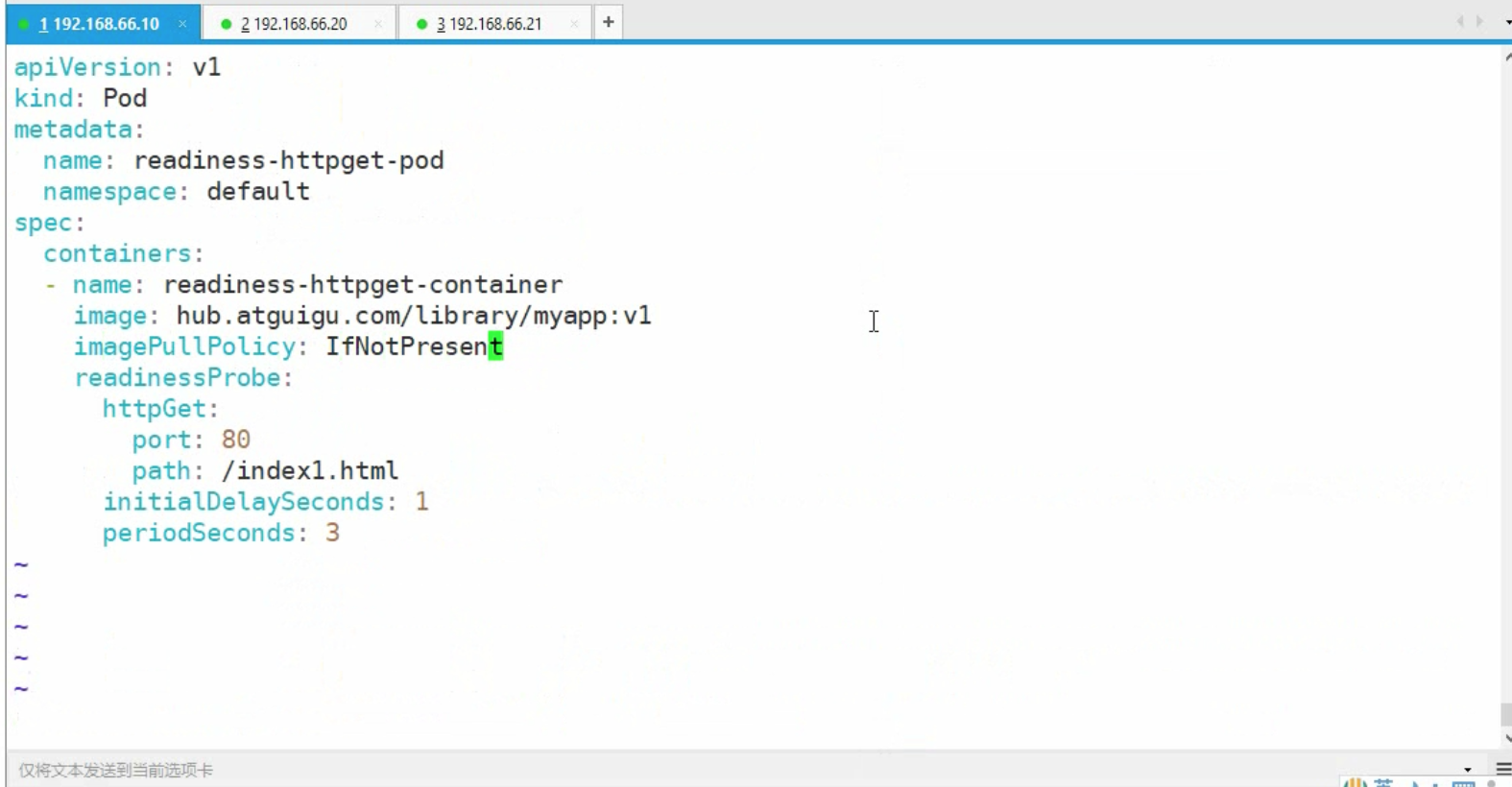

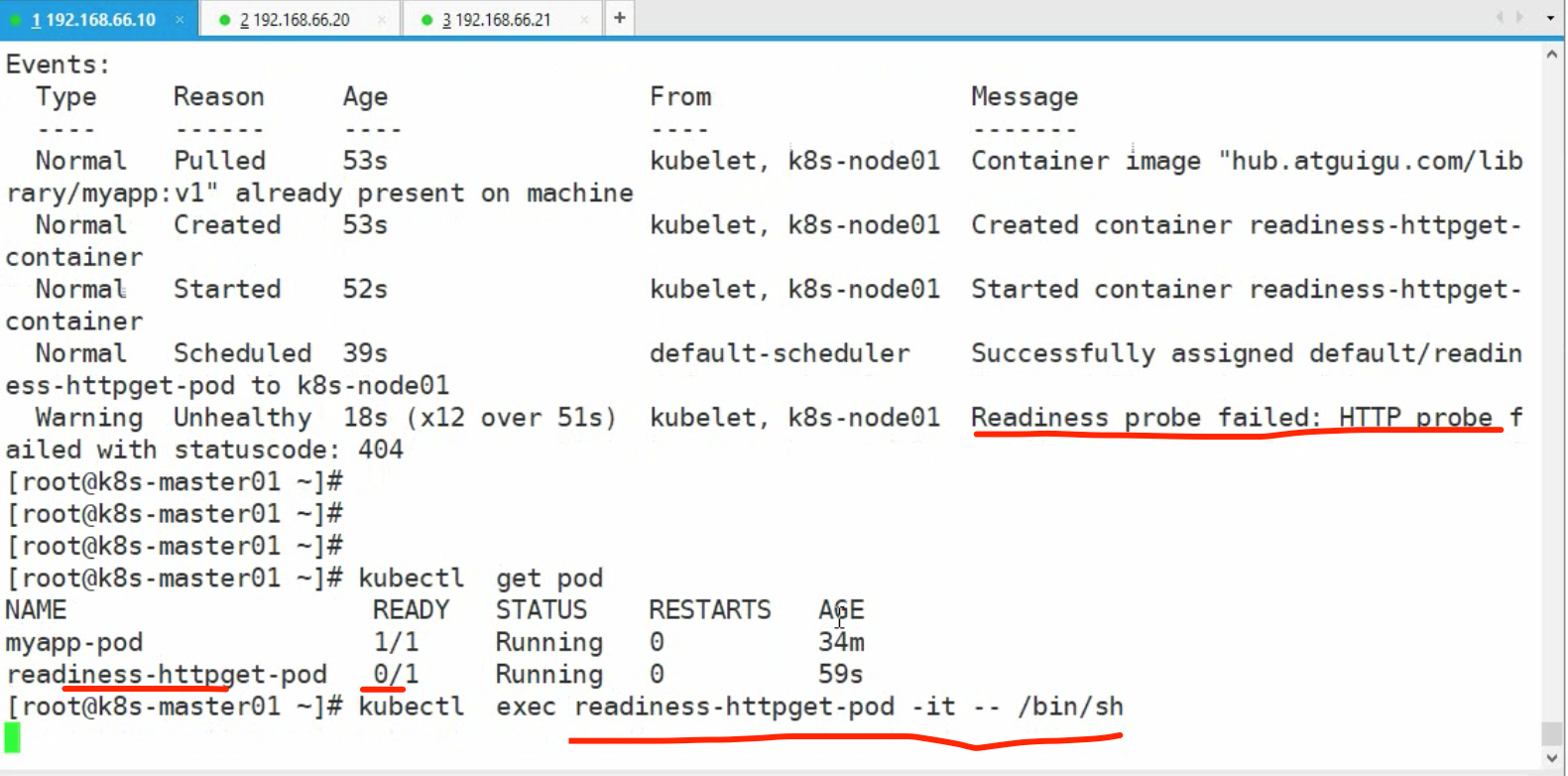

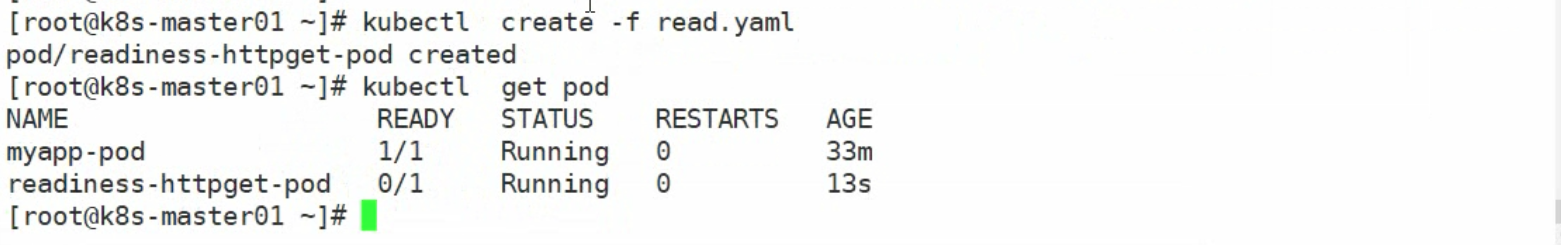

readinessProbe-httpget

apiVersion: v1
kind: Pod
metadata:
 name: readiness-httpget-pod
 namespace: default
spec:
 containers:
 - name: readiness-httpget-container
   image: wangyanglinux/myapp:v1
   imagePullPolicy: IfNotPresent
   readinessProbe:
    httpGet:
     port: 80
     path: /index1.html
    initialDelaySeconds: 1
    periodSeconds: 3









检测探针 - 存活检测

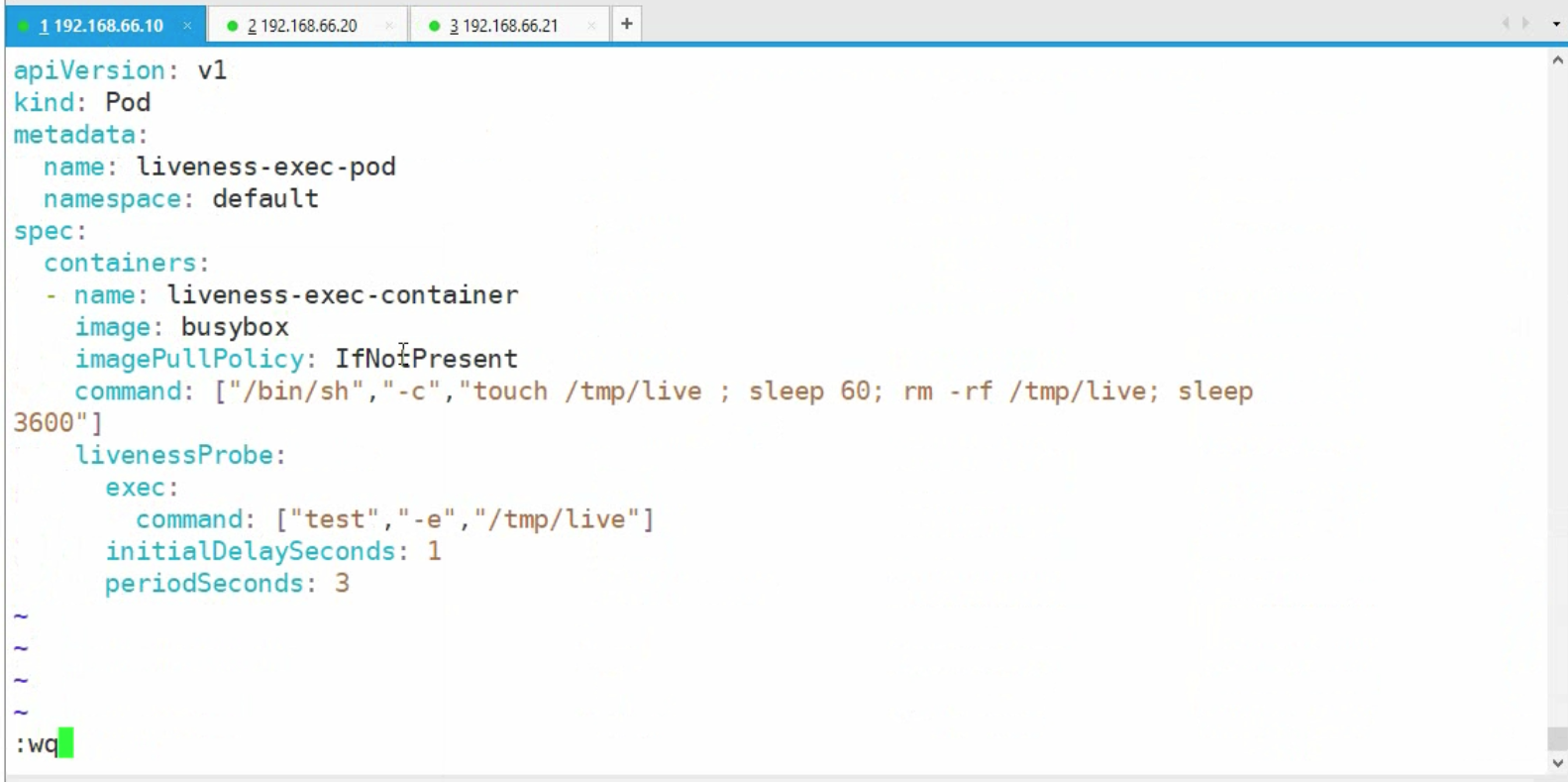

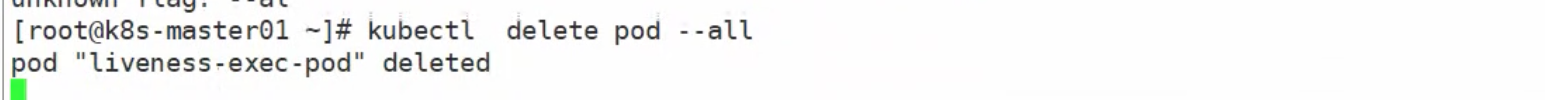

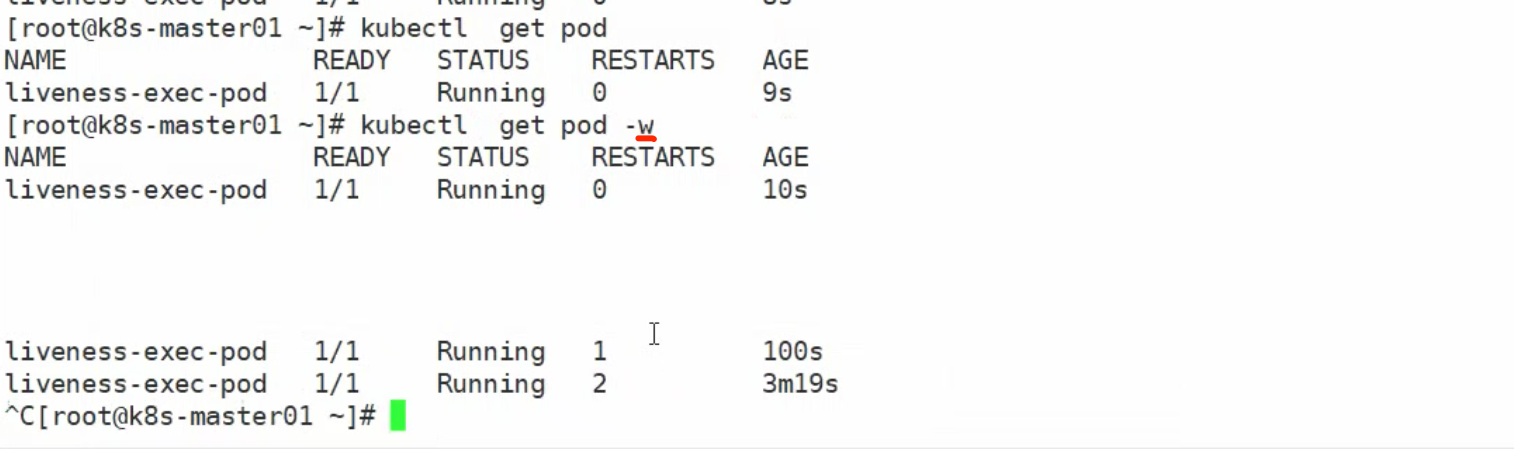

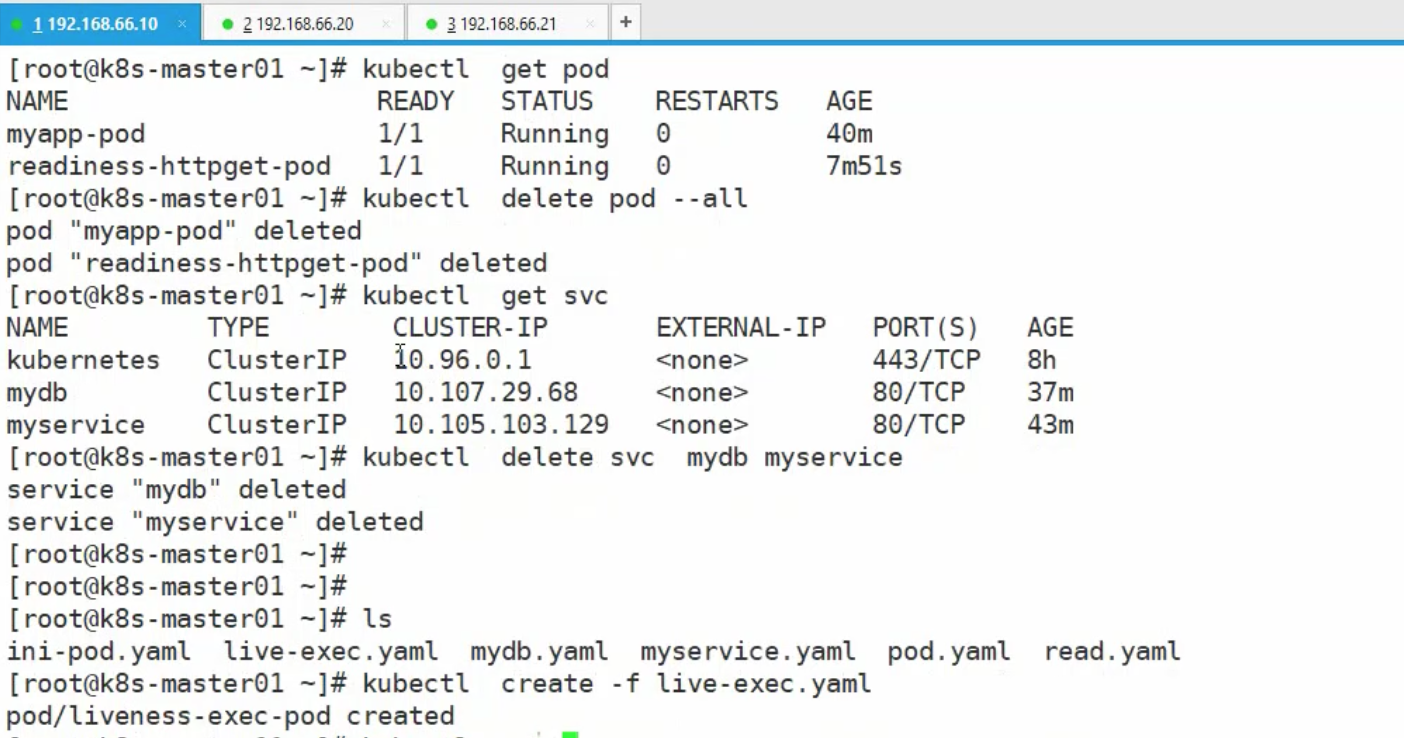

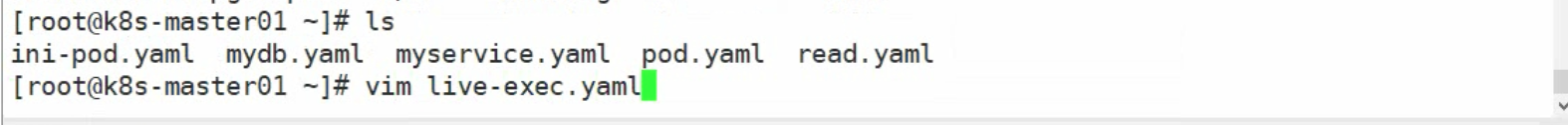

livenessProbe-exec

apiVersion: v1
kind: Pod
metadata:
 name: liveness-exec-pod
 namespace: default
spec:
 containers:
 - name: liveness-exec-container
   image: hub.atguigu.com/library/busybox
   imagePullPolicy: IfNotPresent
   command: ["/bin/sh","-c","touch /tmp/live ; sleep 60; rm -rf /tmp/live; sleep
3600"]
   livenessProbe:
    exec:
     command: ["test","-e","/tmp/live"]
    initialDelaySeconds: 1
    periodSeconds: 3

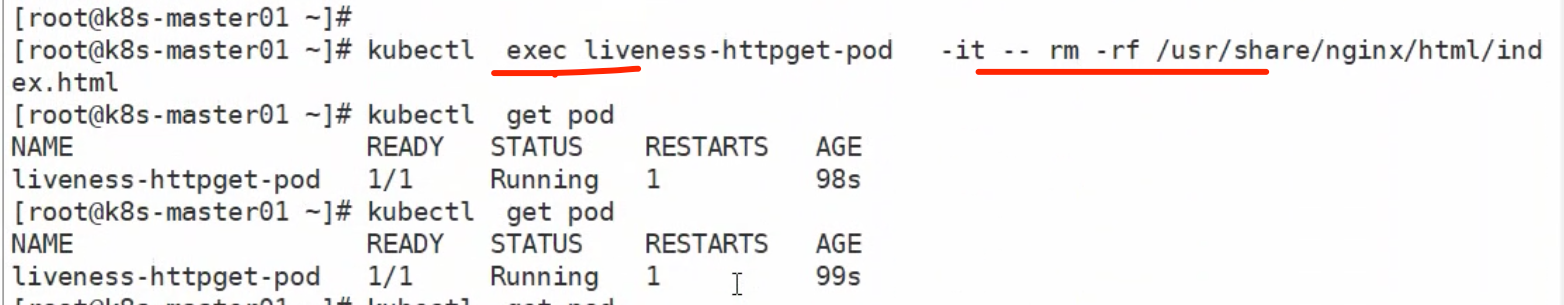

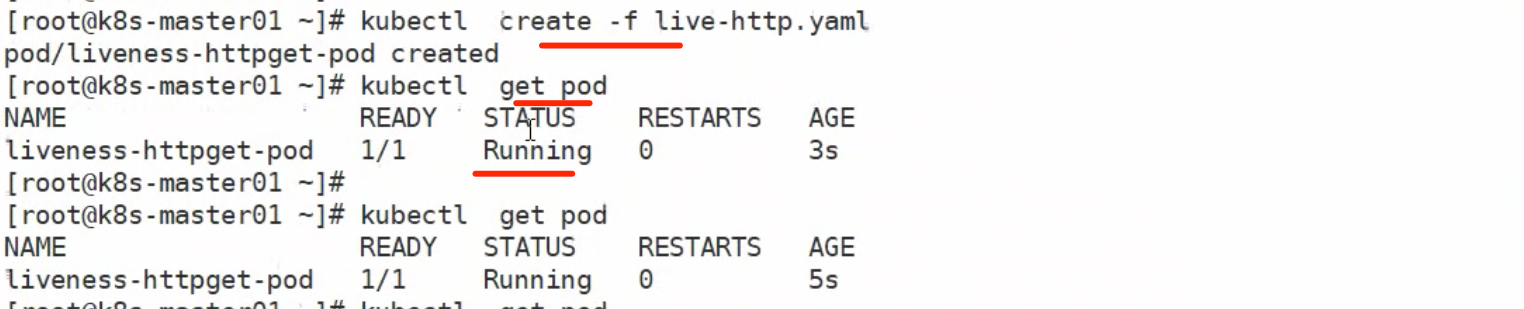

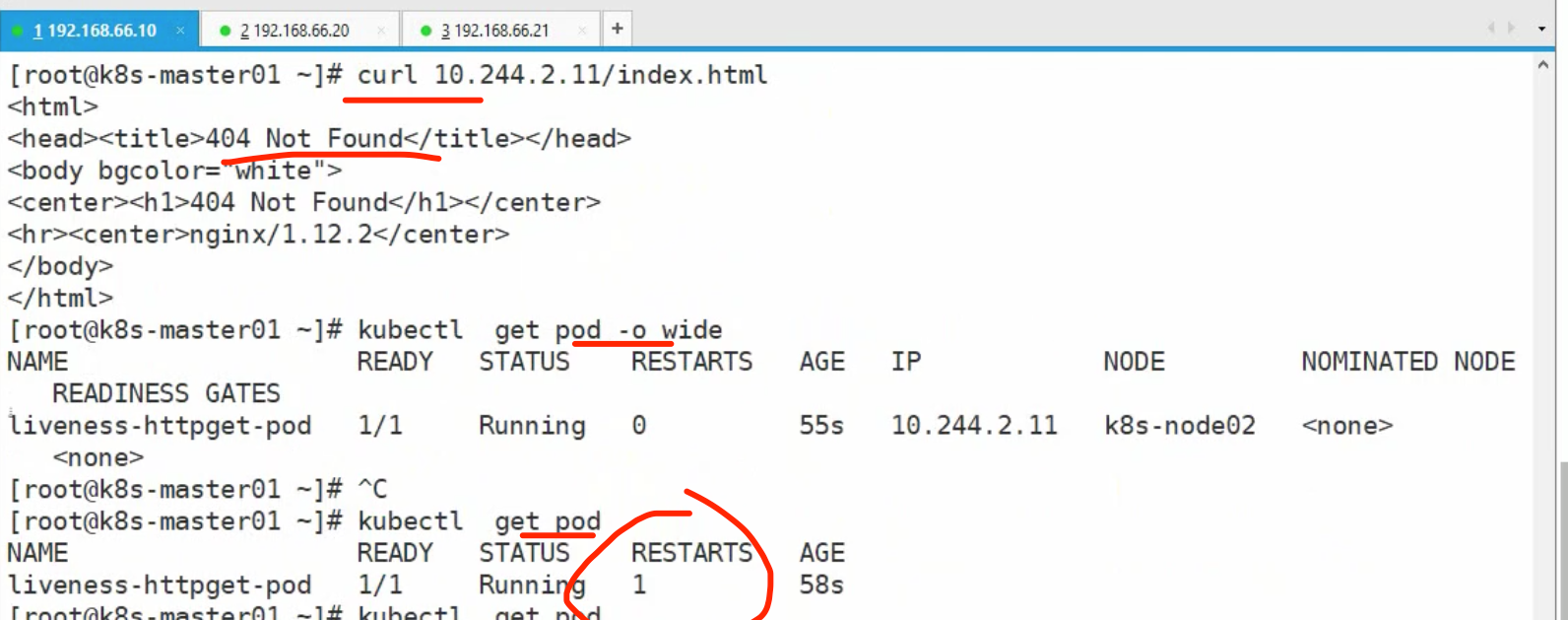

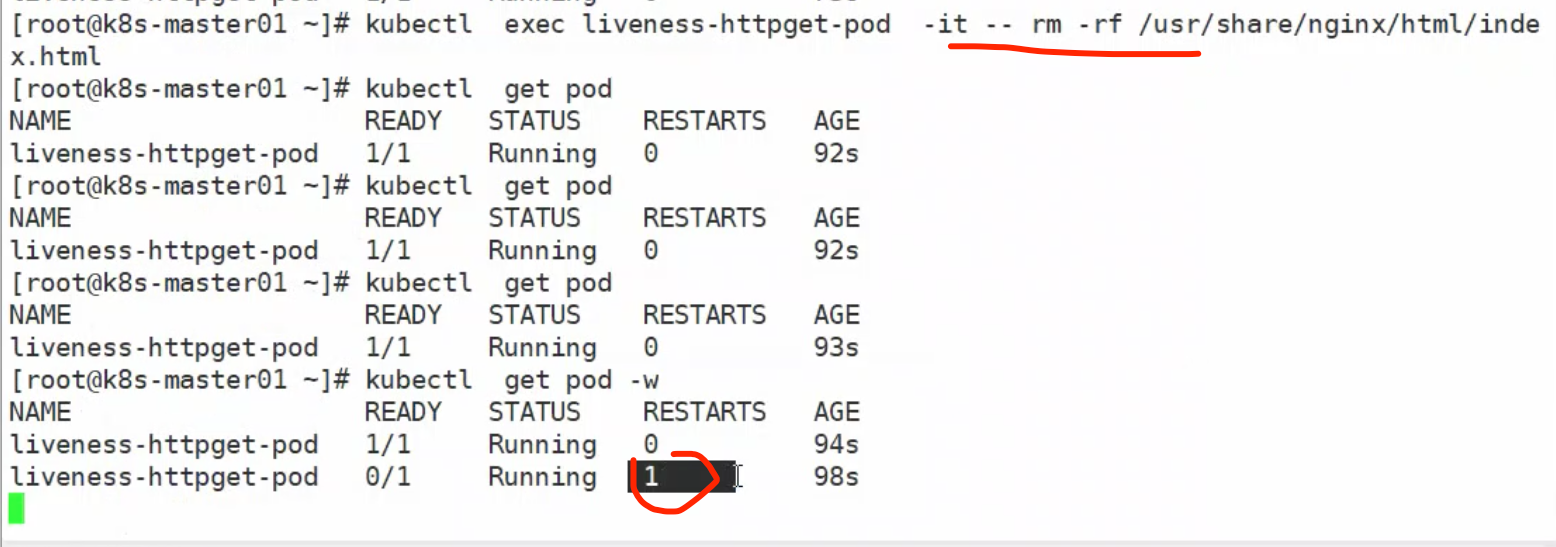

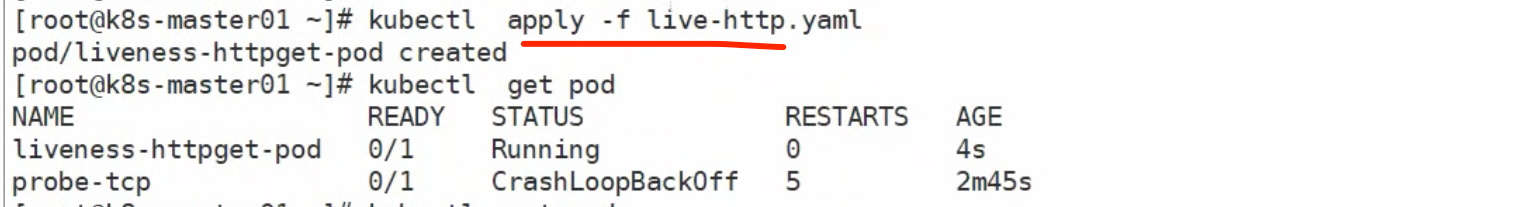

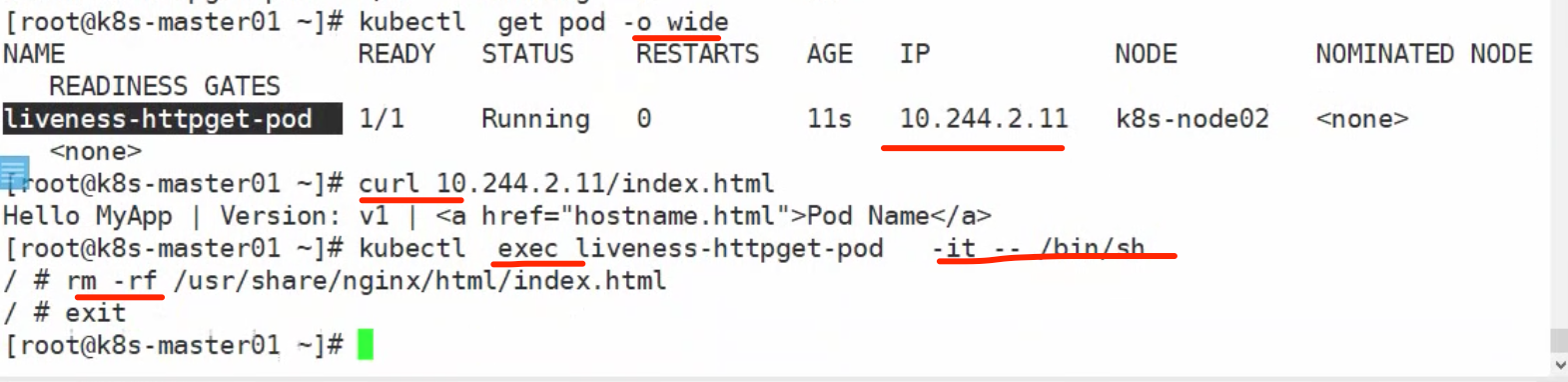

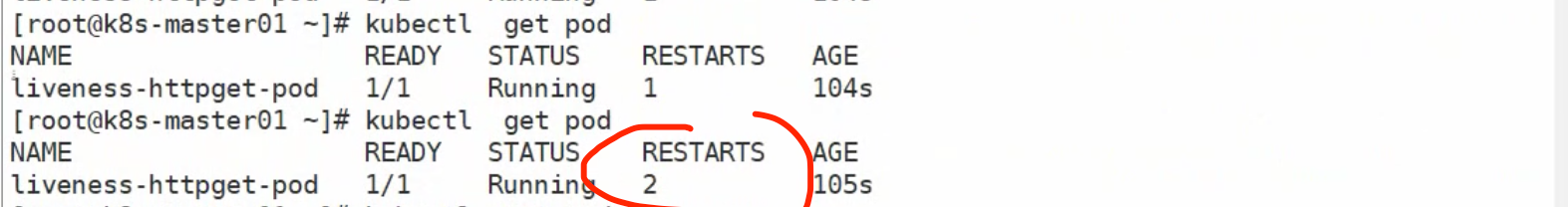

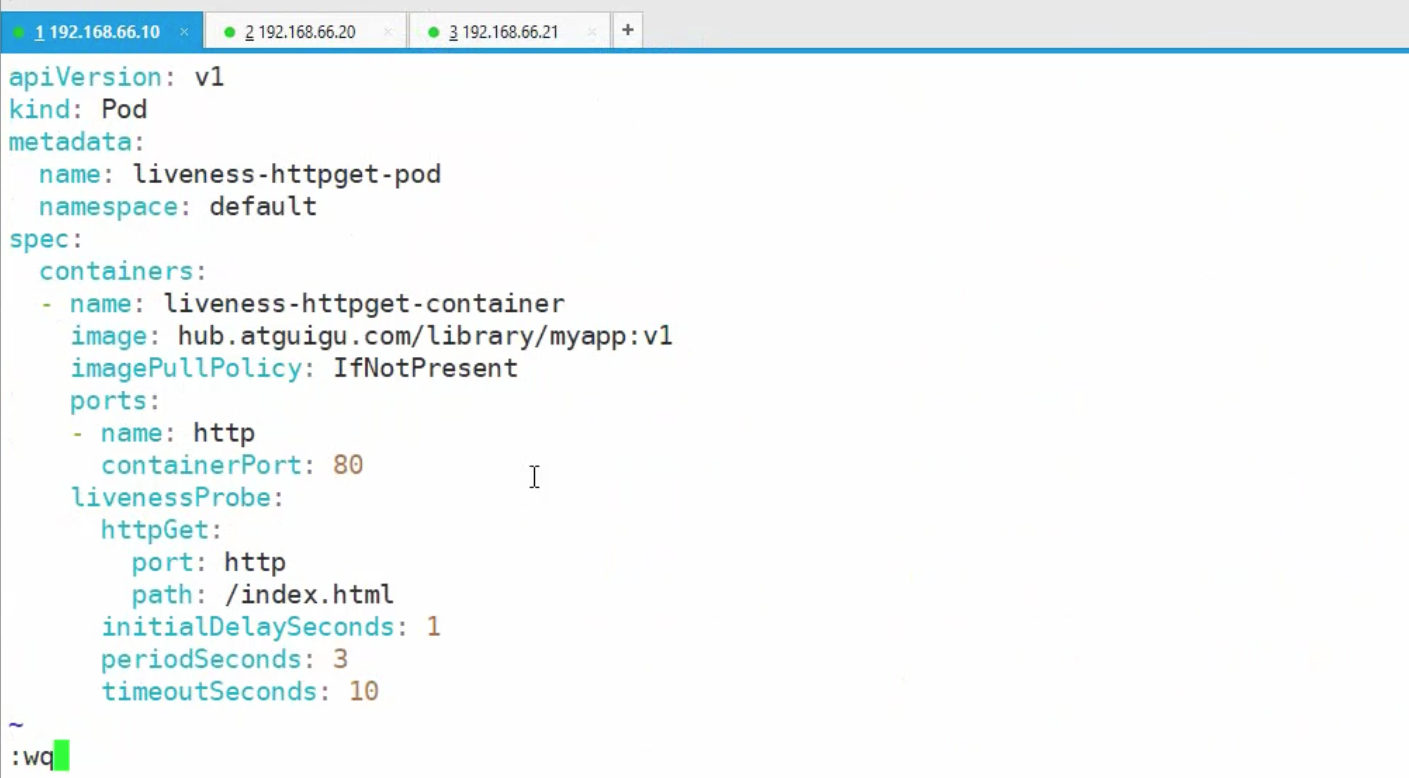

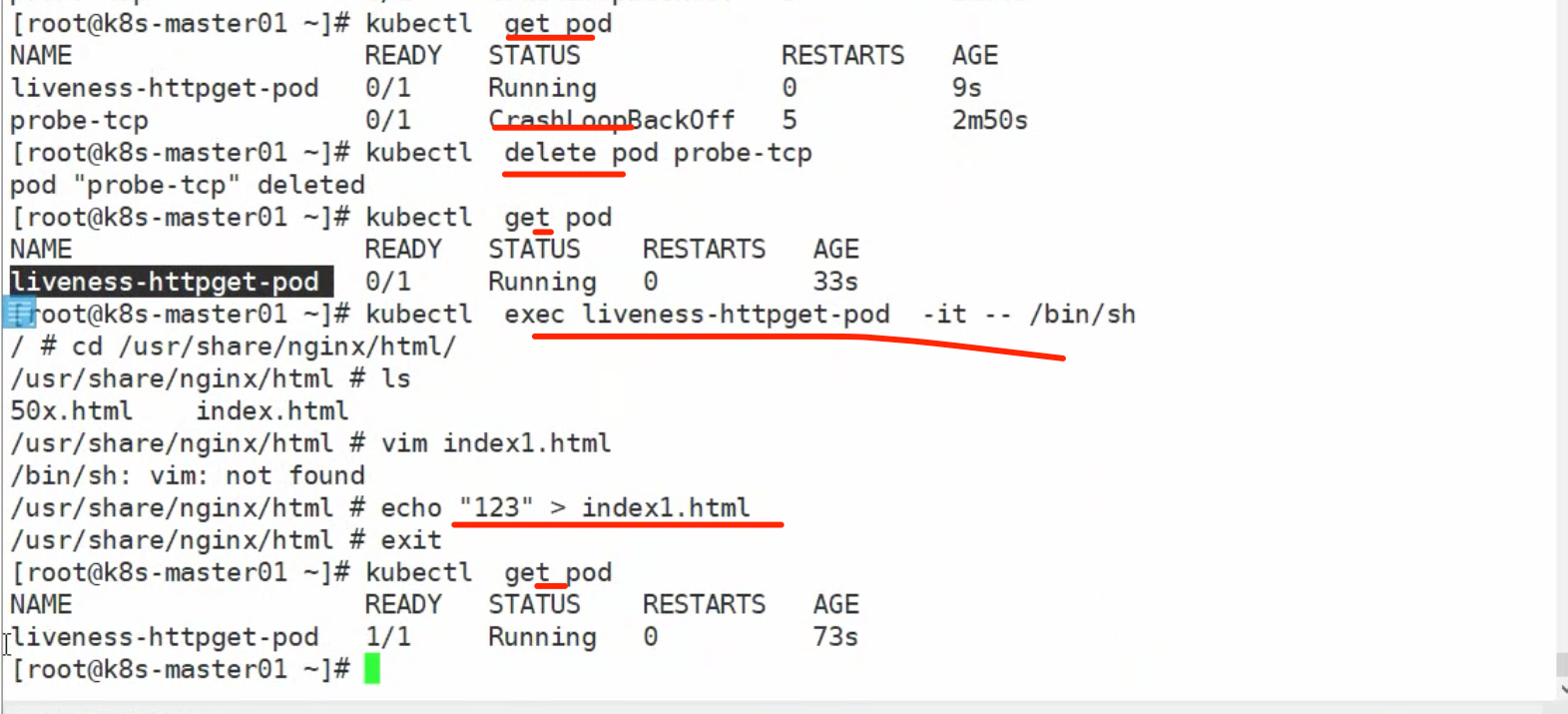

livenessProbe-httpget

apiVersion: v1
kind: Pod
metadata:
 name: liveness-httpget-pod
 namespace: default
spec:
 containers:
 - name: liveness-httpget-container
   image: hub.atguigu.com/library/myapp:v1
   imagePullPolicy: IfNotPresent
   ports:
 - name: http
   containerPort: 80
 livenessProbe:
  httpGet:
   port: http
   path: /index.html
  initialDelaySeconds: 1
  periodSeconds: 3
  timeoutSeconds: 10

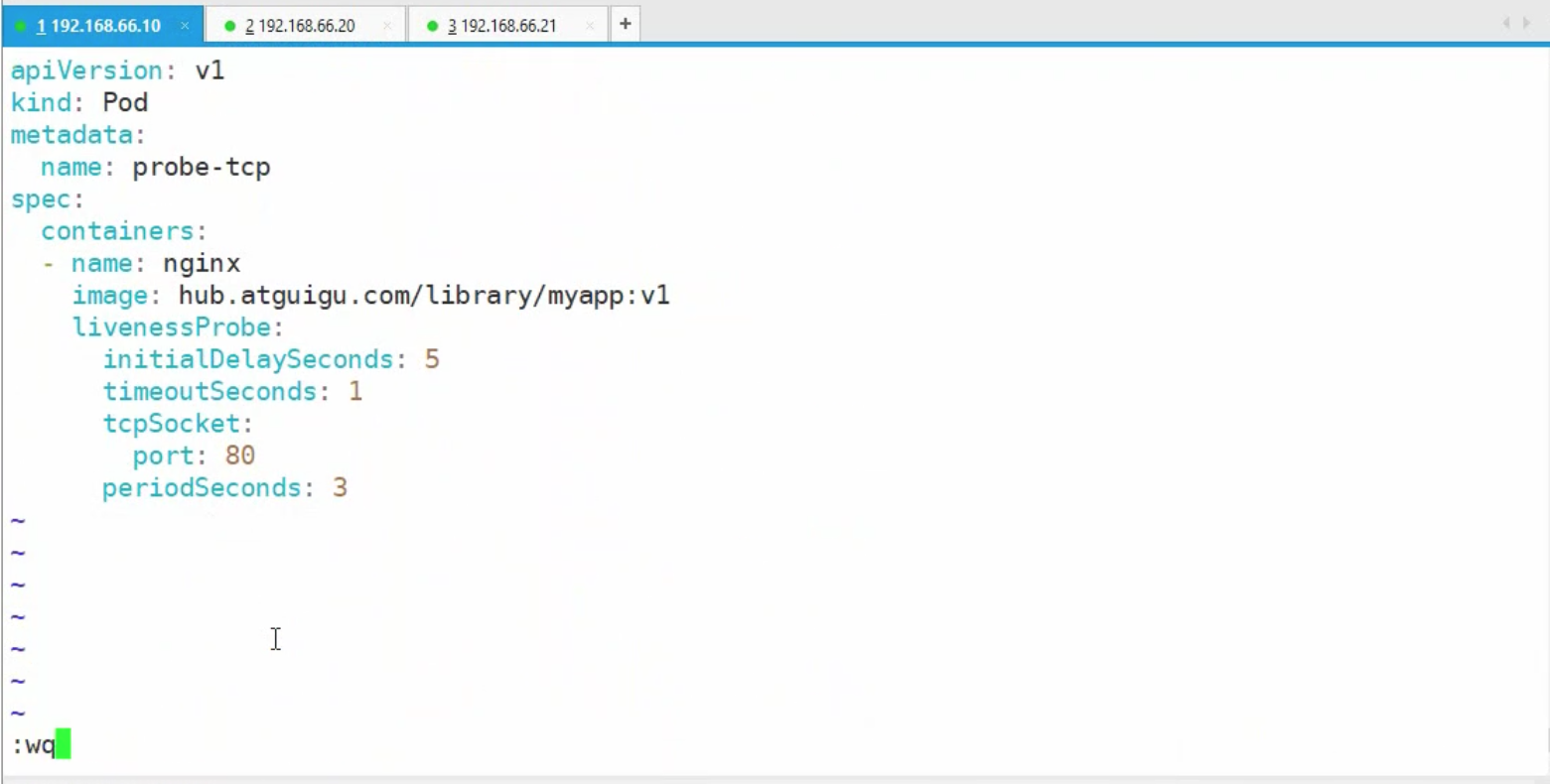

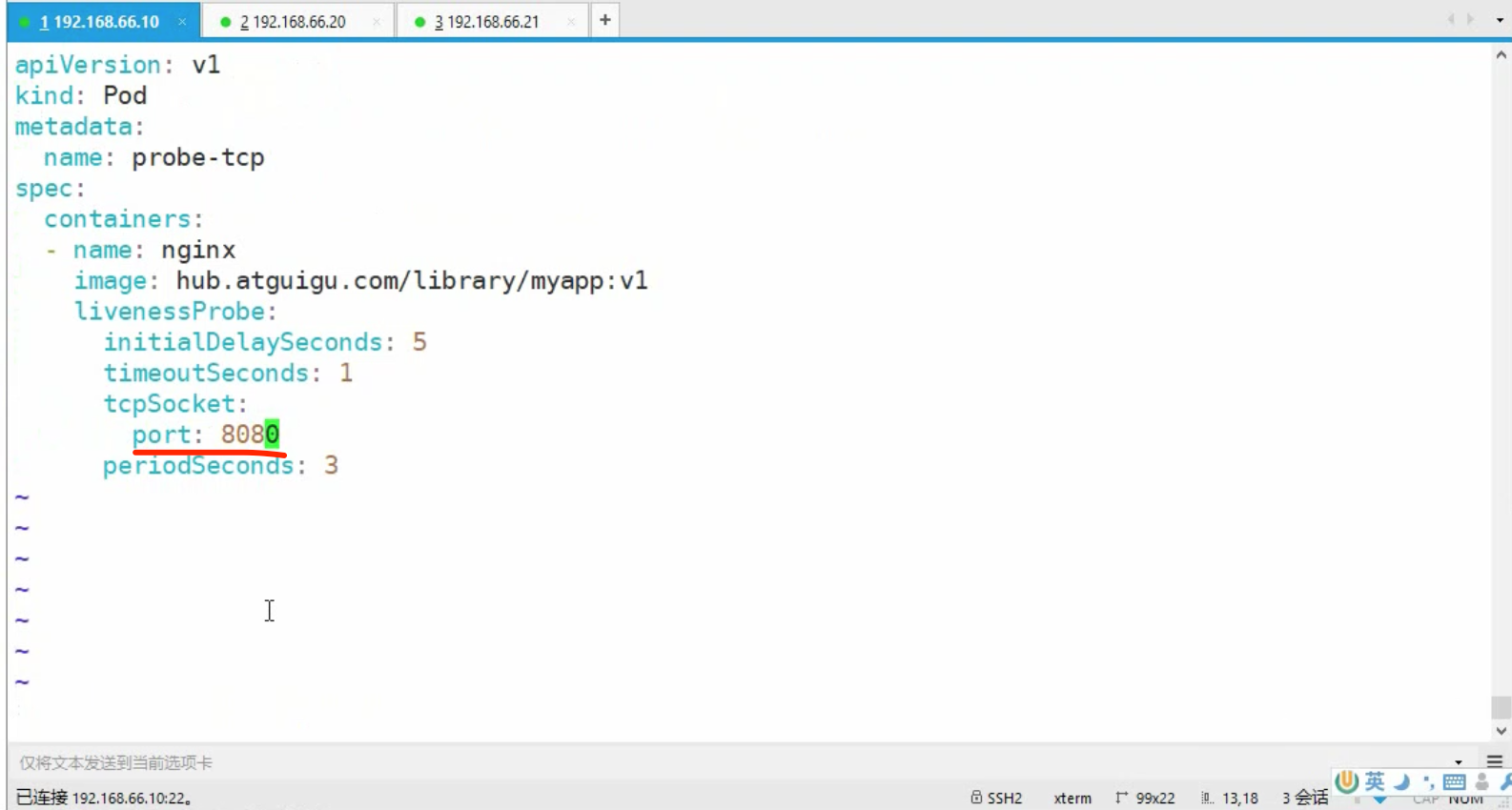

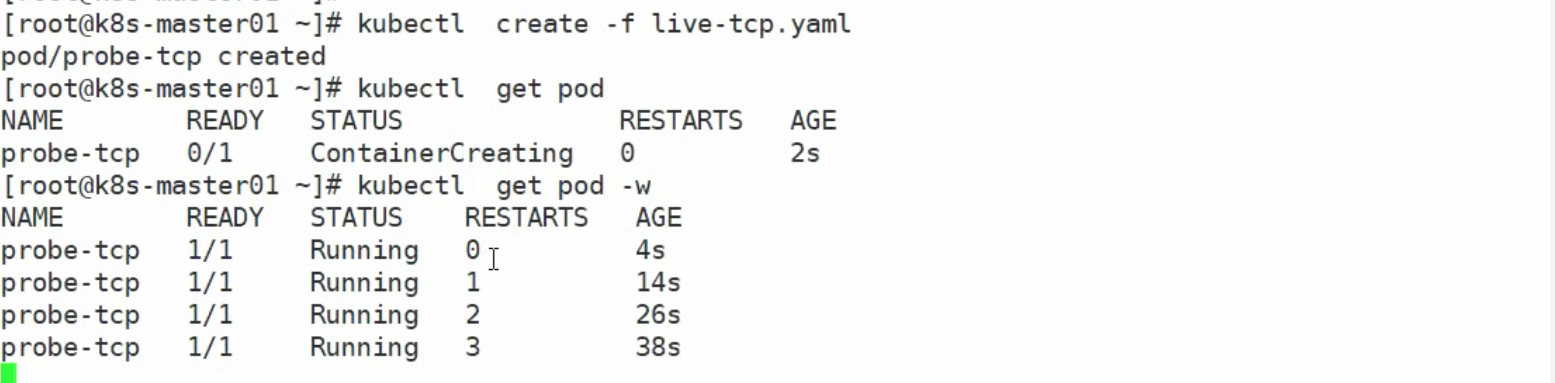

livenessProbe-tcp

apiVersion: v1
kind: Pod
metadata:
 name: probe-tcp
spec:
 containers:
 - name: nginx
   image: hub.atguigu.com/library/myapp:v1
   livenessProbe:
    initialDelaySeconds: 5
    timeoutSeconds: 1
    tcpSocket:
     port: 80
    periodSeconds: 3

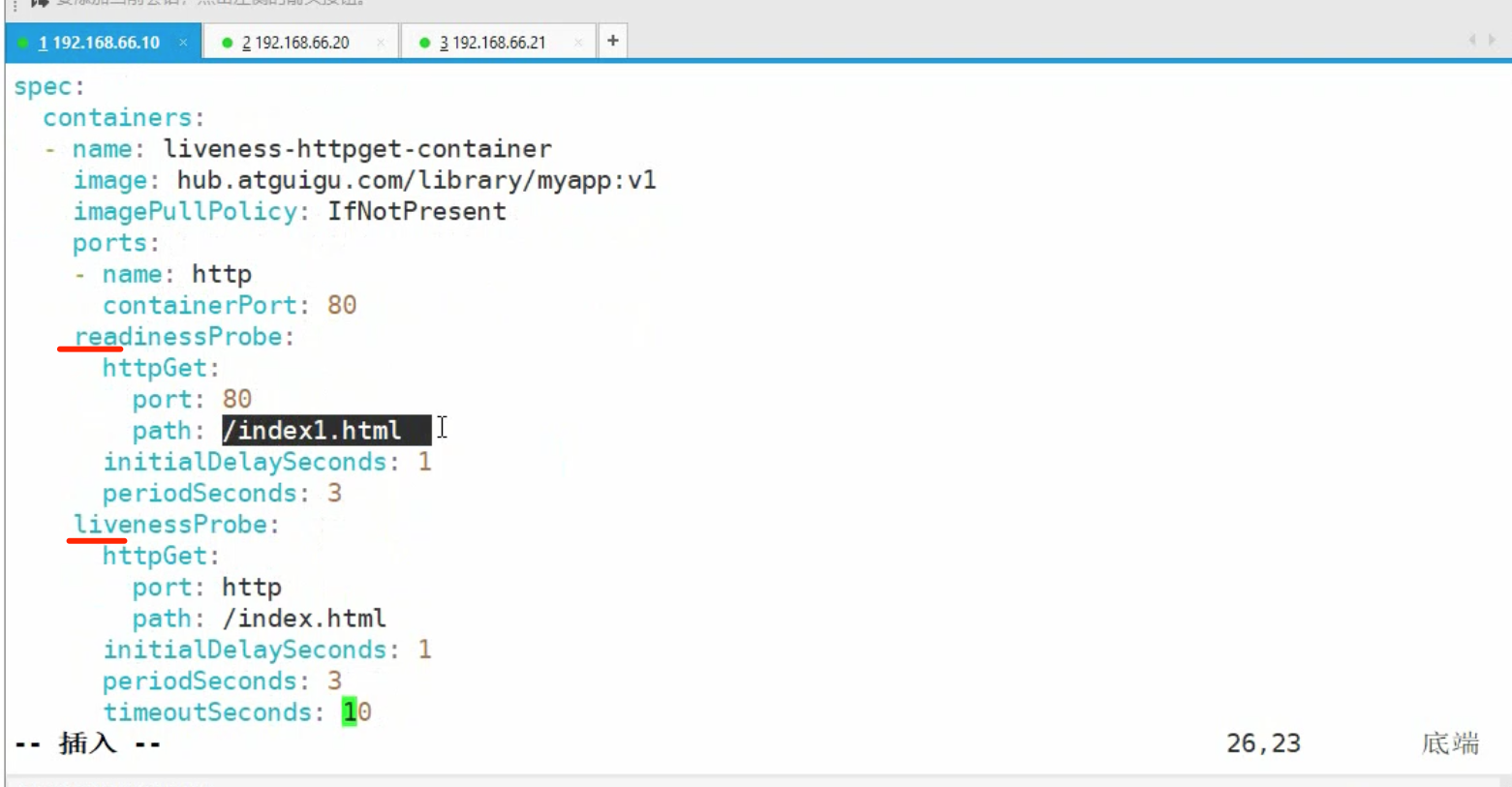

可以合并检测
