前言

前面我们简单了解了一下SpringCloud Eureka的核心API,这一章我们跟踪一下Eureka的启动过程

1.EurekaClientAutoConfiguration:Eureka自动配置

有了解过SpringBoot自动配置的同学应该知道，在主程序启动类上我们会贴一个@SpringBootApplication注解，该注解里面包含了一个@EnableAutoConfiguration注解，该注解的作用是开启SpringBoot的自动配置，即：在@EnableAutoConfiguration标签中使用了一个AutoConfigurationImportSelector选择器，该选择器会去扫描当前classpath环境中的 META-INF/spring.factories 文件中的自动配置类，然后完成相关的自动配置。如下：

  • @SpringBootApplication标签源码
@Target(ElementType.TYPE) @Retention(RetentionPolicy.RUNTIME) @Documented @Inherited @SpringBootConfiguration @EnableAutoConfiguration @ComponentScan(excludeFilters = { @Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class), @Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) }) public @interface SpringBootApplication {
  • @EnableAutoConfiguration 标签源码
@Target(ElementType.TYPE) @Retention(RetentionPolicy.RUNTIME) @Documented @Inherited @AutoConfigurationPackage @Import(AutoConfigurationImportSelector.class) public @interface EnableAutoConfiguration {...}
  • AutoConfigurationImportSelector选择器源码
public class AutoConfigurationImportSelector implements DeferredImportSelector, BeanClassLoaderAware, ResourceLoaderAware, BeanFactoryAware, EnvironmentAware, Ordered { //省略部分代码...... //扫描classpath下的spring.factories自动配置 @Override public String[] selectImports(AnnotationMetadata annotationMetadata) { if (!isEnabled(annotationMetadata)) { return NO_IMPORTS; } AutoConfigurationMetadata autoConfigurationMetadata = AutoConfigurationMetadataLoader .loadMetadata(this.beanClassLoader); AnnotationAttributes attributes = getAttributes(annotationMetadata); List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes); configurations = removeDuplicates(configurations); Set<String> exclusions = getExclusions(annotationMetadata, attributes); checkExcludedClasses(configurations, exclusions); configurations.removeAll(exclusions); configurations = filter(configurations, autoConfigurationMetadata); fireAutoConfigurationImportEvents(configurations, exclusions); return StringUtils.toStringArray(configurations); }

在selectImports方法中会将扫描到的META-INF/spring.factories文件中的自动配置的一些类加载进来，然后注册到Spring容器中

其中在spring-cloud-netflix-eureka-client-2.0.1.RELEASE.jar这个jar包里面就有一个META-INF/spring.factories文件，内容如下：

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.cloud.netflix.eureka.config.EurekaClientConfigServerAutoConfiguration,\
org.springframework.cloud.netflix.eureka.config.EurekaDiscoveryClientConfigServiceAutoConfiguration,\
org.springframework.cloud.netflix.eureka.EurekaClientAutoConfiguration,\
org.springframework.cloud.netflix.ribbon.eureka.RibbonEurekaAutoConfiguration,\
org.springframework.cloud.netflix.eureka.EurekaDiscoveryClientConfiguration

我们这里需要重点关注是EurekaClientAutoConfiguration这个类，从名字就能看出它是对EureakClient的自动配置，来详细看一下它的源码

//EurekaClient自动配置 @Configuration @EnableConfigurationProperties @ConditionalOnClass(EurekaClientConfig.class) @Import(DiscoveryClientOptionalArgsConfiguration.class) @ConditionalOnBean(EurekaDiscoveryClientConfiguration.Marker.class) @ConditionalOnProperty(value = "eureka.client.enabled", matchIfMissing = true) @AutoConfigureBefore({ NoopDiscoveryClientAutoConfiguration.class, CommonsClientAutoConfiguration.class, ServiceRegistryAutoConfiguration.class }) @AutoConfigureAfter(name = {"org.springframework.cloud.autoconfigure.RefreshAutoConfiguration", "org.springframework.cloud.netflix.eureka.EurekaDiscoveryClientConfiguration", "org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration"}) public class EurekaClientAutoConfiguration { ...省略... //注册EurekaClientConfigBean，该类实现了EurekaClientConfig客户端配置接口，EurekaClientConfigBean封装了客户端实例Eureaka Client注册到Eureak Server 服务端所需要的注册信息，比如：服务注册地址，拉取服务注册表的时间间隔, 注册信息复制到EurekaServer的时间等等 @Bean @ConditionalOnMissingBean(value = EurekaClientConfig.class, search = SearchStrategy.CURRENT) public EurekaClientConfigBean eurekaClientConfigBean(ConfigurableEnvironment env) { EurekaClientConfigBean client = new EurekaClientConfigBean(); if ("bootstrap".equals(this.env.getProperty("spring.config.name"))) { // We don't register during bootstrap by default, but there will be another // chance later. client.setRegisterWithEureka(false); } return client; } //注册EurekaInstanceConfigBean ， eureka实例配置，实现了EurekaInstanceConfig配置接口，其中包括了：获取实例ID， //获取https协议端口，获取应用名，获取应用组名，获取租约心跳间隔时间，租约到期时间，获取ip,获取主机名等等方法。 @Bean @ConditionalOnMissingBean(value = EurekaInstanceConfig.class, search = SearchStrategy.CURRENT) public EurekaInstanceConfigBean eurekaInstanceConfigBean(InetUtils inetUtils, ManagementMetadataProvider managementMetadataProvider) { String hostname = getProperty("eureka.instance.hostname"); boolean preferIpAddress = Boolean.parseBoolean(getProperty("eureka.instance.prefer-ip-address")); String ipAddress = getProperty("eureka.instance.ip-address"); boolean isSecurePortEnabled = Boolean.parseBoolean(getProperty("eureka.instance.secure-port-enabled")); String serverContextPath = env.getProperty("server.context-path", "/"); int serverPort = Integer.valueOf(env.getProperty("server.port", env.getProperty("port", "8080"))); Integer managementPort = env.getProperty("management.server.port", Integer.class);// nullable. should be wrapped into optional String managementContextPath = env.getProperty("management.server.servlet.context-path");// nullable. should be wrapped into optional Integer jmxPort = env.getProperty("com.sun.management.jmxremote.port", Integer.class);//nullable EurekaInstanceConfigBean instance = new EurekaInstanceConfigBean(inetUtils); instance.setNonSecurePort(serverPort); instance.setInstanceId(getDefaultInstanceId(env)); instance.setPreferIpAddress(preferIpAddress); instance.setSecurePortEnabled(isSecurePortEnabled); if (StringUtils.hasText(ipAddress)) { instance.setIpAddress(ipAddress); } if(isSecurePortEnabled) { instance.setSecurePort(serverPort); } if (StringUtils.hasText(hostname)) { instance.setHostname(hostname); } String statusPageUrlPath = getProperty("eureka.instance.status-page-url-path"); String healthCheckUrlPath = getProperty("eureka.instance.health-check-url-path"); if (StringUtils.hasText(statusPageUrlPath)) { instance.setStatusPageUrlPath(statusPageUrlPath); } if (StringUtils.hasText(healthCheckUrlPath)) { instance.setHealthCheckUrlPath(healthCheckUrlPath); } ManagementMetadata metadata = managementMetadataProvider.get(instance, serverPort, serverContextPath, managementContextPath, managementPort); if(metadata != null) { instance.setStatusPageUrl(metadata.getStatusPageUrl()); instance.setHealthCheckUrl(metadata.getHealthCheckUrl()); if(instance.isSecurePortEnabled()) { instance.setSecureHealthCheckUrl(metadata.getSecureHealthCheckUrl()); } Map<String, String> metadataMap = instance.getMetadataMap(); if (metadataMap.get("management.port") == null) { metadataMap.put("management.port", String.valueOf(metadata.getManagementPort())); } } else { //without the metadata the status and health check URLs will not be set //and the status page and health check url paths will not include the //context path so set them here if(StringUtils.hasText(managementContextPath)) { instance.setHealthCheckUrlPath(managementContextPath + instance.getHealthCheckUrlPath()); instance.setStatusPageUrlPath(managementContextPath + instance.getStatusPageUrlPath()); } } setupJmxPort(instance, jmxPort); return instance; } //注册DiscoveryClient服务发现客户端，它是spring-cloud-commons:2.0.1.RELEASE SpringCloud公共抽象包中的（org.springframework.cloud.netflix.eureka.EurekaDiscoveryClient）， //是Spring Cloudd的服务发现抽象接口 EurekaDiscoveryClient是它的实现 @Bean public DiscoveryClient discoveryClient(EurekaInstanceConfig config, EurekaClient client) { return new EurekaDiscoveryClient(config, client); } //Eureak服务注册器，他是SpringCloud 在Netflix标准上拓展出来的，提供了服务注册，取消注册，设置服务状态，获取服务状态方法,ServiceRegistry负责服务注册，DiscoveryClient负责服务发现 @Bean public EurekaServiceRegistry eurekaServiceRegistry() { return new EurekaServiceRegistry(); } //EurekaAutoServiceRegistration ：eureka服务自动注册器 @Bean @ConditionalOnBean(AutoServiceRegistrationProperties.class) @ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true) public EurekaAutoServiceRegistration eurekaAutoServiceRegistration(ApplicationContext context, EurekaServiceRegistry registry, EurekaRegistration registration) { return new EurekaAutoServiceRegistration(context, registry, registration); } //取消注册 @Override public void stop() { this.serviceRegistry.deregister(this.registration); this.running.set(false); } //EureakClient配置，该配置没有刷新功能 @Configuration @ConditionalOnMissingRefreshScope //不可刷新 protected static class EurekaClientConfiguration { @Autowired private ApplicationContext context; @Autowired private AbstractDiscoveryClientOptionalArgs<?> optionalArgs; //注册EurekaClient  客户端对象 ， 它有一个实现 DiscoveryClient ， //这个实现 DiscoveryClient  是eureka-client:1.9.3包里面的，是Euraek的服务发现的核心实现 @Bean(destroyMethod = "shutdown") @ConditionalOnMissingBean(value = EurekaClient.class, search = SearchStrategy.CURRENT) public EurekaClient eurekaClient(ApplicationInfoManager manager, EurekaClientConfig config) { return new CloudEurekaClient(manager, config, this.optionalArgs, this.context); } //注册ApplicationInfoManager  ，该对象用来管理 InstanceInfo @Bean @ConditionalOnMissingBean(value = ApplicationInfoManager.class, search = SearchStrategy.CURRENT) public ApplicationInfoManager eurekaApplicationInfoManager( EurekaInstanceConfig config) { InstanceInfo instanceInfo = new InstanceInfoFactory().create(config); return new ApplicationInfoManager(config, instanceInfo); } //注册EurekaRegistration，它是Eureka实例的服务注册信息,开启自动注册时，该对象才会被注册 @Bean @ConditionalOnBean(AutoServiceRegistrationProperties.class) @ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true) public EurekaRegistration eurekaRegistration(EurekaClient eurekaClient, CloudEurekaInstanceConfig instanceConfig, ApplicationInfoManager applicationInfoManager, @Autowired(required = false) ObjectProvider<HealthCheckHandler> healthCheckHandler) { return EurekaRegistration.builder(instanceConfig) .with(applicationInfoManager) .with(eurekaClient) .with(healthCheckHandler) .build(); } } //这里也是EurekaClient的配置，只是可刷新的 @Configuration @ConditionalOnRefreshScope protected static class RefreshableEurekaClientConfiguration { @Autowired private ApplicationContext context; @Autowired private AbstractDiscoveryClientOptionalArgs<?> optionalArgs; //注册Eureak客户端EurekaClient， @Lazy 懒初始化，该bean被用到的时候会被创建 //EurekaClient有一个实现 DiscoveryClient这个实现 是eureka-client:1.9.3包里面的，是Euraek的服务发现的核心实现 @Bean(destroyMethod = "shutdown") @ConditionalOnMissingBean(value = EurekaClient.class, search = SearchStrategy.CURRENT) @org.springframework.cloud.context.config.annotation.RefreshScope @Lazy public EurekaClient eurekaClient(ApplicationInfoManager manager, EurekaClientConfig config, EurekaInstanceConfig instance) { manager.getInfo(); // force initialization return new CloudEurekaClient(manager, config, this.optionalArgs, this.context); } //注册ApplicationInfoManager,它是InstanceInfo的管理器 @Bean @ConditionalOnMissingBean(value = ApplicationInfoManager.class, search = SearchStrategy.CURRENT) @org.springframework.cloud.context.config.annotation.RefreshScope @Lazy public ApplicationInfoManager eurekaApplicationInfoManager(EurekaInstanceConfig config) { //注意：这里的InstanceInfo被创建的状态是InstanceStatus.STARTING；后面在初始化的过程中会修改为 InstanceStatus.UP; InstanceInfo instanceInfo = new InstanceInfoFactory().create(config); return new ApplicationInfoManager(config, instanceInfo); } @Bean @org.springframework.cloud.context.config.annotation.RefreshScope @ConditionalOnBean(AutoServiceRegistrationProperties.class) @ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true) public EurekaRegistration eurekaRegistration(EurekaClient eurekaClient, CloudEurekaInstanceConfig instanceConfig, ApplicationInfoManager applicationInfoManager, @Autowired(required = false) ObjectProvider<HealthCheckHandler> healthCheckHandler) { return EurekaRegistration.builder(instanceConfig) .with(applicationInfoManager) .with(eurekaClient) .with(healthCheckHandler) .build(); } } ...省略... //健康指示器，用来管理服务的健康状况 @Configuration @ConditionalOnClass(Health.class) protected static class EurekaHealthIndicatorConfiguration { @Bean @ConditionalOnMissingBean @ConditionalOnEnabledHealthIndicator("eureka") public EurekaHealthIndicator eurekaHealthIndicator(EurekaClient eurekaClient, EurekaInstanceConfig instanceConfig, EurekaClientConfig clientConfig) { return new EurekaHealthIndicator(eurekaClient, instanceConfig, clientConfig); } }

总结一下：这里注册了很多对象比较重要的有： 1.EurekaClientConfigBean：这个类实现了netflix 的 EurekaClientConfig客户端配置接口，是对Eureka客户端的配置对象，即我们在配置文件中配置的eureka.client节点下的配置都会被封装到该对象中。

2.EurekaInstanceConfigBean: 该类实现了netflix的EurekaInstanceConfig接口，是的服务实例信息配置，ApplicationManager通过该接口用来构建InstanceConfig,比如我们在配置文件中配置的eureka.instance开头的配置就会配置到该对象中。

3.DiscoveryClient：注册了DiscoveryClient服务发现客户端接口，默认实现是EurekaDiscoveryClient。这个类来源于spring-cloud-common.2.0.1.jar 这个包，这个包是springcloud的抽象包的公共包里面制定了一系列公共的API，而DiscoveryClient中包含了服务发现的基本公共方法

4.配置了一些客户端自动注册组件

  • EurekaServiceRegistry： Eureak服务注册器，他是SpringCloud 在Netflix标准上拓展出来的，提供了服务注册，取消注册, 关闭服务，设置服务状态，获取服务状态方法
  • EurekaRegistration： 它是Eureka实例的服务注册信息对象,开启自动注册时，该对象才会被注册，EurekaServiceRegistry负责服务注册，EurekaRegistration存放服务注册信息
  • EurekaAutoServiceRegistration： Eureka服务自动注册器，用来注册EurekaRegistration信息

5.EurekaClient：这里通过CloudEurekaClient来实例化，他是用来和EureakServer进行交互，是netflix提供的接口类，它还有个比较重要的实现DiscoveryClient主要负责服务发现，这个是与注册中心EureakServer交互的最核心的实现，包括服务注册，注册表拉取，服务续约等等功能都在里面提现。需要注意的是该Bean在注册的时候使用了@Lazy进行延迟创建

6.ApplicationInfoManager：这个类是用来管理实例注册信息InstanceInfo的，其中还包括了对实例状的态监听机制

7.EurekaHealthIndicator：这个是用作服务的健康检查的，以及提供了获取服务状态，以及获取Applications服务注册表等方法

2.EurekaAutoServiceRegistration:Eureaka自动注册

在spring-cloud-commons-2.0.1.RELEASE.jarSpringCloud公共包中/META-INF/spring.factories配置文件中有AutoServiceRegistrationAutoConfiguration自动配置类，当应用启动SpringBoot会扫描到该自动配置类，然后注册到Spring容器

# AutoConfiguration
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.cloud.client.serviceregistry.ServiceRegistryAutoConfiguration,\
org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration

ServiceRegistryAutoConfiguration是配置注册的服务的端点信息，可通过端点 “/service-registry”查看到服务注册情况

@Configuration public class ServiceRegistryAutoConfiguration { @ConditionalOnBean(ServiceRegistry.class) @ConditionalOnClass(Endpoint.class) protected class ServiceRegistryEndpointConfiguration { @Autowired(required = false) private Registration registration; @Bean @ConditionalOnEnabledEndpoint public ServiceRegistryEndpoint serviceRegistryEndpoint(ServiceRegistry serviceRegistry) { ServiceRegistryEndpoint endpoint = new ServiceRegistryEndpoint(serviceRegistry); endpoint.setRegistration(registration); return endpoint; } } } ------------------------------------------------------------------------ //查看注册服务端点 @Endpoint(id = "service-registry") public class ServiceRegistryEndpoint { private final ServiceRegistry serviceRegistry; private Registration registration; public ServiceRegistryEndpoint(ServiceRegistry<?> serviceRegistry) { this.serviceRegistry = serviceRegistry; } public void setRegistration(Registration registration) { this.registration = registration; } @WriteOperation public ResponseEntity<?> setStatus(String status) { Assert.notNull(status, "status may not by null"); if (this.registration == null) { return ResponseEntity.status(HttpStatus.NOT_FOUND).body("no registration found"); } this.serviceRegistry.setStatus(this.registration, status); return ResponseEntity.ok().build(); } //获取服务状态 @ReadOperation public ResponseEntity getStatus() { if (this.registration == null) { return ResponseEntity.status(HttpStatus.NOT_FOUND).body("no registration found"); } return ResponseEntity.ok().body(this.serviceRegistry.getStatus(this.registration)); } }

AutoServiceRegistrationAutoConfiguration是开启服务自动注册其中注入了AutoServiceRegistration确保该类会被注册，源码如下

@Configuration @Import(AutoServiceRegistrationConfiguration.class) @ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true) public class AutoServiceRegistrationAutoConfiguration { @Autowired(required = false) private AutoServiceRegistration autoServiceRegistration; @Autowired private AutoServiceRegistrationProperties properties; @PostConstruct protected void init() { if (autoServiceRegistration == null && this.properties.isFailFast()) { throw new IllegalStateException("Auto Service Registration has been requested, but there is no AutoServiceRegistration bean"); } } }

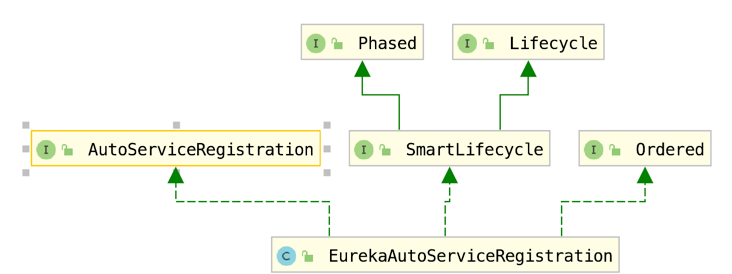

EurekaAutoServiceRegistration是Eureka的自动注册器，在EurekaClientAutoConfiguration中对EurekaAutoServiceRegistration做了Bean的定义，当开启spring.cloud.service-registry.auto-registration.enabled=true(默认)该Bean注册起效 ， 它是AutoServiceRegistration的实现 在这里插入图片描述

EurekaAutoServiceRegistration 源码如下：

//自动注册器 public class EurekaAutoServiceRegistration implements AutoServiceRegistration, SmartLifecycle, Ordered { private static final Log log = LogFactory.getLog(EurekaAutoServiceRegistration.class); private AtomicBoolean running = new AtomicBoolean(false); private int order = 0; private AtomicInteger port = new AtomicInteger(0); private ApplicationContext context; //服务注册器 private EurekaServiceRegistry serviceRegistry; //服务注册信息登记 private EurekaRegistration registration; public EurekaAutoServiceRegistration(ApplicationContext context, EurekaServiceRegistry serviceRegistry, EurekaRegistration registration) { this.context = context; this.serviceRegistry = serviceRegistry; this.registration = registration; } //开启服务注册 @Override public void start() { // only set the port if the nonSecurePort or securePort is 0 and this.port != 0 if (this.port.get() != 0) { if (this.registration.getNonSecurePort() == 0) { this.registration.setNonSecurePort(this.port.get()); } if (this.registration.getSecurePort() == 0 && this.registration.isSecure()) { this.registration.setSecurePort(this.port.get()); } } // only initialize if nonSecurePort is greater than 0 and it isn't already running // because of containerPortInitializer below if (!this.running.get() && this.registration.getNonSecurePort() > 0) { //调用服务注册器进行服务注册 this.serviceRegistry.register(this.registration); //发布一个服务注册事件 this.context.publishEvent( new InstanceRegisteredEvent<>(this, this.registration.getInstanceConfig())); this.running.set(true); } } @Override public void stop() { //服务停止，取消服务注册 this.serviceRegistry.deregister(this.registration); this.running.set(false); } @Override public boolean isRunning() { //获取服务状态是否运行 return this.running.get(); } @Override public int getPhase() { return 0; } @Override public boolean isAutoStartup() { return true; } //停止服务 @Override public void stop(Runnable callback) { stop(); callback.run(); } @Override public int getOrder() { return this.order; } //监听web启动完成事件，执行start()方法开启服务注册 @EventListener(WebServerInitializedEvent.class) public void onApplicationEvent(WebServerInitializedEvent event) { // TODO: take SSL into account int localPort = event.getWebServer().getPort(); if (this.port.get() == 0) { log.info("Updating port to " + localPort); this.port.compareAndSet(0, localPort); start(); } } //监听应用关闭事件，执行stop()方法 @EventListener(ContextClosedEvent.class) public void onApplicationEvent(ContextClosedEvent event) { if( event.getApplicationContext() == context ) { stop(); } } }

EurekaAutoServiceRegistration监听了应用启动事件，调用EurekaServiceRegistry.register进行服务注册，同时监听应用关闭事件，调用EurekaServiceRegistry.deregister取消服务注册

3.EurekaServiceRegistry:服务注册器

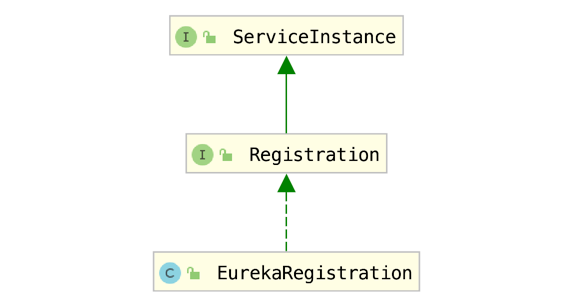

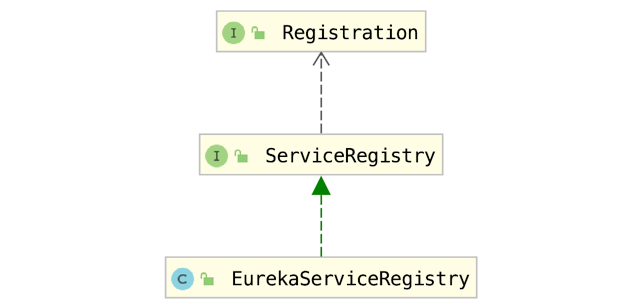

EurekaServiceRegistry是Eureak服务注册器，他是SpringCloud 在Netflix标准ServiceRegistry上拓展出来的，提供了服务注册，取消注册, 关闭服务，设置服务状态，获取服务状态方法 在这里插入图片描述 ServiceRegistry是EureakaServiceRegistry的接口，他是Netflix的服务发现抽象，ServiceRegistry需要依赖EurekaRegistration,EurekaRegistration是ServiceInstance的实现它约定了服务发现的实例应用的通用的信息 在这里插入图片描述

在应用启动时，EurekaAutoServiceRegistration会监听应用启动完成事件，在start()方法中调用，EureakaServiceRegistry.register方法开始服务注册，源码如下

//服务注册 public class EurekaServiceRegistry implements ServiceRegistry<EurekaRegistration> { private static final Log log = LogFactory.getLog(EurekaServiceRegistry.class); //注册方法，注册EurekaRegistration @Override public void register(EurekaRegistration reg) { //初始化客户端，该方法会触发 EurekaClient 的创建 maybeInitializeClient(reg); if (log.isInfoEnabled()) { log.info("Registering application " + reg.getInstanceConfig().getAppname() + " with eureka with status " + reg.getInstanceConfig().getInitialStatus()); } //初始化客户端状态,把InstanceStatus设置为 InstanceStatus.UP; reg.getApplicationInfoManager() .setInstanceStatus(reg.getInstanceConfig().getInitialStatus()); //注册健康检查处理器 reg.getHealthCheckHandler().ifAvailable(healthCheckHandler -> reg.getEurekaClient().registerHealthCheck(healthCheckHandler)); } //初始化客户端，reg.getEurekaClient()会触发EureakClient(DiscoveryClient)的初始化 private void maybeInitializeClient(EurekaRegistration reg) { // force initialization of possibly scoped proxies reg.getApplicationInfoManager().getInfo(); //初始化Eurak客户端 reg.getEurekaClient().getApplications(); } //取消注册，设置服务状态为down @Override public void deregister(EurekaRegistration reg) { if (reg.getApplicationInfoManager().getInfo() != null) { if (log.isInfoEnabled()) { log.info("Unregistering application " + reg.getInstanceConfig().getAppname() + " with eureka with status DOWN"); } reg.getApplicationInfoManager().setInstanceStatus(InstanceInfo.InstanceStatus.DOWN); //shutdown of eureka client should happen with EurekaRegistration.close() //auto registration will create a bean which will be properly disposed //manual registrations will need to call close() } } //设置服务注册状态 @Override public void setStatus(EurekaRegistration registration, String status) { InstanceInfo info = registration.getApplicationInfoManager().getInfo(); //TODO: howto deal with delete properly? if ("CANCEL_OVERRIDE".equalsIgnoreCase(status)) { registration.getEurekaClient().cancelOverrideStatus(info); return; } //TODO: howto deal with status types across discovery systems? InstanceInfo.InstanceStatus newStatus = InstanceInfo.InstanceStatus.toEnum(status); registration.getEurekaClient().setStatus(newStatus, info); } //获取服务注册状态 @Override public Object getStatus(EurekaRegistration registration) { String appname = registration.getInstanceConfig().getAppname(); String instanceId = registration.getInstanceConfig().getInstanceId(); InstanceInfo info = registration.getEurekaClient().getInstanceInfo(appname, instanceId); HashMap<String, Object> status = new HashMap<>(); if (info != null) { status.put("status", info.getStatus().toString()); status.put("overriddenStatus", info.getOverriddenStatus().toString()); } else { status.put("status", UNKNOWN.toString()); } return status; } public void close() { } }

EurekaServiceRegistry中register方法初始化了Eureka客户端，以及注册了健康检查处理器，在private void maybeInitializeClient(EurekaRegistration reg)方法中reg.getEurekaClient().getApplications();会触发在EurekaClientAutoConfiguration自动配置中对EureakClient的延迟创建，使用的EurekaClient的实现com.netflix.discovery.DiscoveryClient

4.DiscoveryClient:服务发现

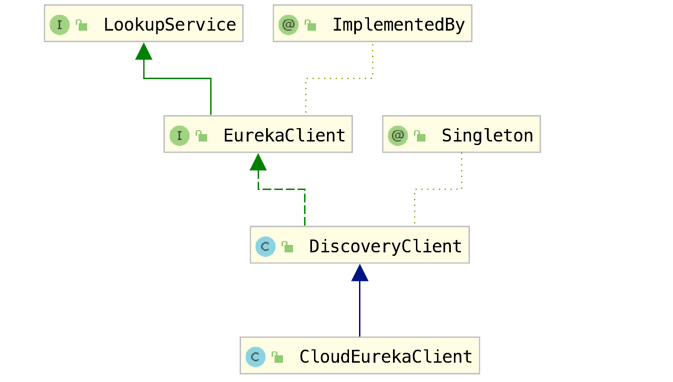

这个类来源于 eureka-client-19.3.jar这个包 ，DiscoveryClient这个类是用来和Eureak Server服务端做交互，通过程序的主入口类上的@EnableDiscoveryClient标签开启,该类在EurekaClientAutoConfiguration中被注册，该类的继承关系如下：

在这里插入图片描述 CloudEurekaClient实现了com.netflix.discovery.DiscoveryClient接口，DiscoveryClient实现了com.netflix.discovery.EurekaClient接口，

EurekaClient是Netflix提供的服务发现抽象的接口，DiscoveryClient是其默认实现，CloudEurekaClient是spring cloud的提供的，其中重写了onCacheRefreshed()方法，目的是在刷新本地注册表缓存之后用于使用ApplicationEventPublisher发布HeartbeatEvent事件。 com.netflix.discovery.shared.LookupService： 服务发现顶级接口，里面包含了服务查找方法

/**
 * Lookup service for finding active instances.
 * 用来查找活动的服务实例
 */ public interface LookupService<T> { /**
     根据应用名获取该名字对应的应用，Application中描述了该appName对应的多个应用实例
     */ Application getApplication(String appName); /**
    获取所有的应用注册列表，Applications是eureka server返回的所有注册信息
     */ Applications getApplications(); /**
    根据ID获取服务实例信息信息对象列表
     */ List<InstanceInfo> getInstancesById(String id); InstanceInfo getNextServerFromEureka(String virtualHostname, boolean secure); }

com.netflix.discovery.EurekaClient 这里接口也来源于com.netflix.discovery.EurekaClient.1.9.3.jar这个包，EurekaClient是DiscoverClient的接口，定义了服务发现的基本功能，如下：

  • 提供获取InstanceInfo 服务实例信息的功能（以不同的方式）

  • 提供获取本地服务数据（已知地区、自有AZ等）

  • 提供注册和访问客户端的healthcheck健康检查处理程序的能力

他的源码如下

/**
为当前服务实现DiscoveryClient定义一个简单的接口
 * Define a simple interface over the current DiscoveryClient implementation.
 *
 * This interface does NOT try to clean up the current client interface for eureka 1.x. Rather it tries
 * to provide an easier transition path from eureka 1.x to eureka 2.x.
EurekaClient API合同包括：

- 提供获取InstanceInfo 服务实例信息的功能（以不同的方式）

- 提供获取本地客户数据的能力（已知地区、自有AZ等）

- 提供注册和访问客户端的healthcheck处理程序的能力
 * EurekaClient API contracts are:
 *  - provide the ability to get InstanceInfo(s) (in various different ways)
 *  - provide the ability to get data about the local Client (known regions, own AZ etc)
 *  - provide the ability to register and access the healthcheck handler for the client
 *
 * @author David Liu
 */ @ImplementedBy(DiscoveryClient.class) //实现于DiscoveryClient public interface EurekaClient extends LookupService { // ======================== // getters for InstanceInfo // ======================== /**
    根据region地区获取服务列表Applications
     */ public Applications getApplicationsForARegion(@Nullable String region); /**
     根据服务注册地址，返回Applications
     */ public Applications getApplications(String serviceUrl); /**
     根据地址获取服务实例信息列表
     */ public List<InstanceInfo> getInstancesByVipAddress(String vipAddress, boolean secure); /** 获取服务的远程注册状态 ：InstanceStatus是用来描述服务注册状态的，
    状态有：UP，DOWN，STARTING，OUT_OF_SERVICE，UNKNOWN
     */ public InstanceInfo.InstanceStatus getInstanceRemoteStatus(); ...省略一些方法.. /**
     注册健康检查回调处理器
     */ @Deprecated public void registerHealthCheckCallback(HealthCheckCallback callback); /**
     注册健康检查处理器
     */ public void registerHealthCheck(HealthCheckHandler healthCheckHandler); ...省略... //注册eureak监听器，监听eureka内部状态变化 public void registerEventListener(EurekaEventListener eventListener); /**
     Eureak客户端down机，从Eureak服务端取消服务注册
     */ public void shutdown(); ...省略...

该接口是Eureak服务发现接口，在LookupService的基础上扩展，主要定义方法有：

  • 获取Applications服务列表
  • 获取InstanceInfo服务实例信息
  • 获取服务的远程状态（UP，DOWN，STARTING，OUT_OF_SERVICE，UNKNOWN）
  • 注册健康检查回调处理器
  • 注册健康检查处理器
  • 注册eureka状态监听器，监听eureka的状态变化
  • Eureak客户端down机，从Eureak服务端取消服务注册

com.netflix.discovery.DiscoveryClient 服务发现核心实现与Eureka Server交互，功能包括：

  • Eureka客户端负责向Eureka服务器注册实例
  • 与Eureak服务器续租
  • 关闭期间,从Eureka服务器取消租约
  • 查询在Eureka服务器上注册的服务/实例列表
5.总结

这里总结一个Eureak的启动流程

  1. 当程序启动,SpringBoot开启自动配置，EurekaClientAutoConfiguration Eureka客户端自动配置,和EurekaAutoServiceRegistration Eureka自动注册启动
  2. EurekaClientAutoConfiguration进行一些列组件的注册，包括对DiscoverClient服务发现客户端的组合，对EurekaServiceRegistry服务注册器的注册
  3. EurekaAutoServiceRegistration监听Web程序启动，调用EurekaServiceRegistry进行服务注册
  4. EurekaServiceRegistry是服务注册器，提供了服务注册，取消注册等方法，其中对DiscoverClient进行初始化，并注册健康检查处理器
  5. 5.DiscoveryClient服务发现客户端，负责与Eureka服务端进行交互

在这里插入图片描述
