【高级UI】【012】FontMetric详解，Android文字居中绘制

文字绘制和图片绘制的区别

我们绘制一张图片，一条直线，或一个矩形时

基本上确定上下左右的坐标，就确定了图片或几何元素的位置

但字体元素，由于其特殊的格式，并非从左往右，从上到下直接绘制的

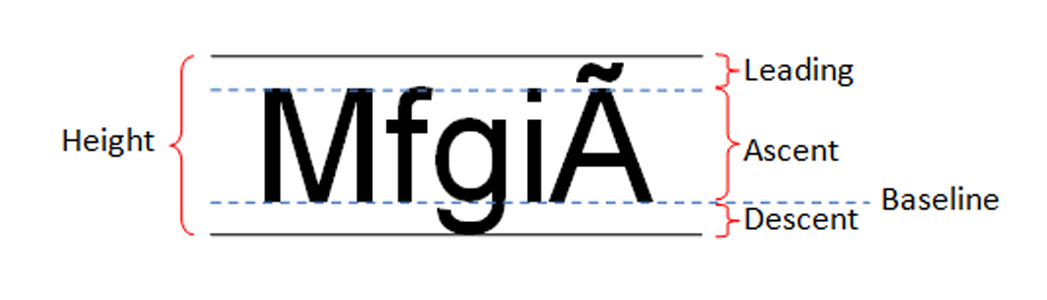

字体格式的专业规范

Android中的FontMetric

Android中的FontMetric即是对以上字体规范的一种实现

在Android中，文字的绘制是从baseline位置开始的，它的y值为0

我们来看看FontMetric中各个字段代表的含义

• baseline，基线，文字绘制的起始位置
• ascent，上倾，基线到文字最高处的距离，为负数
• descent，下倾斜，基线到文字最低处的距离
• leading，行距，与上行文字的间隔
• top，文字最高处坐标，等于ascent
• bottom，文字最低处坐标，等于descent
• height，文字总高度，ascent、descent、等于leading绝对值的总和

Android居中绘制文字

由于文字是从baseline开始绘制的，而一般我们是不知道baseline的值的，就需要自己去计算

	height = baseline + descent - ascent + leading;  //行高，文字包括行距的高度

	middle = baseline + ascent/2;  //以ascent的中心作为文字中心，比较美观

当我们知道了文字顶部坐标，底部坐标，或中间坐标时

根据以上两个公式，就可以推算出baseline的值，很简单

工具类封装

以下是常用方法的封装，但这个工具类有点旧了，并非严格准确

正确的方法是按以上两个公式推算，偷懒的就用下面的工具类吧

	import android.graphics.Canvas;
	import android.graphics.LinearGradient;
	import android.graphics.Paint;
	import android.graphics.Rect;
	import android.graphics.Shader;
	import android.text.TextPaint;
	import android.view.Gravity;
	import android.widget.TextView;

	import androidx.annotation.ColorRes;

	import com.easing.commons.android.helper.exception.BizException;
	import com.easing.commons.android.value.color.Colors;

	@SuppressWarnings("all")
	public class CanvasPainter {

	    //获取文字宽度
	    public static float getTextWidth(Paint paint, String text) {
	        float width = paint.measureText(text);
	        return width;
	    }

	    //获取文字高度
	    public static float getTextHeight(Paint paint) {
	        float height = (paint.getTextSize() + 0.00000007F) / 0.7535F;
	        return height;
	    }

	    //获取文字水平中心位置
	    public static float getTextCenterX(TextView textView, String text) {
	        TextPaint paint = textView.getPaint();
	        float textWidth = getTextWidth(paint, text);
	        int gravity = textView.getGravity();
	        if ((gravity & Gravity.LEFT) == Gravity.LEFT)
	            return textView.getPaddingLeft() + textWidth / 2;
	        if ((gravity & Gravity.RIGHT) == Gravity.RIGHT)
	            return textView.getMeasuredWidth() - textView.getPaddingRight() - textWidth / 2;
	        if ((gravity & Gravity.CENTER_HORIZONTAL) == Gravity.CENTER_HORIZONTAL)
	            return textView.getPaddingLeft() + (textView.getMeasuredWidth() - textView.getPaddingLeft() - textView.getPaddingRight()) / 2;
	        throw BizException.of("unknown horizontal alignment");
	    }

	    //获取文字竖直中心位置
	    public static float getTextCenterY(TextView textView) {
	        TextPaint paint = textView.getPaint();
	        float textHeight = getTextHeight(paint);
	        int gravity = textView.getGravity();
	        if ((gravity & Gravity.TOP) == Gravity.TOP)
	            return textView.getPaddingTop() + textHeight / 2;
	        if ((gravity & Gravity.BOTTOM) == Gravity.BOTTOM)
	            return textView.getMeasuredHeight() - textView.getPaddingBottom() - textHeight / 2;
	        if ((gravity & Gravity.CENTER_VERTICAL) == Gravity.CENTER_VERTICAL)
	            return textView.getPaddingTop() + (textView.getMeasuredHeight() - textView.getPaddingTop() - textView.getPaddingBottom()) / 2;
	        throw BizException.of("unknown vertical alignment");
	    }

	    //从中间开始绘制文字
	    public static void drawTextFromCenter(Canvas canvas, Paint paint, String text, Number centerX, Number centerY) {
	        float textWidth = getTextWidth(paint, text);
	        Paint.FontMetrics metrics = paint.getFontMetrics();
	        canvas.drawText(text, 0, text.length(), centerX.floatValue() - textWidth / 2, centerY.floatValue() - (metrics.ascent + metrics.descent) / 2, paint);
	    }

	    //从左下角开始绘制文字
	    public static void drawTextFromLeftBottom(Canvas canvas, Paint paint, String text, Number left, Number bottom) {
	        float textHeight = getTextHeight(paint);
	        Paint.FontMetrics metrics = paint.getFontMetrics();
	        canvas.drawText(text, 0, text.length(), left.floatValue(), bottom.floatValue() - textHeight / 2 - (metrics.ascent + metrics.descent) / 2, paint);
	    }

	    //从左上角开始绘制文字
	    public static void drawTextFromLeftTop(Canvas canvas, Paint paint, String text, Number left, Number top) {
	        float textHeight = getTextHeight(paint);
	        Paint.FontMetrics metrics = paint.getFontMetrics();
	        canvas.drawText(text, 0, text.length(), left.floatValue(), top.floatValue() + textHeight / 2 - (metrics.ascent + metrics.descent) / 2, paint);
	    }

	    //从顶部中间开始绘制文字
	    public static void drawTextFromTopCenter(Canvas canvas, Paint paint, String text, Number centerX, Number top) {
	        float textWidth = getTextWidth(paint, text);
	        float textHeight = getTextHeight(paint);
	        Paint.FontMetrics metrics = paint.getFontMetrics();
	        canvas.drawText(text, 0, text.length(), centerX.floatValue() - textWidth / 2, top.floatValue() + textHeight / 2 - (metrics.ascent + metrics.descent) / 2, paint);
	    }

	    //从底部中间开始绘制文字
	    public static void drawTextFromBottomCenter(Canvas canvas, Paint paint, String text, Number centerX, Number bottom) {
	        float textWidth = getTextWidth(paint, text);
	        float textHeight = getTextHeight(paint);
	        Paint.FontMetrics metrics = paint.getFontMetrics();
	        canvas.drawText(text, 0, text.length(), centerX.floatValue() - textWidth / 2, bottom.floatValue() - textHeight / 2 - (metrics.ascent + metrics.descent) / 2, paint);
	    }

	    //画矩形色块
	    public static void drawColorRect(Canvas canvas, Number left, Number top, Number right, Number bottom, @ColorRes int colorId) {
	        canvas.save();
	        canvas.clipRect(new Rect(left.intValue(), top.intValue(), right.intValue(), bottom.intValue()));
	        canvas.drawColor(Colors.getColor(colorId));
	        canvas.restore();
	    }

	    //画直线
	    public static void drawLine(Canvas canvas, Paint paint, Number left, Number top, Number right, Number bottom) {
	        canvas.drawLine(left.intValue(), top.intValue(), right.intValue(), bottom.intValue(), paint);
	    }

	    //画矩形
	    public static void drawRect(Canvas canvas, Paint paint, Number left, Number top, Number right, Number bottom) {
	        canvas.drawRect(left.intValue(), top.intValue(), right.intValue(), bottom.intValue(), paint);
	    }
	}
