2016年嵌入式第七届省赛真题解析



串口发送数据会修改显示数组的值：原因暂未找到！！！

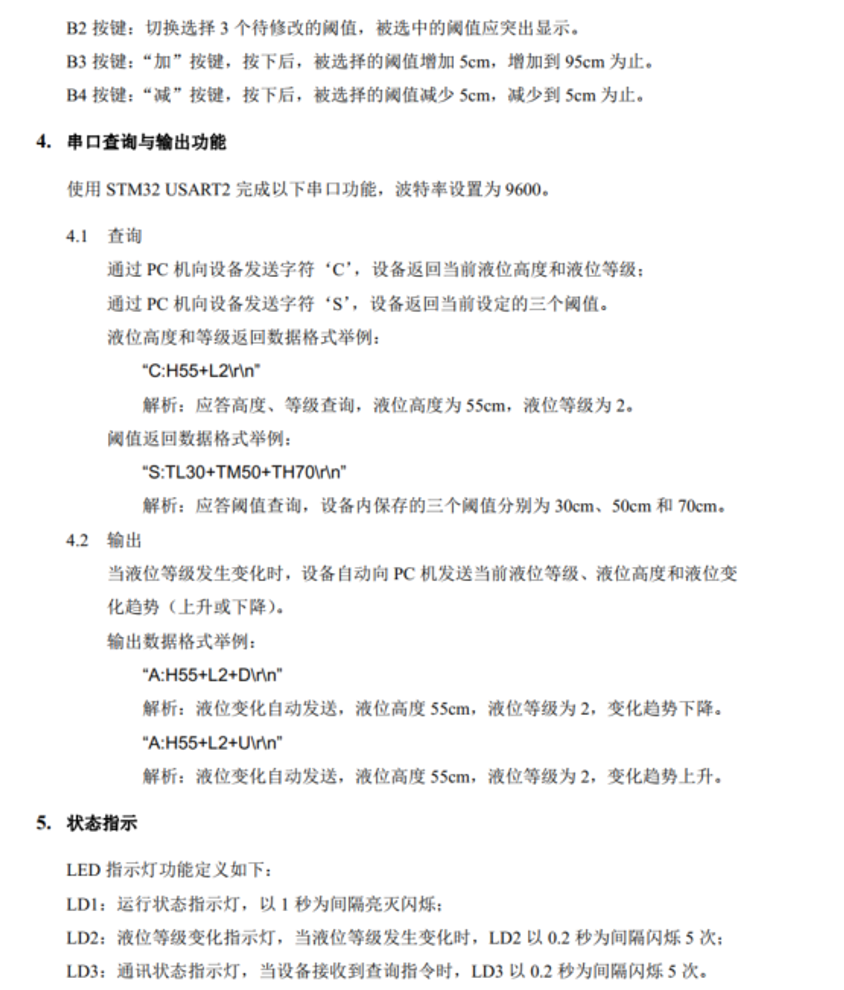

一、题目



二、分析

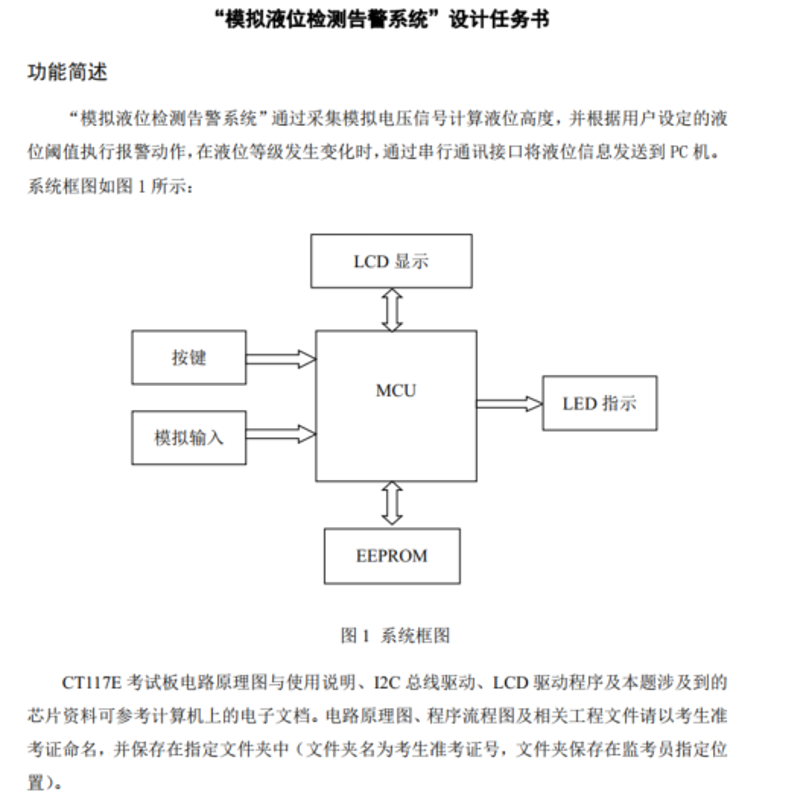

 题目要求做一个液位检测告警系统，这里将将题目分为四大部分显示界面，设置界面，串口收发，LED灯指示

1.界面

 由于题目用到了按键切换不同的界面，所以先做界面与按键切换这一部分。



 ​

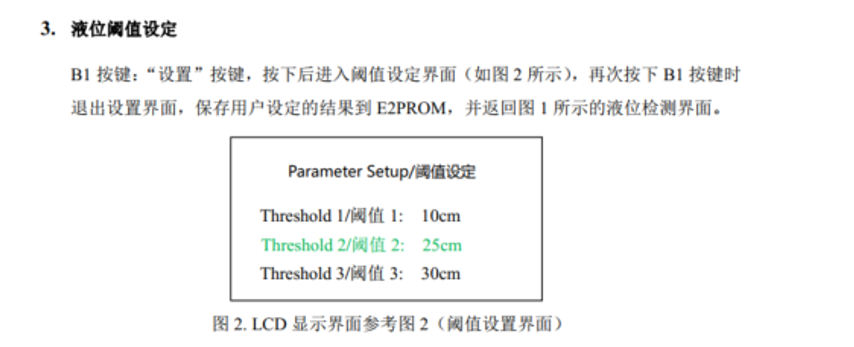

界面的控制用变量lcd_ctrl控制：若变量等于0x00则表示显示界面；若变量为0x1_，则为设置界面，并且0x10设置阈值1，0x11设置阈值2，0x12设置阈值3

if(unKey_Down == 1)  // 界面切换
	{
		if(lcd_ctrl == 0x00)
		{
			LCD_Clear(White);
			lcd_ctrl = 0x10;
		}
		else
		{
			LCD_Clear(White);lcd_ctrl = 0x00;
            LCD_Clear(White);lcd_ctrl = 0x00;
			iic_24c02_write(high_level_ctrl, 0, 3); //写
			high_level_ctrl[0] = high_level_disp[0];  //将显示值(进行加减)赋给控制值
			high_level_ctrl[1] = high_level_disp[1];
			high_level_ctrl[2] = high_level_disp[2];

		}
	}
	if(unKey_Down == 2 && lcd_ctrl>>4 ==0x1)  // 选择，默认第一行：0x10
	{
		if(lcd_ctrl>= 0x12) lcd_ctrl = 0x10;
		else lcd_ctrl++;
	}

软件滤波：采用中值滤波，即在在采集ADC数据时，总共采取10次，结果求起平均值即可。

//中值滤波
	for(count=0;count=95) high_level_disp[2] = 95;
			else if(high_level_disp[2]>high_level_disp[1])high_level_disp[2] += 5;
		}
	}

	if(unKey_Down == 4)  // 减
	{
		if(lcd_ctrl == 0x10)
		{
			if(high_level_disp[0]
