ZYNQ中断过程分析

以下面代码为例

#include
#include "platform.h"
#include "xscugic.h"
#include "xil_exception.h"

#define INT_CFG0_OFFSET 0x00000C00

// Parameter definitions
#define SW1_INT_ID              61
#define SW2_INT_ID              62
#define SW3_INT_ID              63
#define INTC_DEVICE_ID          XPAR_PS7_SCUGIC_0_DEVICE_ID
#define INT_TYPE_RISING_EDGE    0x03
#define INT_TYPE_HIGHLEVEL      0x01
#define INT_TYPE_MASK           0x03

static XScuGic INTCInst;

static void SW_intr_Handler(void *param);
static int InterruptSystemSetup(XScuGic *XScuGicInstancePtr);
static int IntcInitFunction(u16 DeviceId);

static void SW_intr_Handler(void *param)
{
    int sw_id = (int)param;
    printf("SW%d int\n\r", sw_id);
}

void IntcTypeSetup(XScuGic *InstancePtr, int intId, int intType)
{
    int mask;

    intType &= INT_TYPE_MASK;
    mask = XScuGic_DistReadReg(InstancePtr, INT_CFG0_OFFSET + (intId/16)*4);
    mask &= ~(INT_TYPE_MASK Config->HandlerTable[SW1_INT_ID].CallBackRef=1

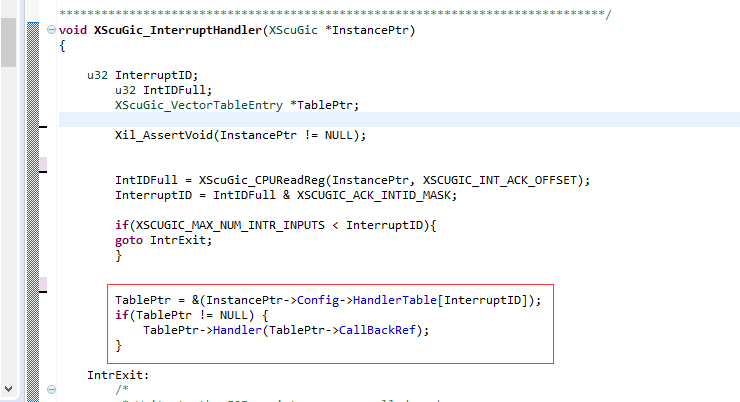

再结合**XScuGic_InterruptHandler(&INTCInst)**的源码： 可知，最终执行了 SW_intr_Handler(1)
