Prometheus + Grafana + AlertManger 相关整理

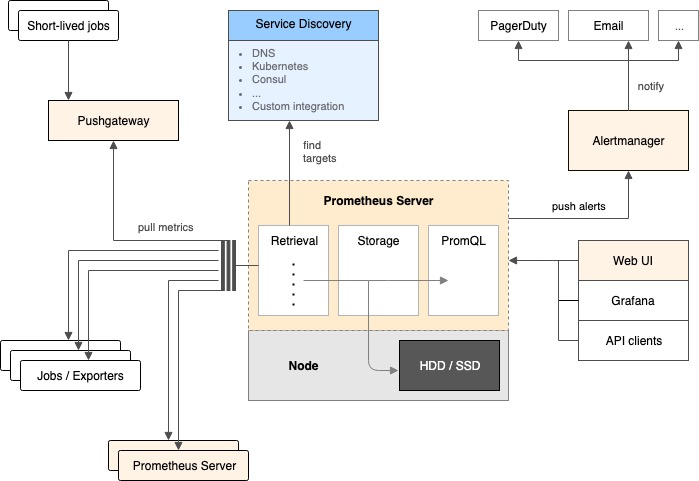

01 整体流程图

02 相关资料

可参考的教程：

• 环境搭建：《Prometheus+Grafana+Alertmanager实现告警推送教程图文详解》
• Grafana面板使用：《Grafana 使用表格面板进行数据可视化》

相关的下载：

• prometheus（国内镜像）：https://mirrors.tuna.tsinghua.edu.cn/github-release/prometheus/prometheus/2.34.0%20_%202022-03-15/prometheus-2.34.0.linux-amd64.tar.gz
• pushgateway（国外镜像，较慢）：https://github.com/prometheus/pushgateway/releases/download/v1.4.2/pushgateway-1.4.2.linux-amd64.tar.gz
• node-exporter（国外镜像，较慢）: https://github.com/prometheus/node_exporter/releases/download/v1.3.1/node_exporter-1.3.1.linux-amd64.tar.gz
• Grafana(国内镜像)：https://repo.huaweicloud.com/grafana/8.4.7/grafana-enterprise-8.4.7.linux-amd64.tar.gz
• Alertmanager（国外镜像，较慢）：https://github.com/prometheus/alertmanager/releases/download/v0.24.0/alertmanager-0.24.0.linux-amd64.tar.gz

03 相关配置 3.1 prometheus.yml

global:
  scrape_interval: 15s
  evaluation_interval: 15s

alerting:
  alertmanagers:
  - static_configs:
    - targets:
       - localhost:9093

rule_files:
  - "/opt/prometheus_env/prometheus-2.34.0.linux-amd64/alarm_rules.yml"

scrape_configs:
  - job_name: 'prometheus'
    static_configs:
      - targets: ['localhost:9090']
        labels:
          instance: 'prometheus'
  - job_name: 'linux'
    static_configs:
      - targets: ['localhost:9100']
        labels:
          instance: 'localhost'
  - job_name: 'pushgateway'
    static_configs:
      - targets: ['localhost:9091']
        labels:
          instance: 'pushgateway'

3.2 alarm_rules.yml

groups:
- name: node
  rules:
  - alert: server_status
    expr: up{} == 0
    for: 15s
    annotations:
      summary: "机器{{ $labels.instance }} 挂了"
      description: "请立即查看问题!"

3.3 alertmanager.yml

global:
  resolve_timeout: 5m
  smtp_smarthost: 'smtp.exmail.qq.com:465' # 定义163邮箱服务器端
  smtp_from: '您的qq邮箱账号'  #来自哪个邮箱发的
  smtp_auth_username: '您的qq邮箱账号' 邮箱验证
  smtp_auth_password: '邮箱密码'   # 邮箱授权码，不是登录密码
  smtp_require_tls: false   # 是否启用tls

route:
  group_by: ['alertname']
  group_wait: 10s
  group_interval: 10s
  repeat_interval: 3m  # 发送告警后间隔多久再次发送，减少发送邮件频率
  receiver: 'mail'    #发送的告警媒体

receivers:
- name: 'mail'        # 接收者配置，这里要与接收媒体一致
  email_configs:
  - to: '接收人的qq邮箱' #发送给谁的邮箱，多个人多行列出
#inhibit_rules:
#  - source_match:
#      severity: 'critical'
#    target_match:
#      severity: 'warning'
#    equal: ['alertname', 'dev', 'instance']

04 systemctl脚本 4.1 配置

cd /usr/lib/systemd/system

① pushgateway.service文件，内容如下：

[Unit]
Description=Prometheus Push Gateway
After=network.target

[Service]
ExecStart=/opt/prometheus_env/pushgateway-1.4.2.linux-amd64/pushgateway

User=root
[Install]
WantedBy=multi-user.target

② node_exporter.service文件，内容如下：

[Unit]
Description=Prometheus Node Exporter
After=network.target

[Service]
ExecStart=/opt/prometheus_env/node_exporter-1.3.1.linux-amd64/node_exporter

User=root
[Install]
WantedBy=multi-user.target

③ prometheus.service文件，内容如下：

[Unit]
Description=Prometheus Service
After=network.target

[Service]
ExecStart=/opt/prometheus_env/prometheus-2.34.0.linux-amd64/prometheus \
--config.file=/opt/prometheus_env/prometheus-2.34.0.linux-amd64/prometheus.yml \
--web.read-timeout=5m  \
--web.max-connections=10 \
--storage.tsdb.retention=15d \
--storage.tsdb.path=/prometheus/data \
--query.max-concurrency=20 \
--query.timeout=2m

User=root
[Install]
WantedBy=multi-user.target

④ grafana.service文件，内容如下：

[Unit]
Description=Grafana
After=network.target

[Service]
ExecStart=/opt/prometheus_env/grafana-8.4.7/bin/grafana-server \
 --config=/opt/prometheus_env/grafana-8.4.7/conf/defaults.ini \
 --homepath=/opt/prometheus_env/grafana-8.4.7

[Install]
WantedBy=multi-user.target

⑤ alertmanager.service文件，内容如下：

[Unit]
Description=Prometheus alertmanager
After=network.target

[Service]
ExecStart=/opt/prometheus_env/alertmanager-0.24.0.linux-amd64/alertmanager \
--storage.path=/opt/prometheus_env/alertmanager-0.24.0.linux-amd64/data \
--config.file=/opt/prometheus_env/alertmanager-0.24.0.linux-amd64/alertmanager.yml

User=root
[Install]
WantedBy=multi-user.target

4.2 启动

重载配置：

systemctl daemon-reload

开启服务：

systemctl start pushgateway
systemctl start node_exporter
systemctl start prometheus
systemctl start grafana
systemctl start alertmanager

设置开机启动：

systemctl enable pushgateway
systemctl enable node_exporter
systemctl enable prometheus
systemctl enable grafana
systemctl enable alertmanager

查看服务状态:

systemctl status pushgateway

05 其它命令

开启端口，能被浏览器访问（例如开启：3000）

firewall-cmd --zone=public --add-port=3000/tcp --permanent

重启防火墙：

firewall-cmd --reload

查看端口：

netstat -tunlp | grep 9090

查看进程：

ps -elf|grep promethues

模拟CPU升高：

for i in `seq 1 $(cat /proc/cpuinfo |grep "physical id" |wc -l)`; do dd if=/dev/zero of=/dev/null & done

## top命令去查询进程并杀掉 !
